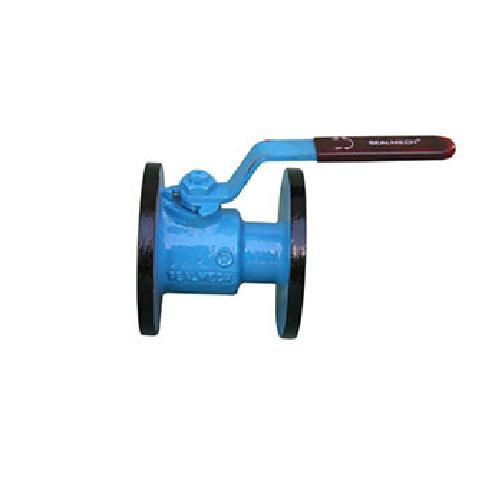

SEALMECH 2 inch Two Piece Ball Valves Flanged

SEALMECH offer Floating, Tunion Mounted Ball Valves in Single Piece, Two Piece & Three Piece design construction to suit wide range of application and pressure rating up to 800 Class in reduce & full p...

SEALMECH offer Floating, Tunion Mounted Ball Valves in Single Piece, Two Piece & Three Piece design construction to suit wide range of application and pressure rating up to 800 Class in reduce & full port construction. SEALMECH high superior quality Ball Valves advanced features such as Anti - Static devices, leak proof multi seal system, Blow out proof stem operate the valve safely even at high differential pressure, and lower operating torques due to high spherocity & smooth surface finish of ball. Electro-Polished, Buff Finish & Ultra clean valve also can be provided for Food & Pharmaceutical Industries on request. SEALMECH soft-seated Ball Valves gives Zero Leakage, Tight Shut-Off and easy smooth operation at temperature ranging from -200 to +2200 C. Design Standard: BS 5351 Inspection & Testing Standard: BS 5146 BS 6755-II/API 607/API 6FA For Fire Safe Design Face To Face: As Per ANSI B 16.10

End Connection: Flanged End To ANSI B 16.5/BS 10 Table Socket Weld End To ANSI B 16.11 Butt weld End To ANSI B 16.25 Screwed End To ANSI B 1.20.1 Size Range:1/2- 8" Pressure Rating150-800 psi
