Overload Protection Relays RMT-101 0-100A_0
Hover to zoom
Overload Protection Relays RMT-101 0-100A_0
Overload Protection Relays RMT-101 0-100A_1
Overload Protection Relays RMT-101 0-100A_2
Overload Protection Relays RMT-101 0-100A_3
Over Current Relay RMT-101.pdf
Need help?
Call +91 8291 211 421
(9:15 AM - 6:15 PM from Monday - Friday)

Overload Protection Relays RMT-101 0-100A

Copy link
-5%
₹6,819.04
/Piece
₹7,177.94
Inclusive of all taxes
Inclusive of all taxes
₹5,778.85 + ₹1,040.19 GST

Offers

Eligible for FREE SHIPPING. *T&C Apply
View
Eligible for FREE SHIPPING. *T&C Apply
View
Get GST invoice and save up to 18% on business purchases.
Avail trade credit through our lending partners. Know More
assured-delivery

Assured Delivery

assured delivery Assured Delivery
easy-order-cancellation

Easy Cancellation

easy-order-cancellation Easy cancellation
7_Days_return

7 Days Return

7 days return 7 Days return
Pay on Delivery

Pay on Delivery

Pay on Delivery Payment on Delivery
7 days return

Payment Protection

7 days return Payment managed by L&T-SuFin
assured delivery

Assured Delivery

easy-order-cancellation

Easy Cancellation

7 Days Return

7 Days Return

Pay on Delivery

Pay on Delivery

7 days return

Payment Protection

Specifications

Frequency

50Hz

Mounting Type

DIN rail

Number of Poles

2.0

Product Code

RMT-101

Tripping Current

0-100A

Tripping Current Setting

Variable

Response Time

150ms

Contact

1NO+1NC

Number of Phase

Single Phase

Voltage

240V AC

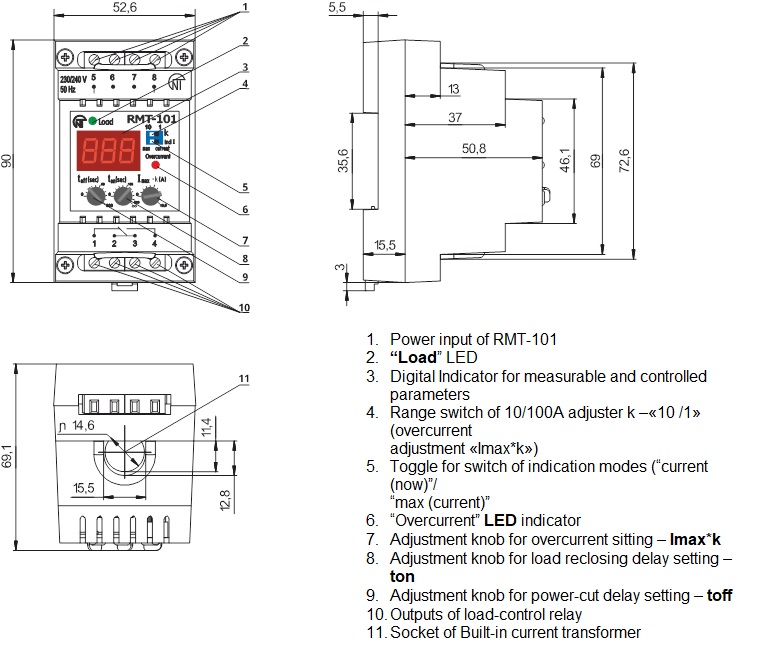

Dimension

52.6 x 90 x 69.1 mm

Material

Plastic

Operating Temperature

0 - 55 deg C

UNSPSC No.

39122330

Warranty

36 months

Description

RMT-101 current overload/over current relay is used for load rejection in case the current exceeds the set value between 0 and 100 amperes (settable). The device can be used in the following capacitie...

Read More

RMT-101 current overload/over current relay is used for load rejection in case the current exceeds the set value between 0 and 100 amperes (settable). The device can be used in the following capacities : Digital ammeter Current consumption limiting relay Priority load selection relay LEDs on the front panel of the relay indicate : Load state (on/off) Exceeding the maximum allowed load current threshold Depending on the work mode, the three digit seven-segment indicator indicates: Actual load current value Maximum current value after the last reset Value of the parameter being set Time remaining until load activation or rejection Presence of a reclosing blockage

Read less

RMT-101 current overload/over current relay is used for load rejection in case the current exceeds the set value between 0 and 100 amperes (settable). The device can be used in the following capacities : Digital ammeter Current consumption limiting relay Priority load selection relay LEDs on the front panel of the relay indicate : Load state (on/off) Exceeding the maximum allowed load current threshold Depending on the work mode, the three digit seven-segment indicator indicates: Actual load current value Maximum current value after the last reset Value of the parameter being set Time remaining until load activation or rejection Presence of a reclosing blockage

Read More Read less

Key Features

Current Overload Relay with built-in CT, Current Range (A): 0 – 10A or 0 – 100A selectable, 8A direct, Any load through contactors,

Current Overload Relay with built-in CT, Current Range (A): 0 – 10A or 0 – 100A selectable, 8A direct, Any load through contactors,

Read More Read less

Country of Origin

India

Over Current Relay RMT-101.pdf
