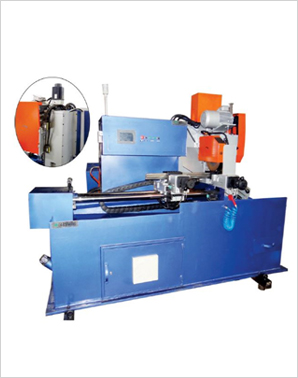

JET Machines 2 Axis AT-S Automatic Servo JE485 Metal Cutting Machines

JE 485 2-AXIS AT-S Automatic Servo Pipe / Bar Cutting Machine- A fully automatic 2-Axis Servo controlled machine which as both material feeding and cutter feeding source as servo motor. This fully auto...

JE 485 2-AXIS AT-S Automatic Servo Pipe / Bar Cutting Machine- A fully automatic 2-Axis Servo controlled machine which as both material feeding and cutter feeding source as servo motor. This fully automatic machine can create 1000 different cutting programs. Each programs will have information such as your given name, nos of pipes in bunch which will be cut, appropriate RPM for the same and defined cutter path with variable cutter travel such as T1, T2, T3 (slow cutter feed at larger load and faster cutting feed at lower load in one single or bunch of pipes). 5 different length combination (within 6 m), and applied cutter thickness. Once this data is created as programmed, then it just need to be recalled from the drop down when you change job. This reduces 80% of your changeover time, same from human errors and most important, archives best blade life and least cutter cycle time. Total length tolerance is maintained with +/- 0.10 mm.

Auto feed (Bunch Cutting) – Auto Clamping – Auto Cut piece Ejecting, PLC & Servo Control Machine, Length , Accuracy within +/- 0.10 mm. programmable up to 5 different lengths Main Motor 7.5HP
