HE HDRF-1560-E Rack Mounted RF Shield Test Box

Hardik Electronics specializes in design and development of Modular I/O Filter Plates with variety of connector options. This enables an easy to install and providing best shielding effectiveness of RF...

Hardik Electronics specializes in design and development of Modular I/O Filter Plates with variety of connector options. This enables an easy to install and providing best shielding effectiveness of RF Shield Box made by using Modular I/O Filter Plates. Higher Level Isolation up-to 12GHz for accurate performance.Standard Accessories Included with the Box :- 120MM 1300 RPM / 65 CFM - Ultra Silent 12VDC Cooling Fan with Universal Input Voltage Adapter(Option: 120MM 1800 RPM / 78 CFM - Ultra Silent 12VDC Cooling Fan – On Demand) Power strip with 5 Way Universal Folding Socket with Mains IDE Female Plug Socket to go with AC I/O Socket of Box. Fixed LED Light Mounted on the ceiling inside the Box with Power Supply Adapter. Wooden - Mica Base Plate inside the box as an insulated surface - to place DUT and other units inside the box. Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.

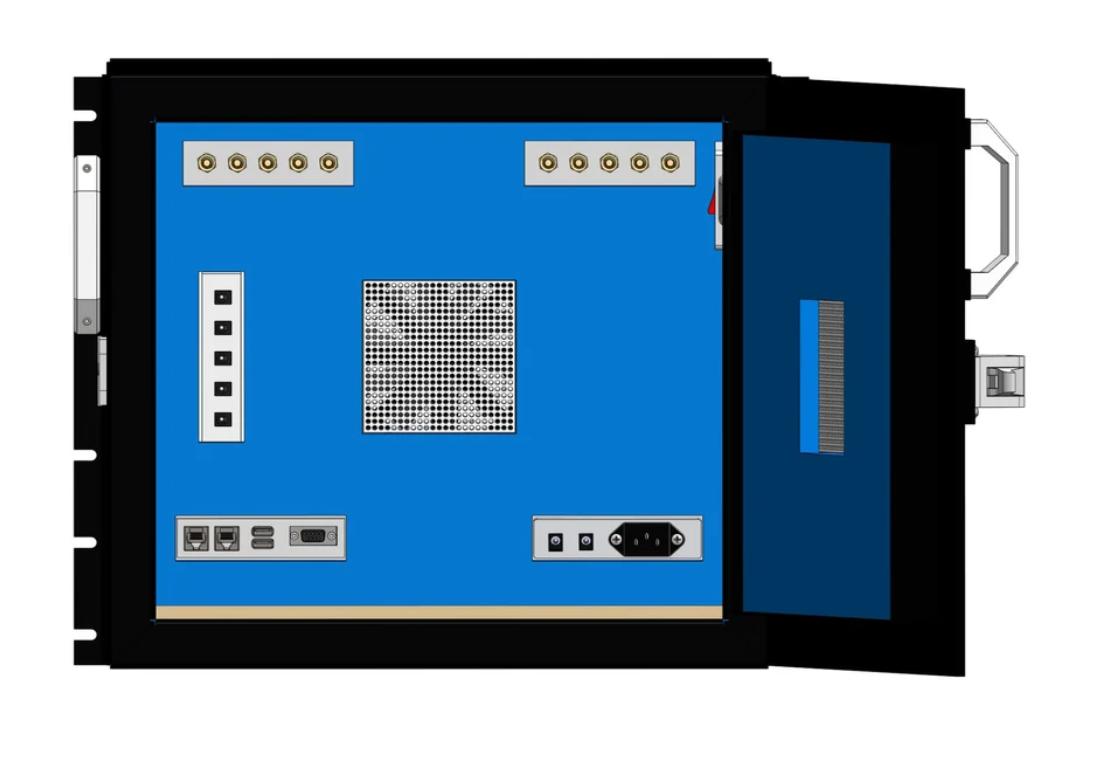

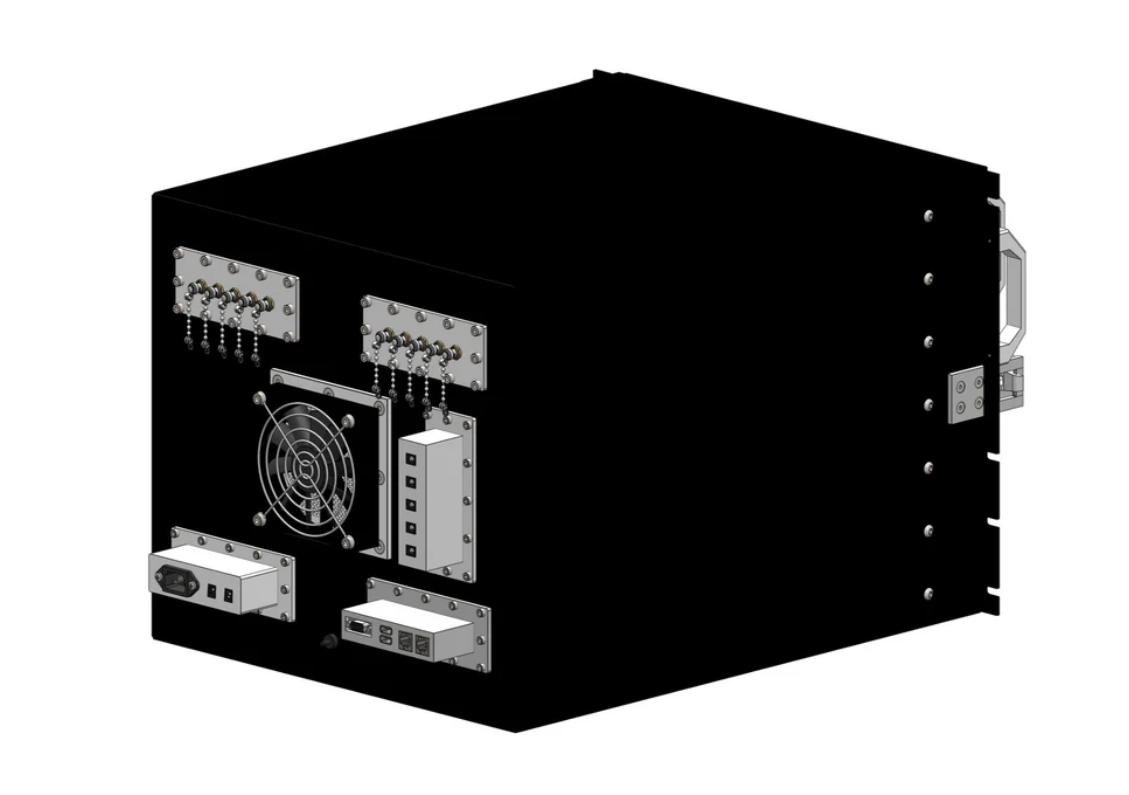

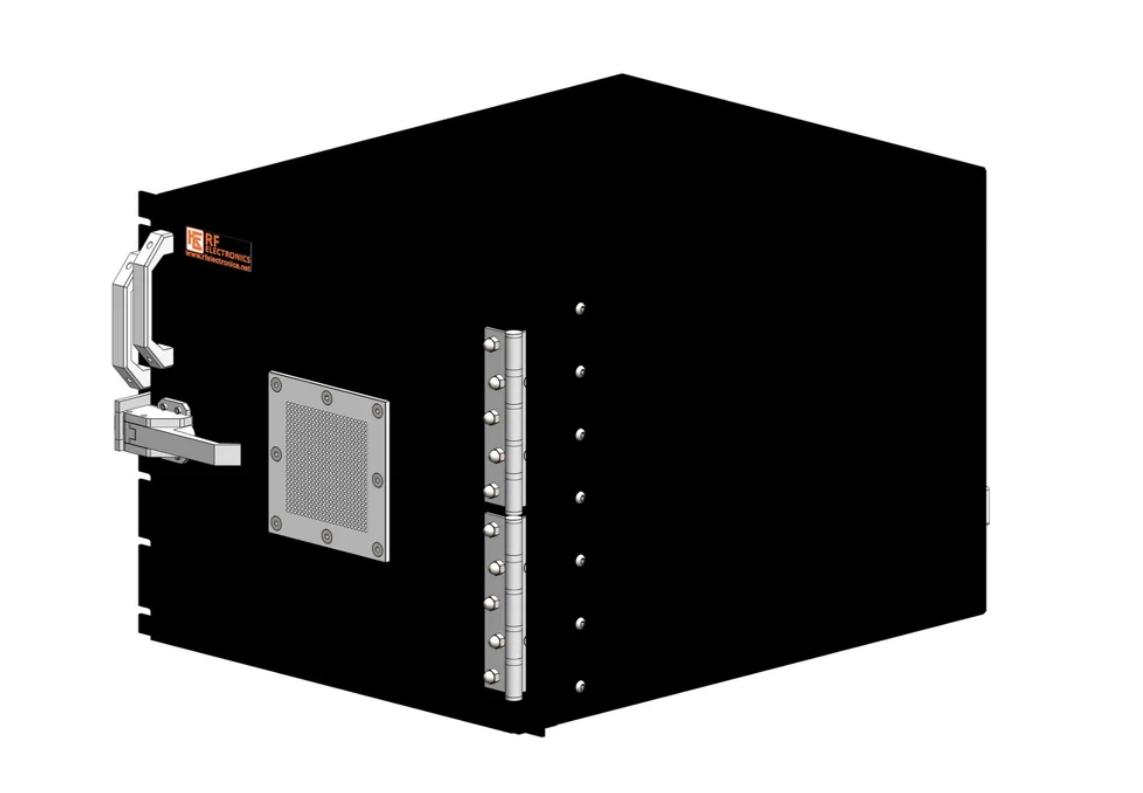

Front door will open left to right. 1 fan: At rear side wall of shielded enclosure. 2 cut-off waveguide air vents: First at front door. Second at rear side.
