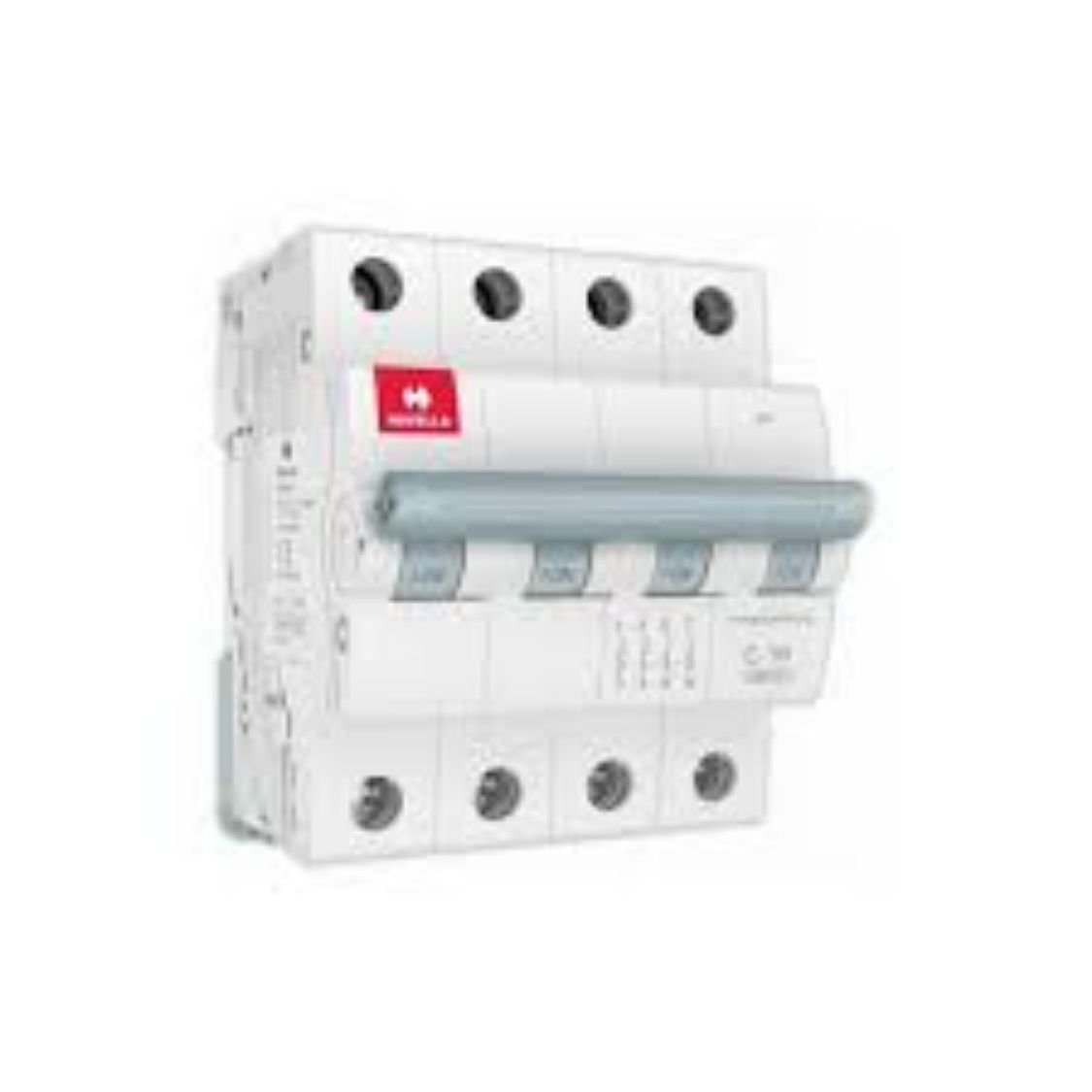

HAVELLS DHMGCFPF016 Four Pole 16 A C Curve MCB

Introducing the Havells DHMGCFPF016 Four Pole MCB

Most breakers switch the live conductors and leave the neutral connected. On a three phase circuit that can leave the neutral carrying current even after the breaker has opened, which is a hazard for anyone working on the line. The HAVELLS DHMGCFPF016 Four Pole 16 A C Curve MCB breaks all four conductors together, three phases plus neutral, so nothing stays live. It suits smaller three phase circuits where the load includes motors or other equipment that draws a starting surge.

Design and Protection Features

• Four pole switching that isolates three phases and neutral in one action

• C curve tripping, which allows normal inrush through before the magnetic trip acts

• 16 A rating for smaller three phase circuits and dedicated equipment feeds

• 10 kA breaking capacity, adequate for most commercial and light industrial boards

• Thermal element for sustained overload and magnetic element for short circuits

• Twelve month warranty, with Havells service support across India

Technical Specifications

Installation Applications

• Three phase distribution boards in shops, clinics and small offices

• Dedicated feeds for pumps, small motors and machinery within 16 A

• Residential buildings with three phase supply, covering common area circuits

• Sub circuits inside control panels and equipment enclosures

Purchase HAVELLS DHMGCFPF016 Four Pole 16 A C Curve MCB where the supply is three-phase and full isolation, including neutral, is required. Fitting should be done by a qualified electrician.

Advantages of the Havells DHMGCFPF016 MCB

Contractors can buy HAVELLS DHMGCFPF016 Four Pole 16 A C Curve MCB in bulk through a quote request, which suits panel builders and anyone kitting out several boards at once. Neutral switching is the practical reason to choose four pole over three: maintenance teams can isolate a circuit completely and work on it safely without tracing where the neutral goes. Havells is also stocked widely enough that a replacement in five years is unlikely to be a problem. Other ratings and curves are listed across the wider MCB range.

FAQs

Q1. What is the price of a 4 pole 16 amp MCB?

This listing runs on quotes. Submit a request and the seller confirms the HAVELLS DHMGCFPF016 Four Pole 16 A C Curve MCB price for your quantity and pincode.

Q2. What is a 4-pole MCB used for?

Three phase circuits where the neutral must be isolated too. It breaks all four conductors together, so no part of the circuit stays live.

Q3. Is 16 amp MCB enough for 1.5 ton AC?

For a 1.5 ton AC, yes on rating, but not this model. That unit runs on single-phase and needs a single-pole breaker, not a four-pole one.

Q4. What does the C curve mean on this MCB?

It trips magnetically at five to ten times rated current, so normal motor starting surges pass through while genuine faults are cut off.

Q5. Can I use a 4-pole MCB for residential use?

Yes, where the home has a three phase connection. Single phase houses need single or double pole devices instead.
