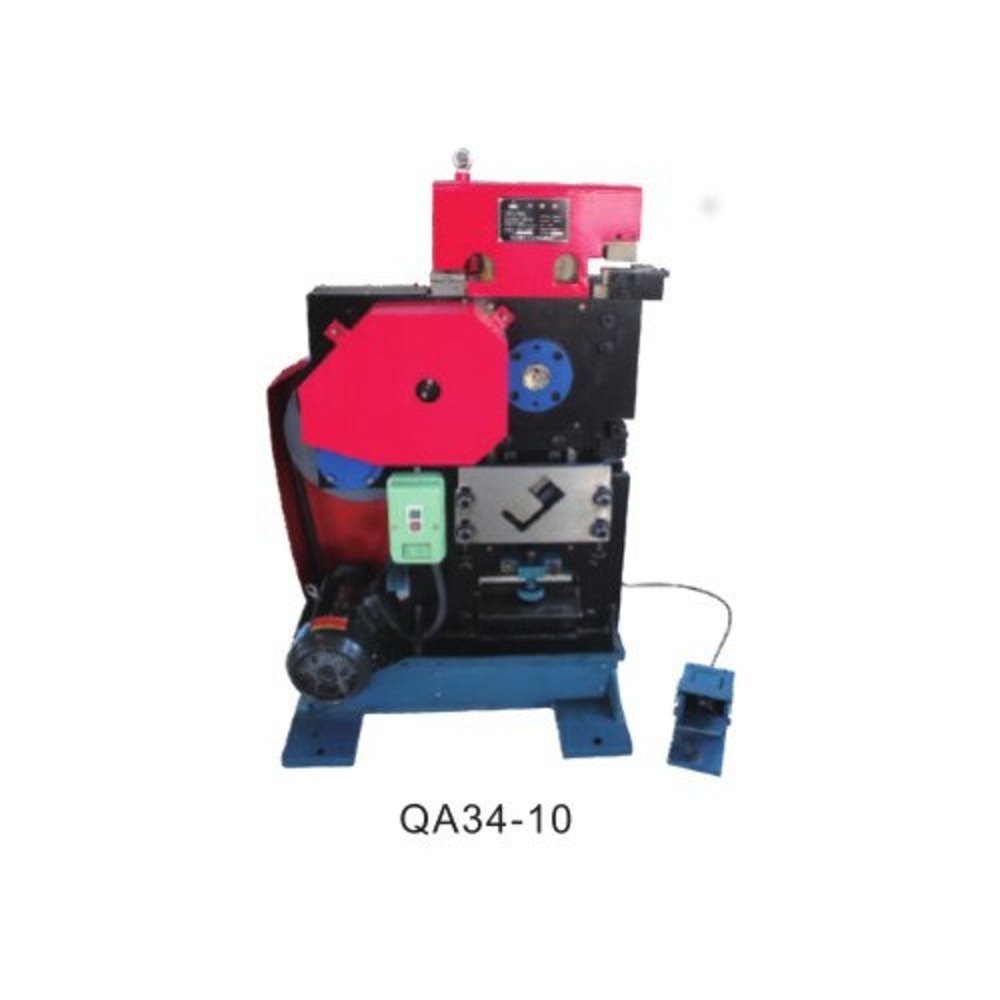

Emrald Hydraulic Ironworker QA34-10 Metal Cutting Machines

The Hydraulic Ironworker QA34-10 is a versatile industrial metal cutting and punching machine designed for steel fabrication, workshop, and manufacturing environments. It combines multiple metalworking...

The Hydraulic Ironworker QA34-10 is a versatile industrial metal cutting and punching machine designed for steel fabrication, workshop, and manufacturing environments. It combines multiple metalworking functions into a single hydraulic-powered unit — capable of shearing flat, round, and square bars, cutting angle and channel profiles, and punching holes in plates and structural sections. Built with a robust hydraulic drive and heavy-duty frame, this machine ensures smooth, consistent force and precise operations suitable for medium-duty fabrication work. With a rated punching force and cutting capacity aligned to 50 ton class machines, it boosts productivity by reducing the need for separate tools for each task.

Rated around 500 kN (≈ 50 ton) force class. 30 mm cutter stroke length for effective shear cutting. Punching capacity for holes approx. 25 mm dia & 40×18×10 mm slots. Typical motor power around 3 kW,
