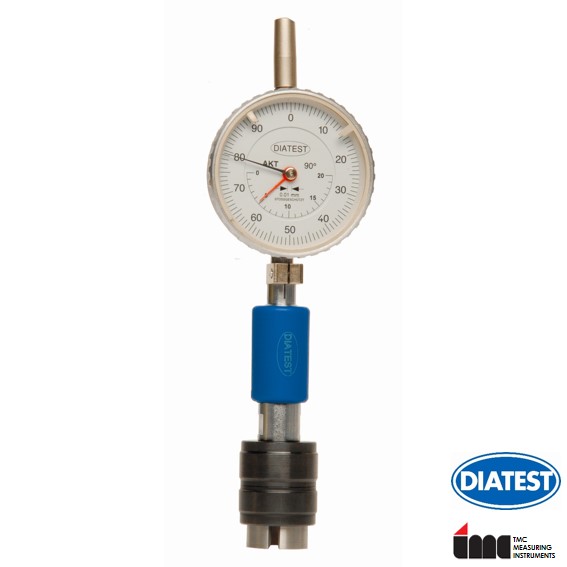

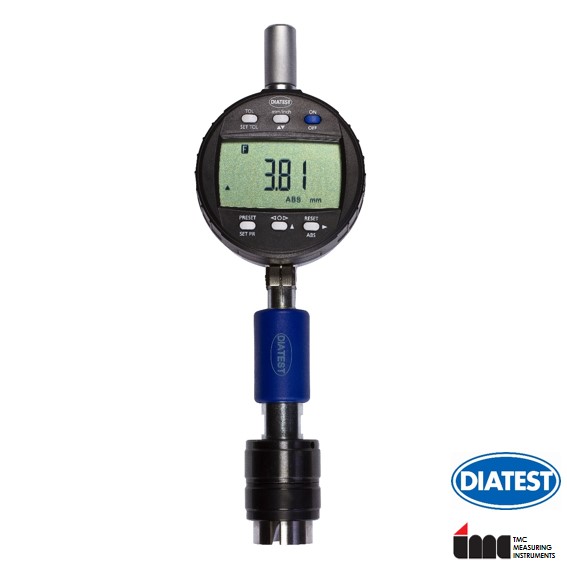

Diatest Dial Bore Measuring Gauges AKT Analog, Digital

• Measuring surface and taper are made of hardened steel. • Shock protected indicator. Scale graduation of indicator 0.01 mm. • Application range for three models as follows :  AKT60 for cone ≤ 60°: ...

• Measuring surface and taper are made of hardened steel. • Shock protected indicator. Scale graduation of indicator 0.01 mm. • Application range for three models as follows :  AKT60 for cone ≤ 60°: Measuring range 0.5 to 121 mm.  AKT90 for cone > 60° and ≤ 90°: Measuring range 0.5 to 120 mm.  AKT127 for cone > 90° and ≤ 127°: Measuring range 0.5 to 121 mm. • Calibration at factory or with setting master. • Economical alternative: Some of the AKTs can be manufactured without stop bars (AKT-OS)(additional) . • Special designs on request. • Available in both analog and digital dials. • The measured values can be recorded and transferred wireless (DIAWIRELESS) or via cable. • AKT indicators are special indicators with a ratio. The ratio depends upon the used taper of measuring cone. • Special setting master on request.

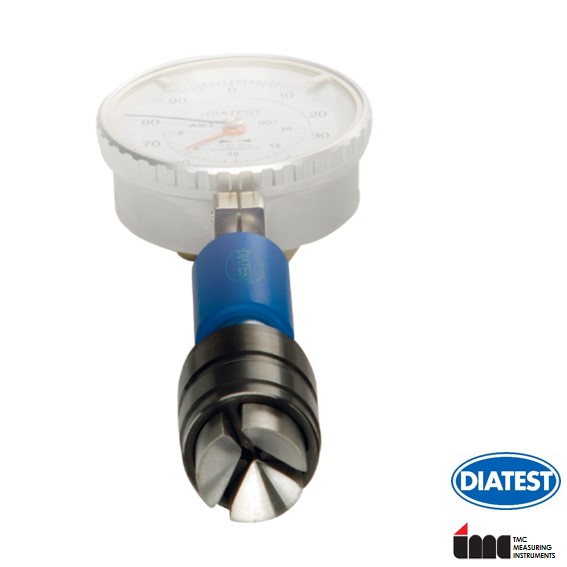

• Measures the largest diameter of a conical bore or a conical groove. • Shop floor handy gauge for quick measurement.
