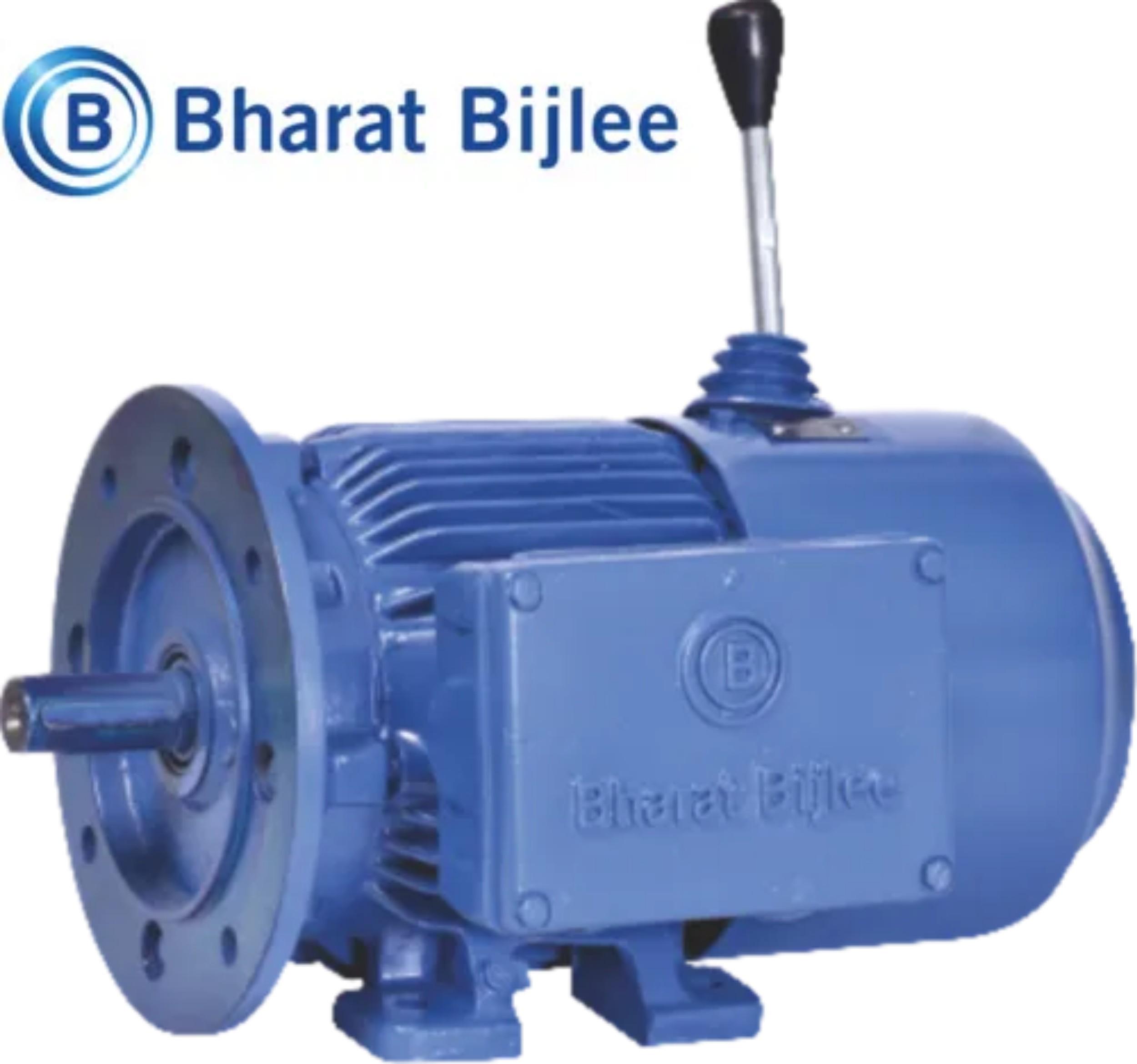

Bharat Bijlee 1400 rpm Three Phase 0.5 hp Double Pole Flange Mounted AC Motors

Brake Motors are offered for various applications requiring almost instantaneous stopping of driven load. These motors are offered in frame sizes 71 to 132M. Their operation is of ‘fail safe’ type, i.e...

Brake Motors are offered for various applications requiring almost instantaneous stopping of driven load. These motors are offered in frame sizes 71 to 132M. Their operation is of ‘fail safe’ type, i.e., the brake is applied when, power to the motor is switched off, or, if power failure occurs. A Brake Motor is an integral combination of an A.C. induction motor and a disc type, fail safe, electromagnetic brake unit. it consist of following: i) A.C. induction motor. ii) Encapsulated brake coil housed in the nondriving end End-shield. iii) Brake liner attached to the armature disc at its interface with the cooling fan. iv) Cooling fan. v) The rectifier unit is provided inside the Terminal Box. it converts A.C. supply into D.C. supply for the Brake coil.
