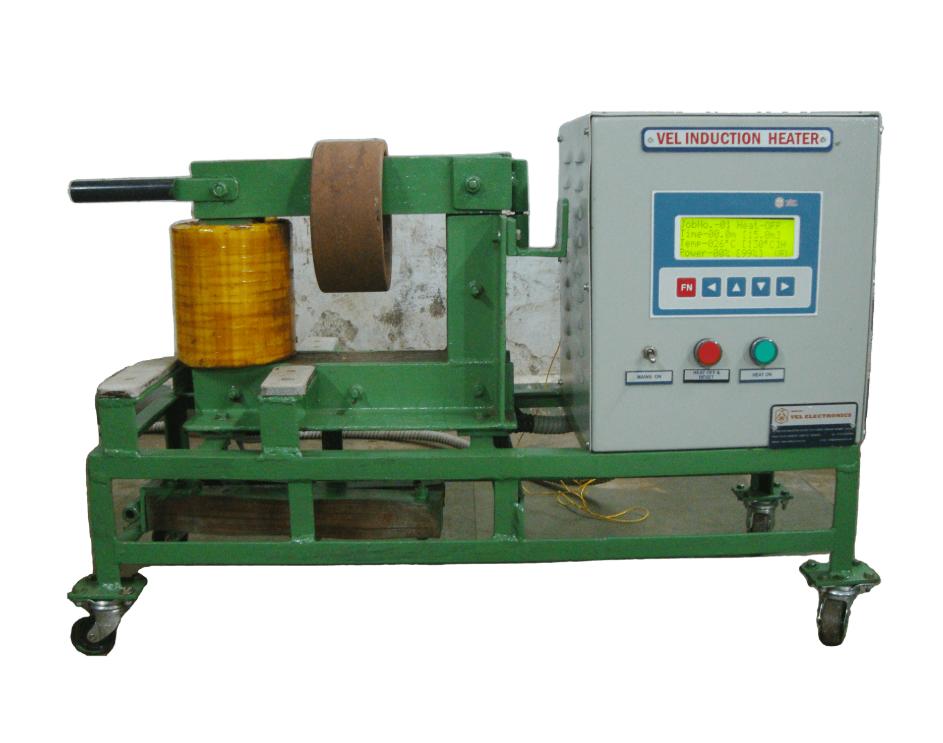

VEL 30 - 400 mm Bearing Induction Heater VEL/BH8 120 kg 250 deg C

Technology: Microcontroller based Electronic Control, Induction Heater, specifically designed and manufactured for mounting of shrink fitting components such as Bearings, inner races, gears, pinons, co...

Technology: Microcontroller based Electronic Control, Induction Heater, specifically designed and manufactured for mounting of shrink fitting components such as Bearings, inner races, gears, pinons, couplings, etc. Memory Backup :To set & save all the operational parameters for different jobs (99 no. of jobs) in rewritable memory (EEPROM) of the microcontroller MMI: Man Machine Interface is 4-line alpha numeric LCD display. The LCD Displays all set, operational and trip parameters etc. Five functional keys to set & save the operational parameter Safety Interlocks: Soft start to avoid rush of surge current at time of switching, Over temperature of coil trip, Current control & overload trip. Operational parameters Time (0–99mins), Temperature (0 to 250°C, in step of 1°C), Power (0–100%). Temperature control:25 – 250 +/- 1°C. Residual Magnetism: <2A/cm, Auto De – Magnetization. Coil & Yoke Details: Single Coil, Horizontal Swing Arm Yoke. Job Position Axis: Vertical To The Ground.

-Rugged and mobile construction -Very Fast and efficient heating -Heating of max bearing weights in less than 15 minutes
