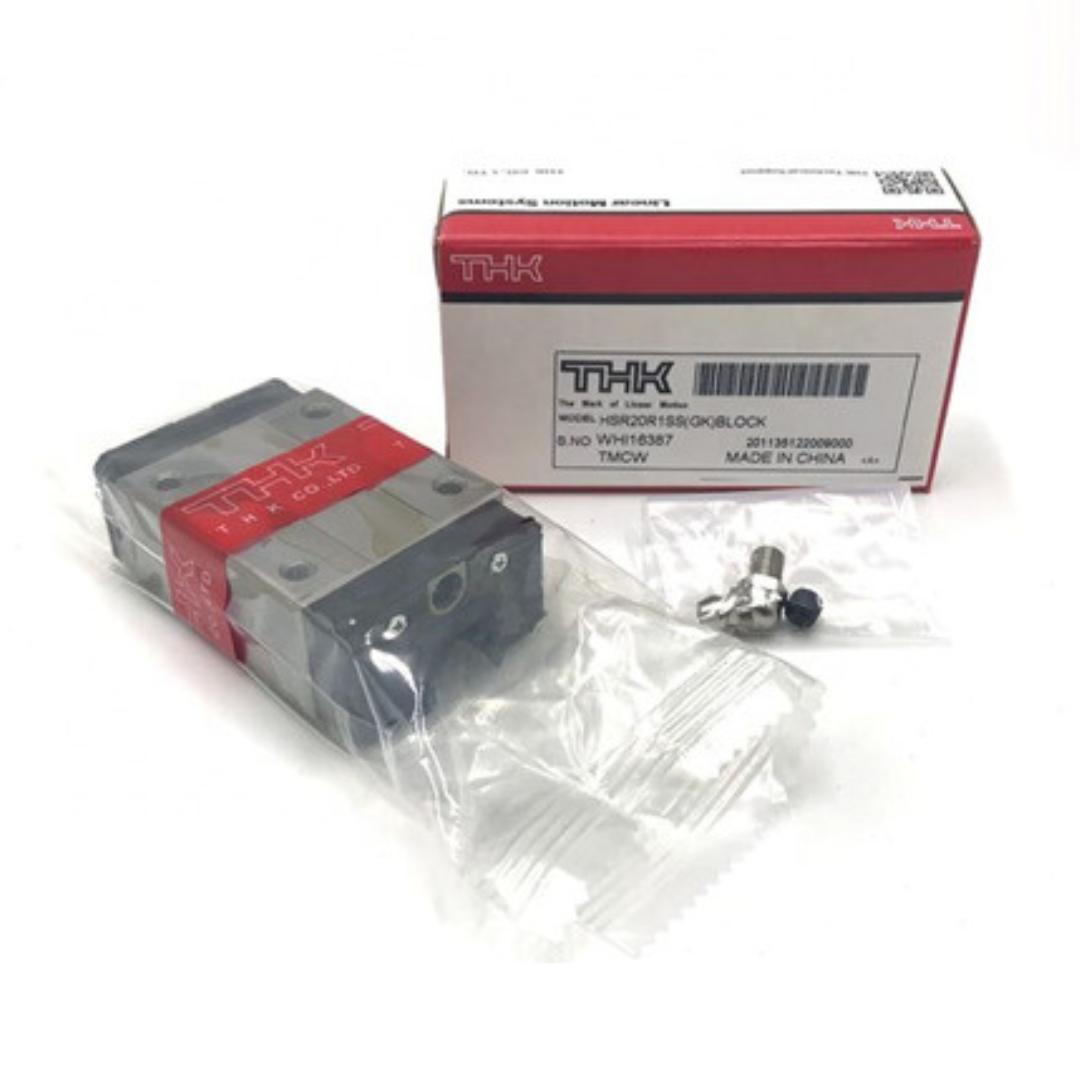

THK 20 mm Linear Bearings HSR20R1SSFM Steel

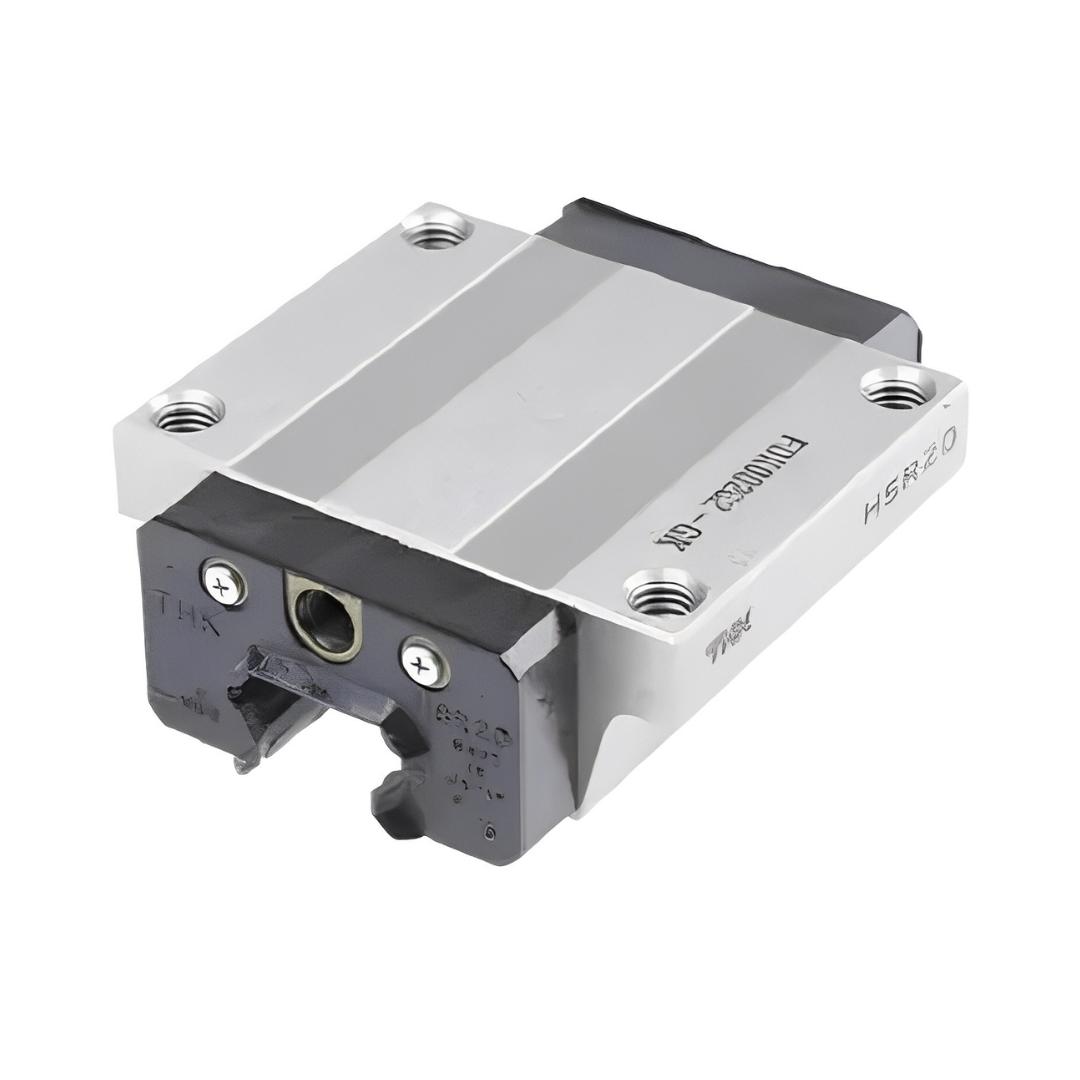

Having a Smaller Lm Block Width (w) and Tapped Holes, This Model Is Optimal for Compact Design. an Individual Block from The Thk Lm Guide Hsr Series. Extremely Useful for Sudden Design Changes and When...

Having a Smaller Lm Block Width (w) and Tapped Holes, This Model Is Optimal for Compact Design. an Individual Block from The Thk Lm Guide Hsr Series. Extremely Useful for Sudden Design Changes and When Performing Maintenance. the Ball Will Not Fall out Even if The Lm Rail Is Removed Because It Is Held by A Holding Plate. Each of The Rail Rows Has Been Positioned at A 45° Contact Angle so That the Rated Load Will Be the Same for All Four Directions (radial Direction, Reverse Radial Direction, Horizontal Direction) that Act on The Lm Block, Which Allows It to Be Used in Any Position, and Is Also Stable Due to Incurring a Preload with A Good Balance, and Makes It Possible to Maintain a Constant Low Friction Coefficient, and Increase Rigidity in Four Directions. Has a Low Cross-Section Height, and The Lm Block Has Been Designed with A High Rigidity, Which Allows for Highly Precise and Consistent Linear Motion.

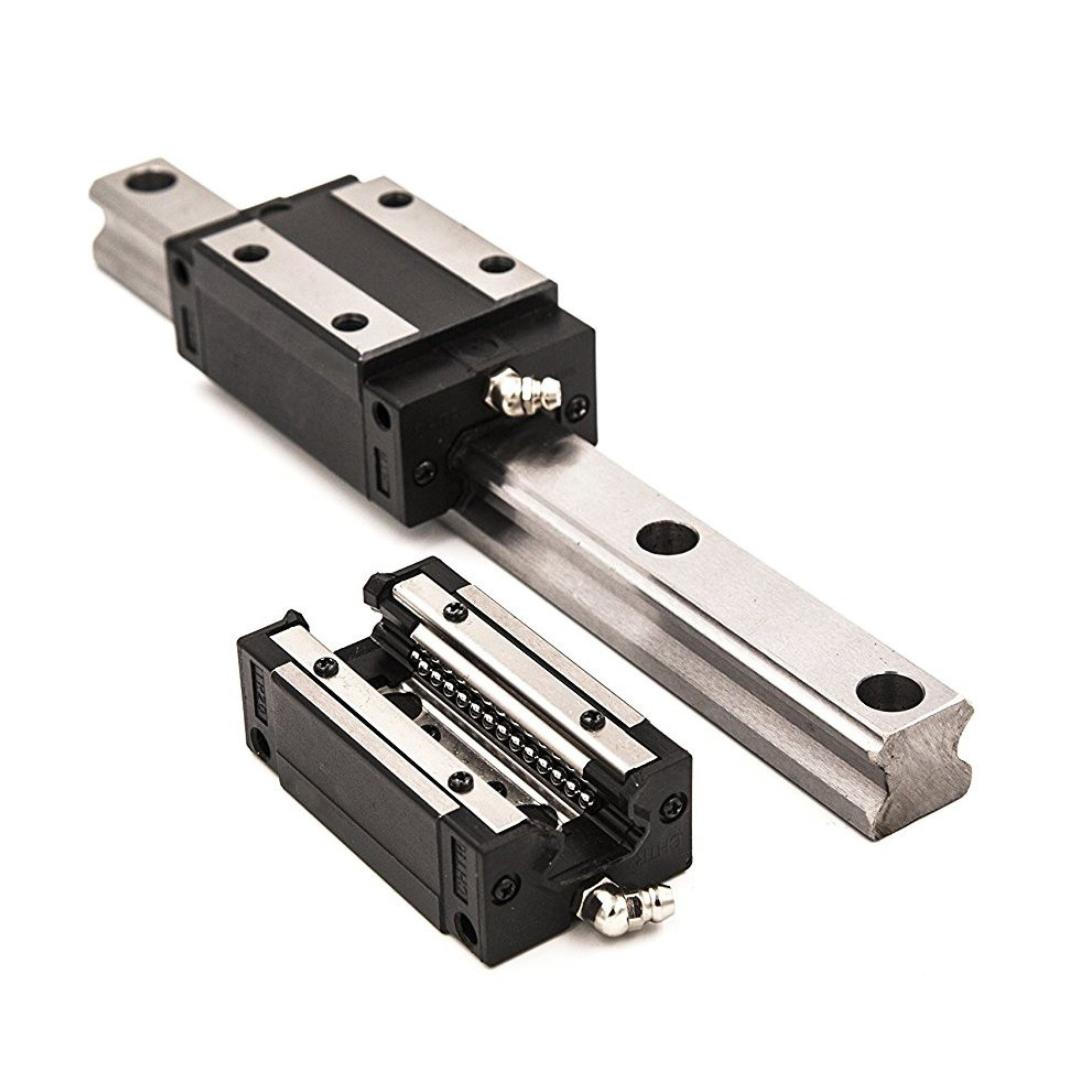

Circulates the Ball Row Using the End Plate that Is Assembled in The Lm Block when The Ball Rotates the Rotating Side with Four Rows that Have Been Precision Ground Into the Lm Block and Lm Rail.
