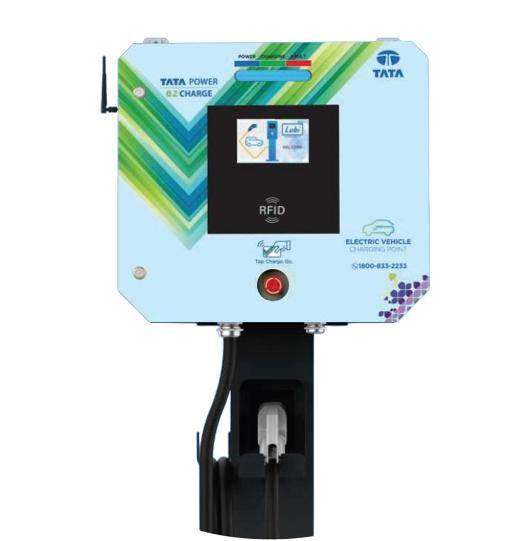

TATA Power Outdoor EV Charging Outlet OEV30K-1DCCS_0
Hover to zoom
TATA Power Outdoor EV Charging Outlet OEV30K-1DCCS_0
Need help?

Share your requirement & we'll
call you back shortly.

TATA Power Outdoor EV Charging Outlet OEV30K-1DCCS

Copy link

Offers

Get GST invoice and save up to 18% on business purchases.
Avail trade credit through our lending partners. Know More
assured-delivery

Assured Delivery

assured delivery Assured Delivery
7_Days_return

7 Days Return

7 days return 7 Days return
7 days return

Payment Protection

7 days return Payment managed by L&T-SuFin
assured delivery

Assured Delivery

7 Days Return

7 Days Return

7 days return

Payment Protection

Specifications

Colour

Blue

Frequency

50 Hz

Model No.

OEV30K-1DCCS

Current Rating

50 A

Voltage Rating

415 V

Power Rating

30 kW

Socket Type

Twin Socket

Number of Ground Poles

1

Dimension

700 x 295 x 625 mm

IP Rating

IP55

Brand

TATA Power

Description

Input Voltage (VAC): 3-Ph 415V (+/-10%). Efficiency: >= 95%. Input Frequency (Hz): 50 Hz (+/- 3%) as per IS12360. Input Current (AC): <50 A. Wires: 5 wire (L1,L2,L3, N,PE). Standby Power: <30W. Power F...

Read More

Input Voltage (VAC): 3-Ph 415V (+/-10%). Efficiency: >= 95%. Input Frequency (Hz): 50 Hz (+/- 3%) as per IS12360. Input Current (AC): <50 A. Wires: 5 wire (L1,L2,L3, N,PE). Standby Power: <30W. Power Factor: >0.98. Current THD: <=5% (50% to 100%) as per IEC 61000-3-12. Number of Outputs: 1. Output Connector Type: IEC 62196-3 (CCS-2). Output Voltage (V): 150-1000V DC. Max. Output Current (DC): Max. 100A. Max. Output Power Rating (kW): Max. 30KW DC. Display: 7" TFT Colour Touch Screen. User Authentication: ISO 14443 RFID / Mobile App based QR Code/ VIN. Compliance: IS17017-1 / IEC61851-1. Charger Interface: LAN / 3G/4G/5G (M2M) / Wi-Fi. Remote Firmware Update: FOTA. Place of Installation: Indoor / Outdoor. Ingress Protection: IP55. Enclosure Protection: IK10. Cooling: Forced Air Convection. Charging Wire Length: 5 Mtr. Application: 4W, Buses. Battery Back-up: 1 Hour. Max. Dimension (W X D X H) mm: 700 x 295 x 625. Max. Weight (KGS): 70KG (Approx). Installation Type: Wall/Pole mounting.

Read less

Input Voltage (VAC): 3-Ph 415V (+/-10%). Efficiency: >= 95%. Input Frequency (Hz): 50 Hz (+/- 3%) as per IS12360. Input Current (AC): <50 A. Wires: 5 wire (L1,L2,L3, N,PE). Standby Power: <30W. Power Factor: >0.98. Current THD: <=5% (50% to 100%) as per IEC 61000-3-12. Number of Outputs: 1. Output Connector Type: IEC 62196-3 (CCS-2). Output Voltage (V): 150-1000V DC. Max. Output Current (DC): Max. 100A. Max. Output Power Rating (kW): Max. 30KW DC. Display: 7" TFT Colour Touch Screen. User Authentication: ISO 14443 RFID / Mobile App based QR Code/ VIN. Compliance: IS17017-1 / IEC61851-1. Charger Interface: LAN / 3G/4G/5G (M2M) / Wi-Fi. Remote Firmware Update: FOTA. Place of Installation: Indoor / Outdoor. Ingress Protection: IP55. Enclosure Protection: IK10. Cooling: Forced Air Convection. Charging Wire Length: 5 Mtr. Application: 4W, Buses. Battery Back-up: 1 Hour. Max. Dimension (W X D X H) mm: 700 x 295 x 625. Max. Weight (KGS): 70KG (Approx). Installation Type: Wall/Pole mounting.

Read More Read less

Country of Origin

India

Shipped by
L&T-SuFin
