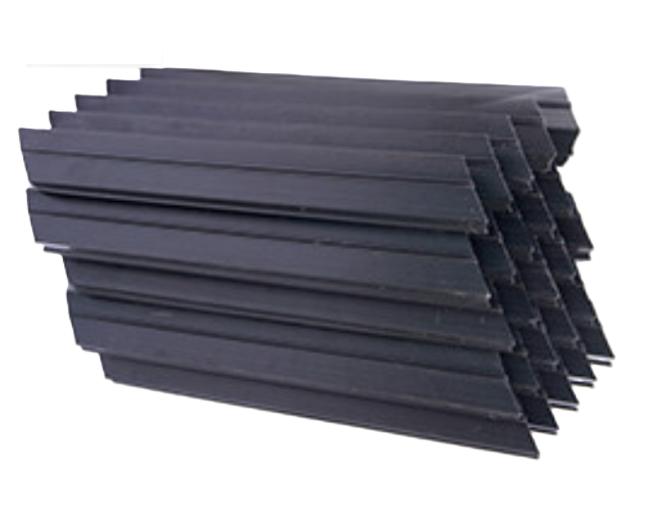

Super Plast SP-TS60 69 x 45 mm Boomerang Virgin PVC Tube Settler Media

SUPER PLAST Tube Settler systems are fast replacing conventional sedimentation systems in the pre and post treatment of wastewater as well as in river water clarification. These systems have been used ...

SUPER PLAST Tube Settler systems are fast replacing conventional sedimentation systems in the pre and post treatment of wastewater as well as in river water clarification. These systems have been used have been designed to handle volumes upto 500 MLD and have been in successful use since almost two decades. SUPER PLAST offers the following products in the tube settler system Boomerang Shaped Tube Settlers (SP-TS60) FEATURES: -Most efficient tube settler design -Can be transported in the form of loose tubes and hence saves transportation cost -High specific settling area provided along with a high ration of wetted perimeter to wetted surface area. -Lowest hydraulic radius giving high settling efficiency -Needs a bottom support structure -Storage: To be kept away from direct sunlight -Maximum Continuous Operating Temperature:55° C -Plan Settling Area (at 60 degrees slope):12 m2/m3 -Plan Settling Area (at 55 degrees slope):14 m2/m3

Model No.:SP-TS60 MOC: Virgin PVC, UV Stabilized Shape: Boomerang - Chevron Fitting: Tongue and groove Thickness:1mm +/- 0.1mm Cross sectional area:69mm x 45mm Hydraulic Radius:1.11 cm
