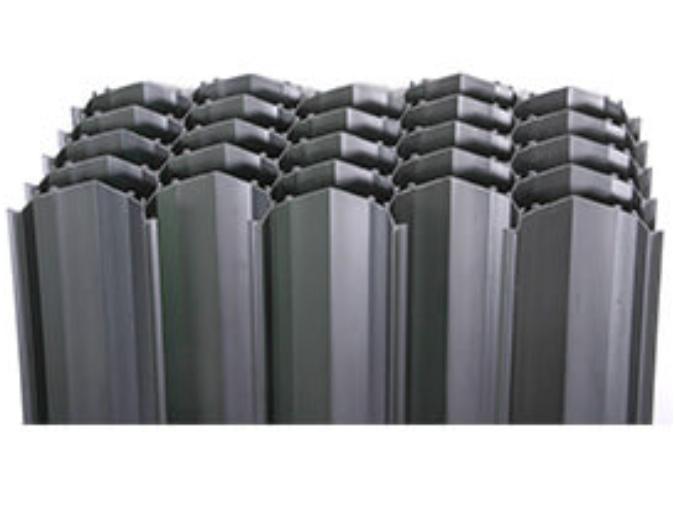

Super Plast SP-TS120 120 x 44 mm Unequal Hexagonal Virgin PVC Tube Settler Media

SUPER PLAST Tube Settler systems are fast replacing conventional sedimentation systems in the pre and post treatment of wastewater as well as in river water clarification. These systems have been used ...

SUPER PLAST Tube Settler systems are fast replacing conventional sedimentation systems in the pre and post treatment of wastewater as well as in river water clarification. These systems have been used have been designed to handle volumes upto 500 MLD and have been in successful use since almost two decades. SUPER PLAST offers the following products in the tube settler system Hexagonal-Chevron Shaped Tube Settlers (SP-TS120) FEATURES AND ADVANTAGES: -Most widely used and accepted tube settler design -Can be transported in the form of loose tubes and hence saves transportation cost -Wide tongue and groove mechanism causes minimum fuss during site assembly -High specific settling area provided -Needs a bottom support structure -Maximum Continuous Operating Temperature:55° C -Storage: To be kept away from direct sunlight -Plan Settling Area (at 60 degrees slope):11 m2/m3 -Plan Settling Area (at 55 degrees slope):13 m2/m3

Model No.:SP-TS120 MOC: Virgin PVC, UV Stabilized Shape: Chevron - Unequal Hexagon Fitting: Tongue and groove Thickness:1mm +/- 0.1mm Cross sectional area:120mm x 44mm Hydraulic Radius:1.5 cm
