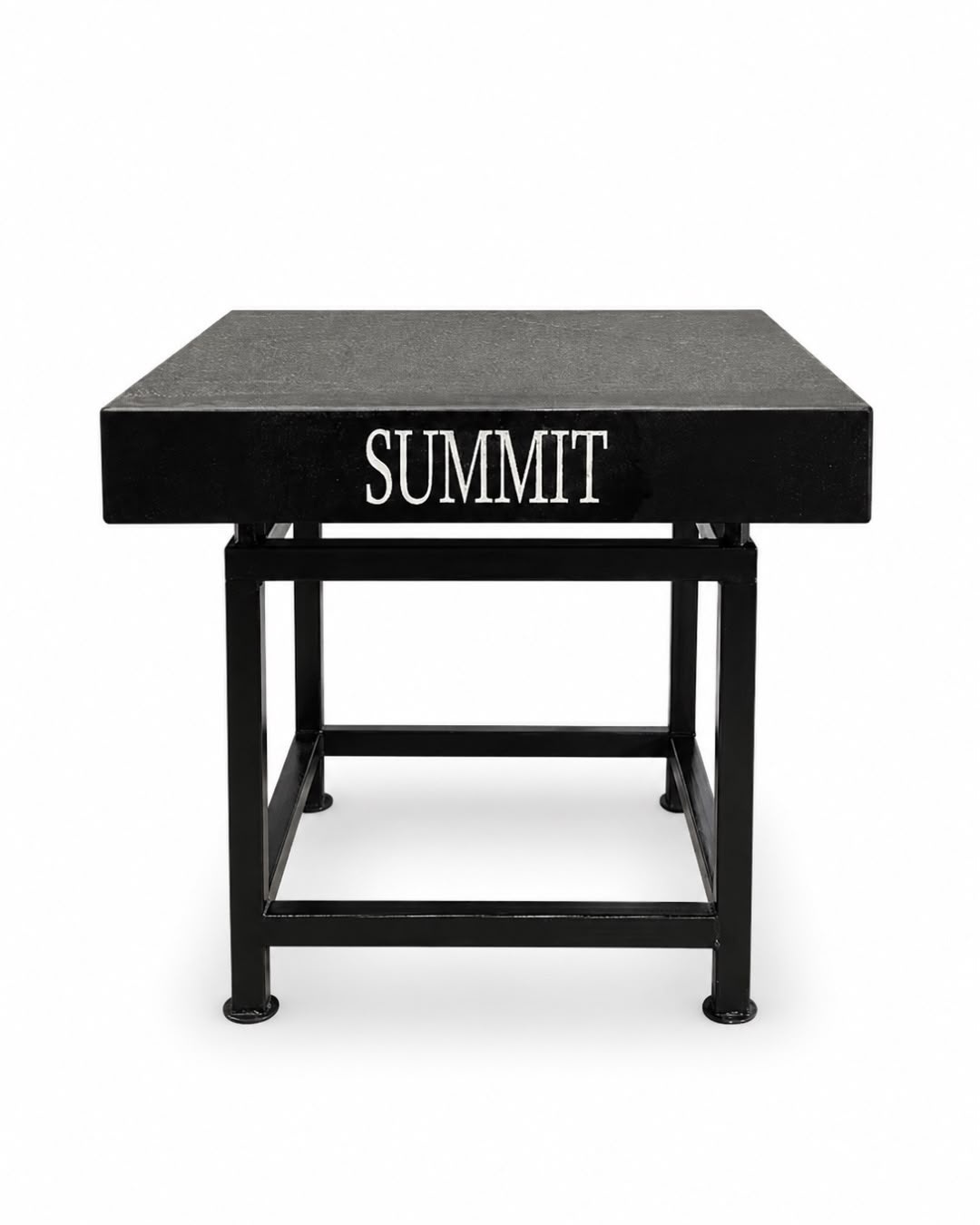

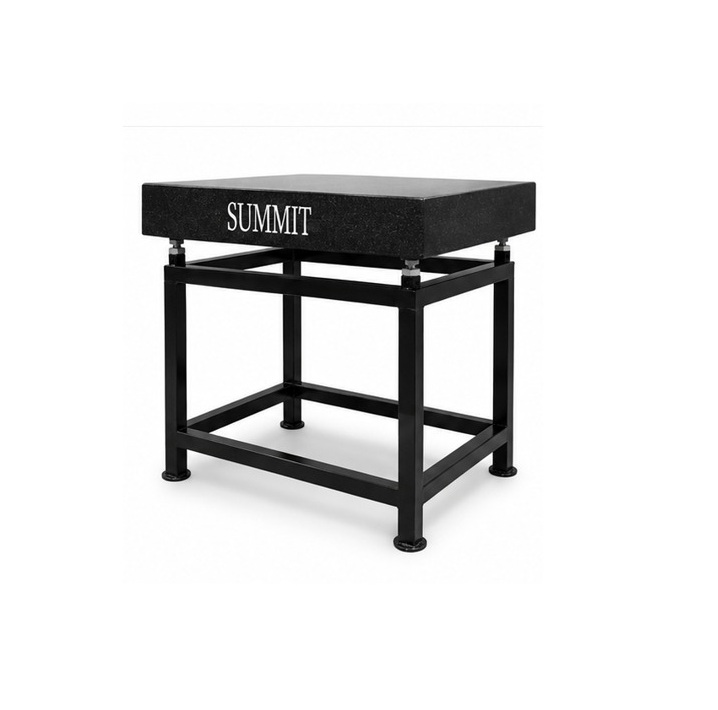

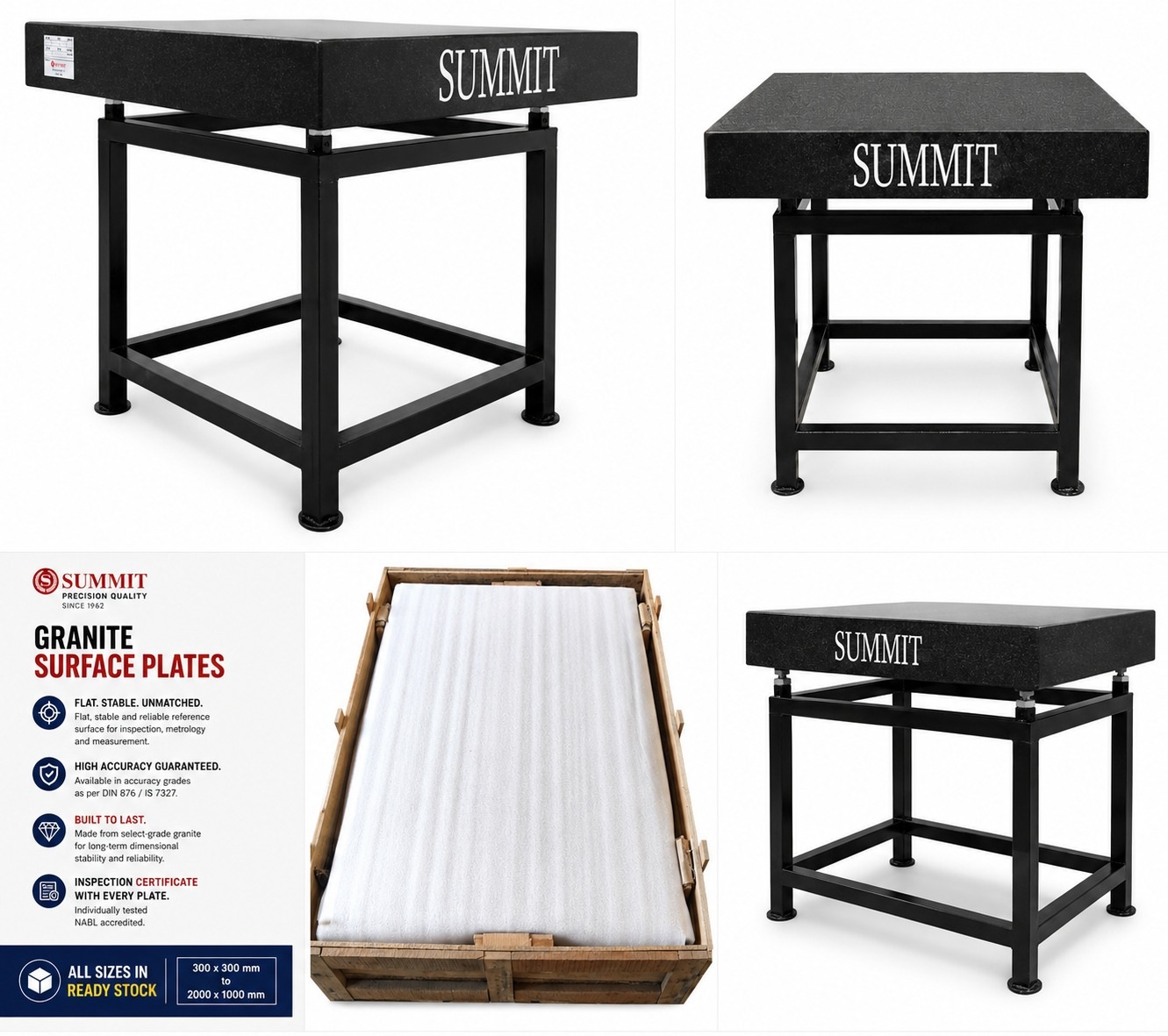

SUMMIT 50 x 300 x 300 mm Granite Surface Plate Grade 0 3.5 µm

SUMMIT Granite Surface Plates are engineered from select-grade granite to deliver a flat, stable, and unimpeachable reference surface for inspection, metrology, and precision measurement. In an environ...

SUMMIT Granite Surface Plates are engineered from select-grade granite to deliver a flat, stable, and unimpeachable reference surface for inspection, metrology, and precision measurement. In an environment where every measurement decision begins at the datum, the quality of the surface plate is not a detail - it is the foundation. Available in accuracy grades from laboratory -class Grade 00 to production floor Grade 2, and supplied with an individual certificate of accuracy traceable to DIN 876:1984 and IS 7327:2003 - every SUMMIT plate is inspection-ready from the moment it arrives. SPECIFICATIONS: Specific Gravity: 2500 -3000 kg/m³ Hardness (Mohs):7 Modulus of Elasticity:50-60 GPa Moisture Absorption: ≤ 0.1% Thermal Expansion: Low and stable - minimal dimensional drift Magnetic Properties: Non-magnetic Surface Condition: Non-porous - wipes clean without staining Accuracy Under Load:1 μm per 20 kg - per IS 7327:20031 μm per 20 kg - per IS 7327:2003 (Beam Comparator method)

Grades: Grade 00-Grade 3 Standard: Din 876, IS7327 Sizes: 300 X 300 to 2000X1000 mm Certificate: Individual Traceable
