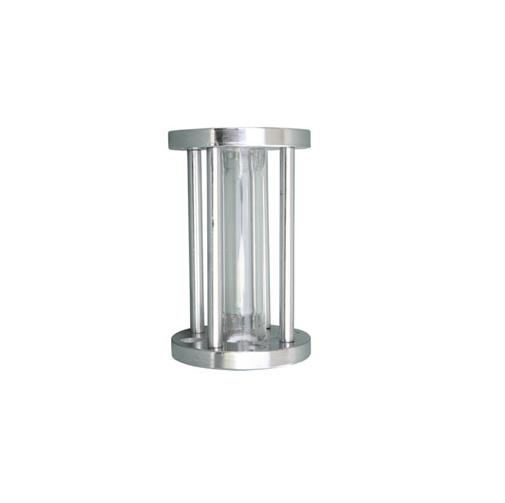

SEALMECH Full View Sight Glass 200 mm

SEALMECH Tubular Type Sight Flow Indicators are Bi-Directional and may be placed in any orientation and so easy to check flow from any side of Sight Flow Indicator. They can be installed vertically or ...

SEALMECH Tubular Type Sight Flow Indicators are Bi-Directional and may be placed in any orientation and so easy to check flow from any side of Sight Flow Indicator. They can be installed vertically or horizontally in the middle of any kind of non-transparent pipeline and are very convenient to observe the flow. SEALMECH offers a sight flow indicators suitable for rugged industrial applications. Sight Flow Indicators provide a quick, reliable and economical way to verify the flow & quality of fluids through industrial process lines. Tubular type Sight Glass is suitable for corrosive chemicals, acids and colored liquids. Sight Glass are used primarily in processes, where spot indication is desired to detect presence of media, or to inspect color, clarity, turbidity, or other critical characteristics. Drilling as per ANSI B 16.5 / BS 10 / PN / DIN Std. Tempered Borosilicate Glass Flanged End Connection Heavy Duty Construction 3600 All Around View

Pressure Up To Max. 10 bar Suitable Up to 1250 C. Temperature Simple & Easy To Replace The Glass Sizes from 15MM To 200MM M.O.C.: Cast Steel / S.S. 304 / 316 / 304L / 316L Gasket: P.T.F.E. / CAF
