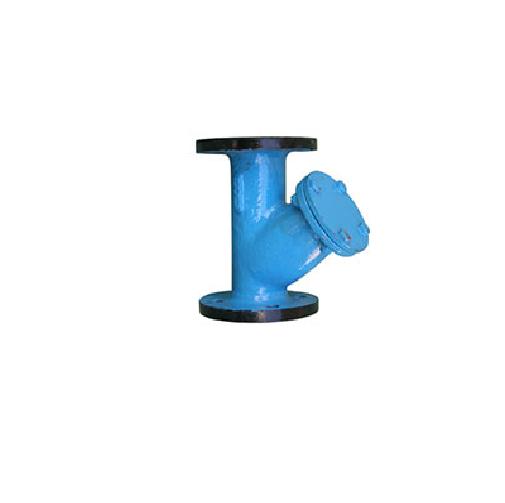

SEALMECH Cast Steel Y Strainers 5 inch Flanged

SEALMECH is leading manufacturer of Industrial Strainer in wide range with different types varieties. SEALMECH bolted cover “Y” Type strainer has low pressure drop due to higher flow area through scree...

SEALMECH is leading manufacturer of Industrial Strainer in wide range with different types varieties. SEALMECH bolted cover “Y” Type strainer has low pressure drop due to higher flow area through screen. The strainer improves the clearance in the medium, and prolongs the life of valves; protect expensive pumps, meters and other equipments. SEALMECH “Y” strainers are available in wide range of body construction material, pressure ranges and screen sizes for various suitable applications. SEALMECH “Y” strainers are easy to install in either a horizontal or vertical position. During both direction installations, the screening element must be on the "down side" of the strainer body, so the entrapped material can properly collect in it. SEALMECH “Y” strainer also available with drain Plug which can be replaced with Ball valve of Globe Valve for frequent blow off. SEALMECH also can offer P.T.F.E. Lined, Rubber Lined & Fabricated strainers on request.

Body Material:C.I. / WCB / CF8 / CF8M / CF3 / CF3M and others Suitable for Medium:Water, Gas, Air and other fluids Screen Size:2 to 200 Mesh Drain Plug:C.S. / S.S. 304 / 316 / 304L /316L (On Request)
