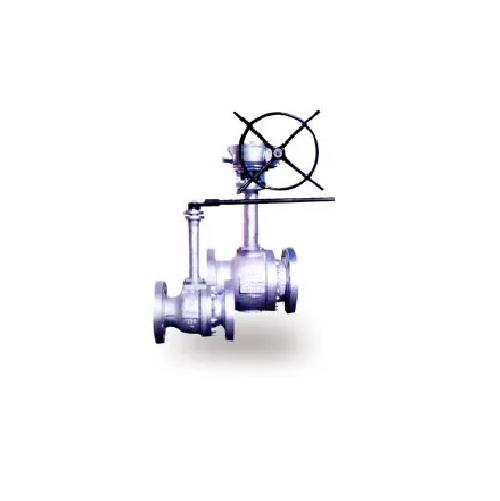

SEALMECH 10 inch Extended Stem Carbon Steel Ball Valves Flanged

Extended Stem BALL VALVE For Cryogenic ServicesIn case of the ball valve installed in the underground pipe/low temperature/cryogenic service or when dealing with extremely high temperature, considerati...

Extended Stem BALL VALVE For Cryogenic ServicesIn case of the ball valve installed in the underground pipe/low temperature/cryogenic service or when dealing with extremely high temperature, consideration shall be given to a stem extension in order to protect the valve operator from excessive temperature whether it be lever, gear or power assisted actuator. Design Standard:BS 5156 Inspection & Testing Standard:BS 6755 End Connection:Flanged End To ANSI B 16.5/BS 10 Table Socket Weld End To ANSI B 16.11 Butt weld End To ANSI B 16.25 Screwed End To ANSI B 1.20.1 Size Range:1 1/2-12" Pressure Rating:PN 10 Body:IS 210 GR. FG 200/220/250/260 ASTM A 216 GR. WCB ASTM A 351 GR. CF 8/CF 8M/CF 3/CF 3M ASTM A 352 GR. LCB/LC3 Hand Wheel:Cast Iron / Ductile Iron / Bakelite Stem:AISI 410/304/316/304L/316L Diaphragm:Neoprene / Hypalon / Butyl / EPDM / Nitrile / Buna-N / Food Grade With P.T.F.E. Pad Body Lining:Neoprene / Natural / Ebonite / EPDM / P.T.F.E. (FEP/PFA) / FRP, Food Grade
