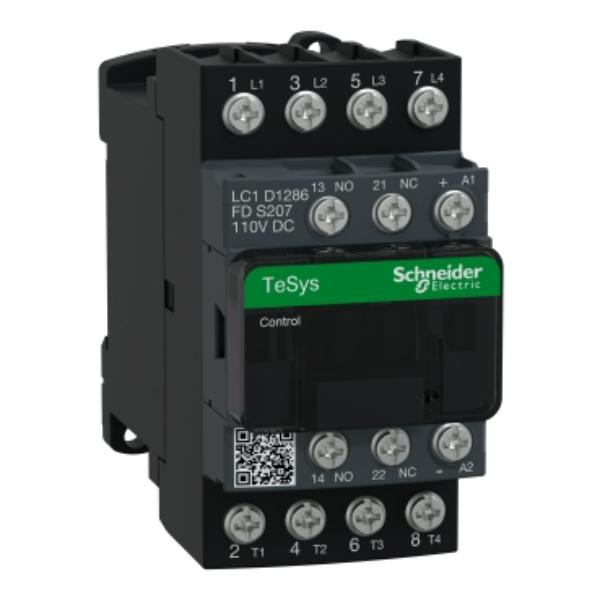

Schneider Electric LC1D1286FDS207 440 V Four Pole 25 A Electrical Contactors

The LC1D1286FDS207 TeSys D contactor is an electrical fitting used for motor control and other non-motor loads. It is a 4-pole (4P) contactor with 2 normally open (2NO) and 2 normally closed (2NC) auxi...

The LC1D1286FDS207 TeSys D contactor is an electrical fitting used for motor control and other non-motor loads. It is a 4-pole (4P) contactor with 2 normally open (2NO) and 2 normally closed (2NC) auxiliary contacts, rated for AC-1 applications with a voltage of 440 V and a current of 25 A. It has a coil voltage of 110 V DC and a response time of 28 ms. The contactor is part of the TeSys Deca series and can operate in temperatures ranging from -60 to 80 degrees Celsius. It has an IP20 protection rating and conforms to EN 60947-4-1 and EN 60947-5-1 standards. The maximum switching frequency is 3600 cycles/h at 60 degrees Celsius

Sustainability, Well Being Performance, Resistive load, IP20 front face, With Protective Cover.
