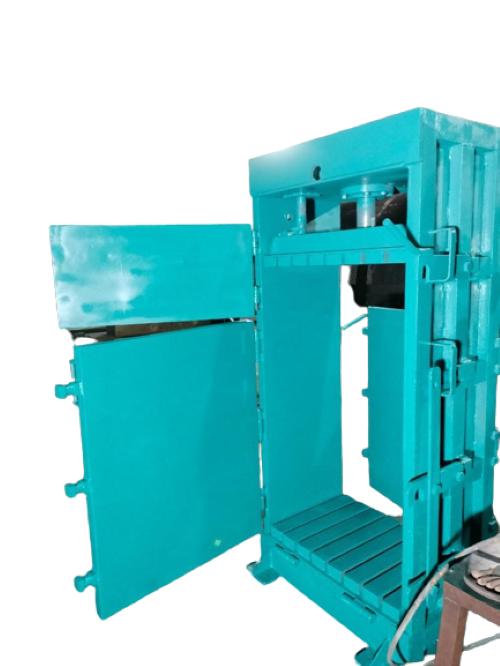

Prameeti 70 kg Vertical Baling Machine 25 T 5 hp 25 ton

Table size 750 ×500 mm Maximum Capacity 25 Ton Balling Chamber 750L × 500W × 1300H mm Bale size 750L × 500W × 300H to 500H Bale Weight 100 to 150 kg for mix plastic approx. depend upon material...

Table size 750 ×500 mm Maximum Capacity 25 Ton Balling Chamber 750L × 500W × 1300H mm Bale size 750L × 500W × 300H to 500H Bale Weight 100 to 150 kg for mix plastic approx. depend upon material and its density Number of cylinders One main press cylinder. Hydraulic Stroke 1000 mm Hydraulic Cylinder Make- Modern Hydraulics Press Speed 15 to 20 mm per sec Return Speed 50 to 60 mm per Sec Material feeding Manual Motor HP 7.5 HP, 1440 RPM (Crompton Make) Electric Starter Make L&T of 7.5 HP capacity No of cycles 10 to 15 cycles per hr. Depends on feeding speed Type Of material MS plate – 6mm with C channel plates rigid support. Operation Manual No. of doors Two upper side and two lower side Bale ejection By Wire rope ejection Bale stapping Manual Binding Oil Drive System Gear cum Plunger Oil Tank Capacity 100 Liter Hydraulic Oil Grade HP Enklo 68 Harden Nuts and Bolt TVS and Unbrako Total Weight of machine 1450 KG
