PLT 51315 V Ball Bearings Brass and Mild Steel

Thrust ball bearings are classified into those with flat seats or aligning seats depending on the shape of the outer ring seat (housing washer). They can sustain axial loads but no radial loads.Single ...

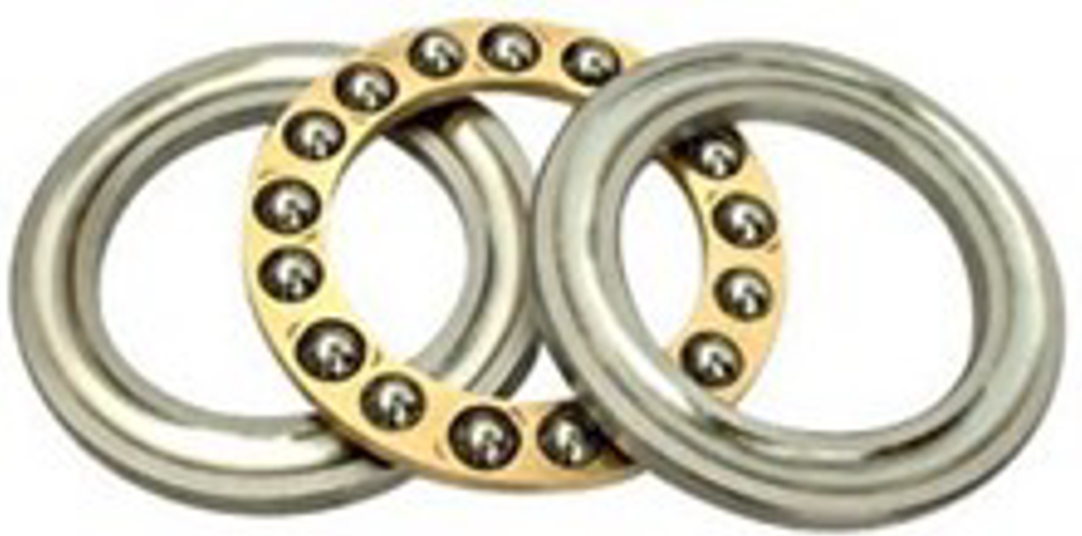

Thrust ball bearings are classified into those with flat seats or aligning seats depending on the shape of the outer ring seat (housing washer). They can sustain axial loads but no radial loads.Single direction thrust ball bearings have two washers, with grooved raceways. The curvature of the raceways is slightly larger than that of the ball. Out of two washers, one is shaft washer & the other one is housing washer. The bore of the shaft washer is of the shaft dia & the bore of the housing washer is slightly larger than that of shaft washer, to facilitate free rotation. These types of thrust bearings are mainly used where axial load conditions are too large to be accepted by radial bearings. They can accept purely thrust load in single direction & they are not suitable for speed applications.

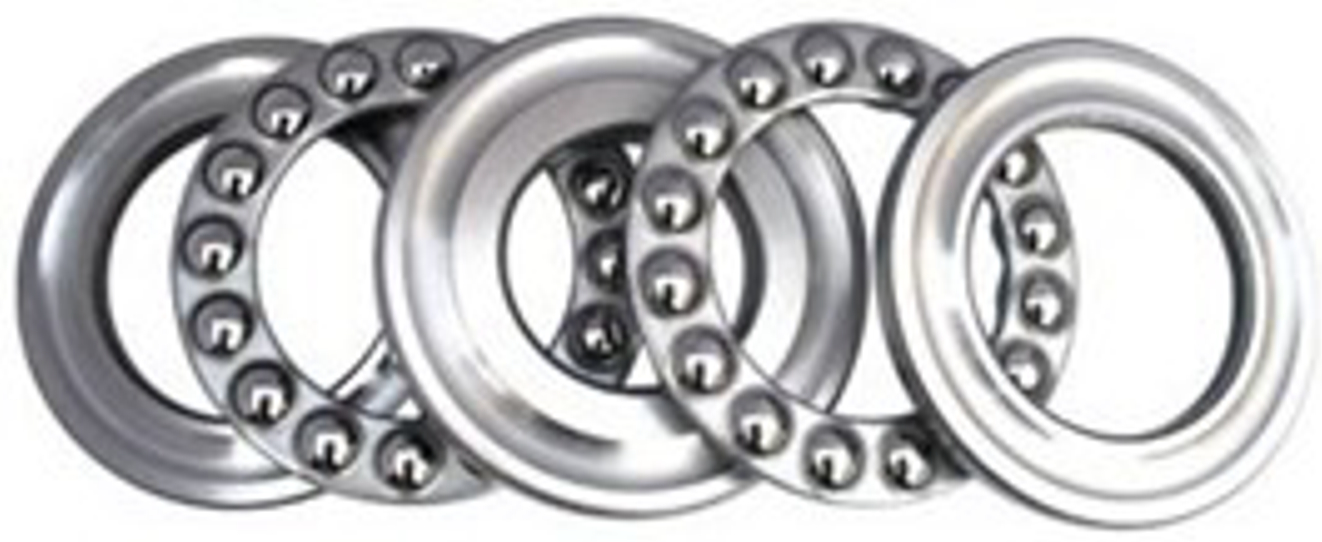

Double direction thrust ball bearings has three rings with the middle one (center ring) being fixed to the shaft.
