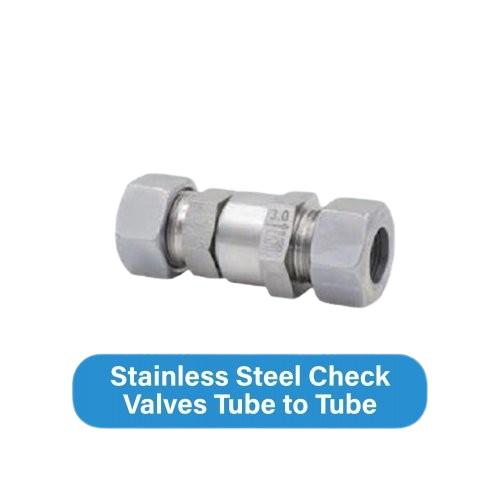

PIONEER SS Check Valves 0.75 inch

PIONEER Check Valves are specially designed & manufactured for flow control of fluids and gases in corrosive & hazardous environments. Valves are precision machined with designer durability and maximum...

PIONEER Check Valves are specially designed & manufactured for flow control of fluids and gases in corrosive & hazardous environments. Valves are precision machined with designer durability and maximum efficiency to provide high quality and low cost alternatives in fluid and gaseous control systems of different applications, to meet the exact standards of our customers’ growing demands. Pressure Rating. 316SS – 1/8” to 3/4″- 5000 psig CWP (345 bar). 1” – 3000 psig CWP (207 bar). Brass – 1/8” to 1” – 3000 psig CWP (207 bar). Working Temperatures. Viton seal -15° F to 375° F (-26° C to 190 °C). Fluorocarbon Rubber -15° F to 400° F (-26 °C to 204 °C). Buna – N Rubber -30° F to 275° F (-34 °C to 135 °C). Neoprene Rubber -45° F to 250° F (-43 °C to 121 °C). Working-Choice of fixed pressure cracking points from 1/3 to 25 psi (.02 to 1.75 bar) or as per customers’ requirements. Valves may initially crack at higher than subsequent cracking pressure if are not actuated for a period of time.

Features: Available in High Grade Stainless Steel. End-connected female to female threaded NPT, BSP, BSPT, ISO, DIN and JIS tapered pipe ends. 100% factory tested for both crack & reseal.
