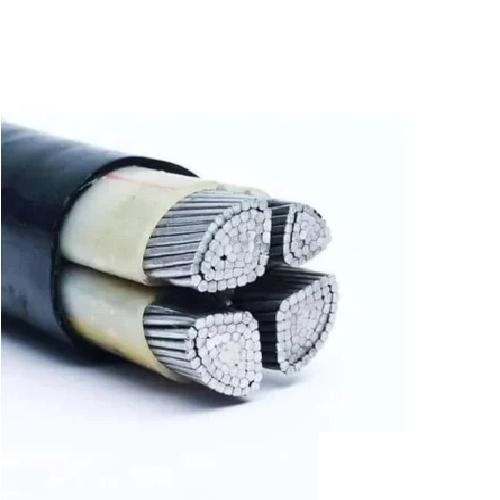

Parasavnath Aluminium XLPE Aluminium Round Wire Extruded PVC LT Power Cables 3.5 Core 185 sqmm 1.1 kV

Conductor-Aluminium / Annealed plain copper solid / stranded conductor conform to BS 6360 and IEC 60228, Class 2 (Circular / Sector shaped). Insulation-Cross linked polyethylene (XLPE) Assembly-Insulat...

Conductor-Aluminium / Annealed plain copper solid / stranded conductor conform to BS 6360 and IEC 60228, Class 2 (Circular / Sector shaped). Insulation-Cross linked polyethylene (XLPE) Assembly-Insulated conductors are laid up together, if necessary interstices may be filled with fillers. Fillers-Non-hygroscopic Poly propylene fillers are included between laid up cores wherever required. Bedding-Bedding Extruded PVC compatible with operating temperature. Armour-For Single Core - Aluminium round wire / flat Strep. For Multicore - Galvanised Steel round wire / flat wire / tape Outer Sheath-Extruded PVC / Special PVC compound such as FR,FRLS, Low Smoke Zero Halogen (LSOH) can be used for outer sheath to suit a variety of environment and fire risk conditions. Flammability test confirms to IEC 332 & Swedish chimney. For installation where fire and associated problems such as emission of smoke and toxic fumes offer a serious potential threat, special LSF compound can be provided.

3.5 Core, 185 sq. mm xlpe aluminium armoured cable 1.1KV grade as per IS:7098-1
