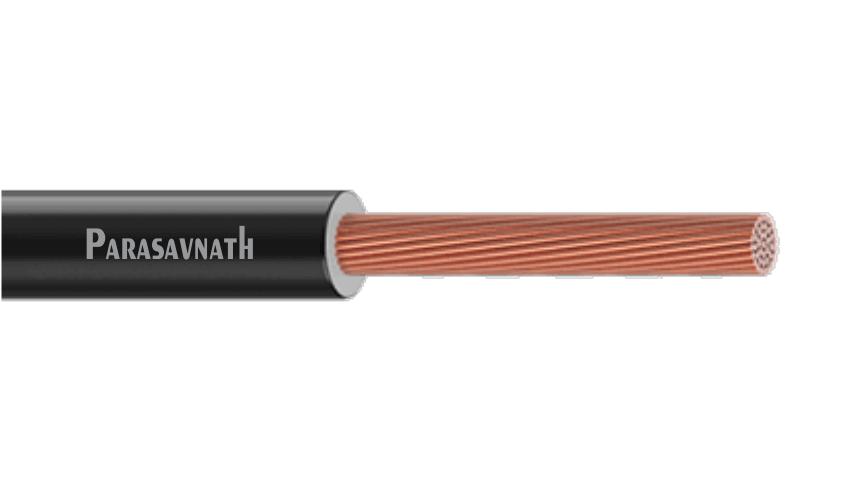

Parasavnath 1 Core 35 sqmm Industrial Flexible Cables 90 m Copper 1100 V

Conductor-Aluminium / Annealed plain copper solid / stranded conductor conform to BS 6360 and IEC 60228. Class 2 (Circular / Sector shaped) Insulation-PVC type Ill as per BS 7655: Section 3.1. and PVC ...

Conductor-Aluminium / Annealed plain copper solid / stranded conductor conform to BS 6360 and IEC 60228. Class 2 (Circular / Sector shaped) Insulation-PVC type Ill as per BS 7655: Section 3.1. and PVC type A as per IEC 60502-1 Assembly-Insulated conductors are laid up together, if necessary interstices may be filled with fillers. Fillers-Non-hygroscopic Poly propylene fillers are included between laid up cores wherever required. A separator tape of non-hygroscopic poly propylene material is applied over laid up cores wherever necessary. Bedding-Extruded PVC compatible with operating temperature. Armour-For Single Core - Aluminium round wire / flat Strep. For Multicore - Galvanised Steel round wire / flat wire / tape. Outer Sheath-Extruded PVC / Special PVC compound such as FR, FRLS, LSOH can be used for outer sheath to suit a variety of environment and fire risk conditions. Flammability test confirms to IEC 332 & Swedish chimney.

Indoor & Outdoor Cable Ducts, Cable Trays, Conduits, Switching Systems, Industrial Power Units, Distribution Systems & Lighting. Industrial and Commercial units for basic power & lighting purpose.
