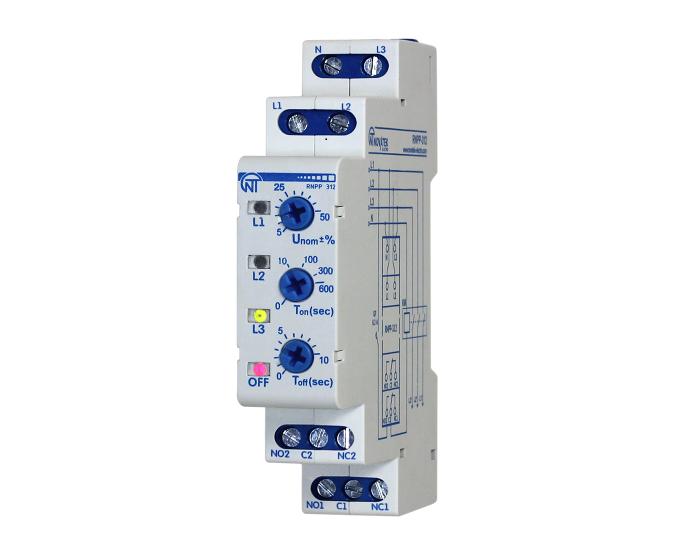

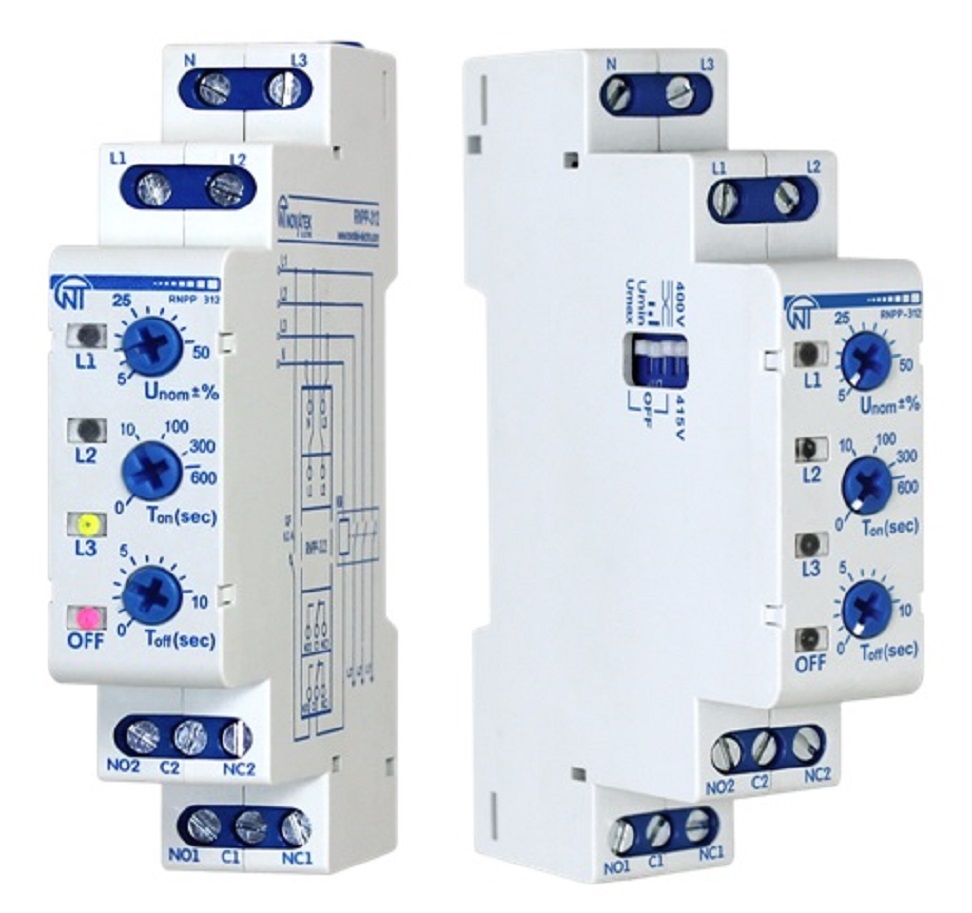

Novatek-Electro RNPP-312 Three Phase 5 A Voltage Monitoring Relay

RNPP-312 has been designed for monitoring the permissible voltage level; for monitoring the correct alternation and absence of sticking of phases; for monitoring the full-phase and symmetry of the main...

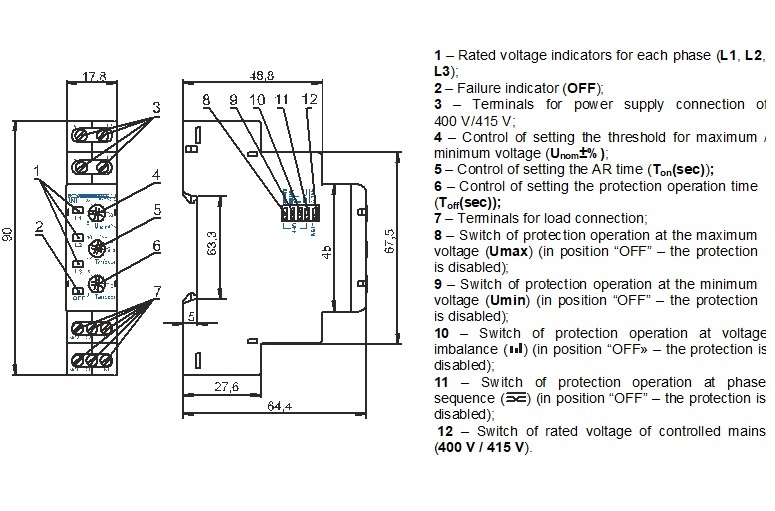

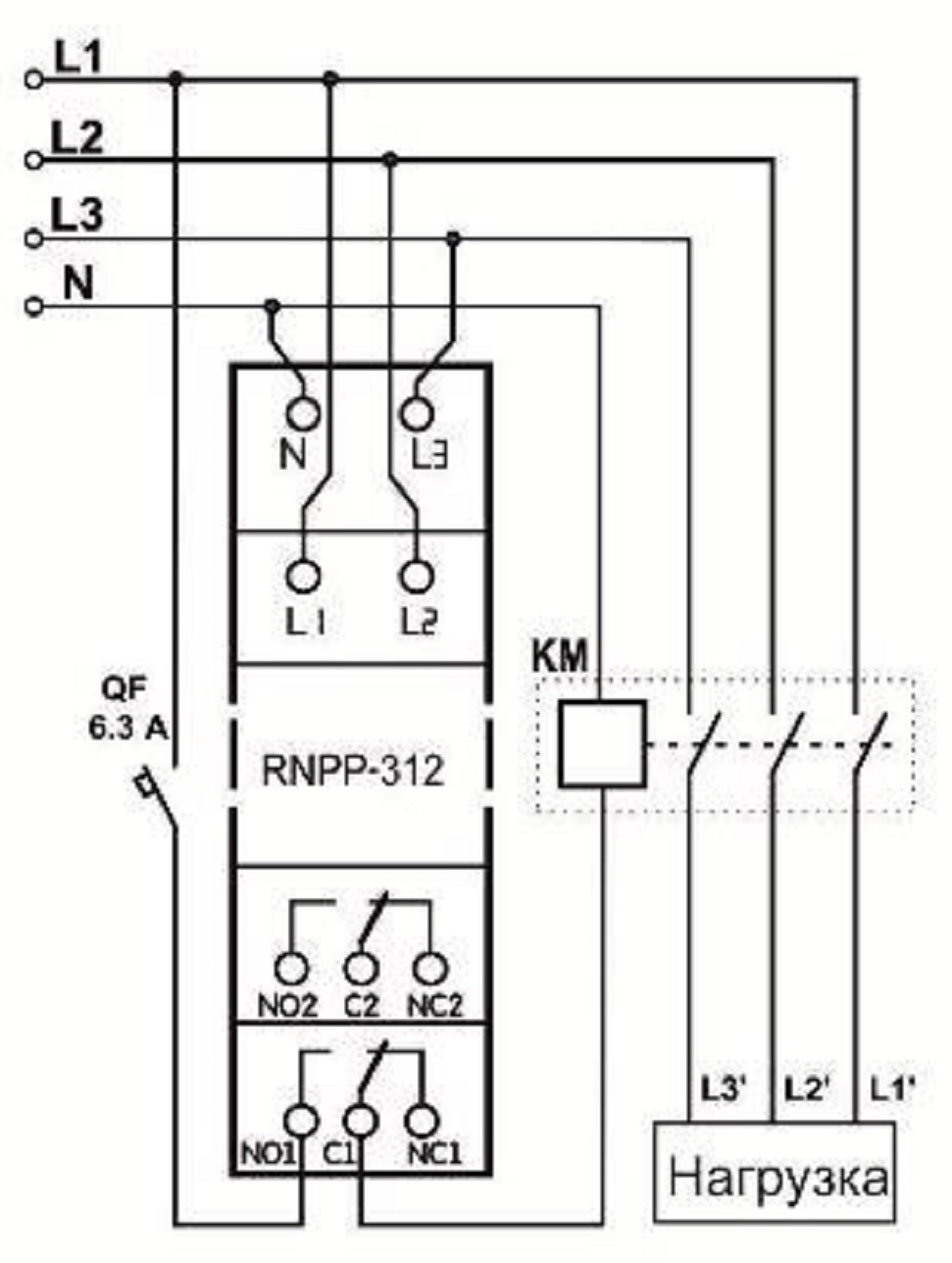

RNPP-312 has been designed for monitoring the permissible voltage level; for monitoring the correct alternation and absence of sticking of phases; for monitoring the full-phase and symmetry of the mains voltage (phase imbalance); to disconnect the load in case of improper mains voltage and neutral failure; for monitoring the quality of the mains voltage after switching off the load and automatically turning it on after restoring the voltage parameters; to indicate the failure in the event of emergency situation and the presence of voltage in each phase. The device provides the possibility of adjusting the parameters (voltage threshold, time of automatic reclosing and time delay of protection operation), selection of the voltage of the monitored mains (400 V or 415 V) and a set of protective functions. After restoring the voltage parameters of the mains, the device enables again the load after the reclosing time.

Three Phase Voltage and Neutral Monitoring, Under voltage, Over voltage, Phase loss (single phasing), Phase Imbalance, Reverse phase sequence, Neutral break protection .3 Phase 4 Wire
