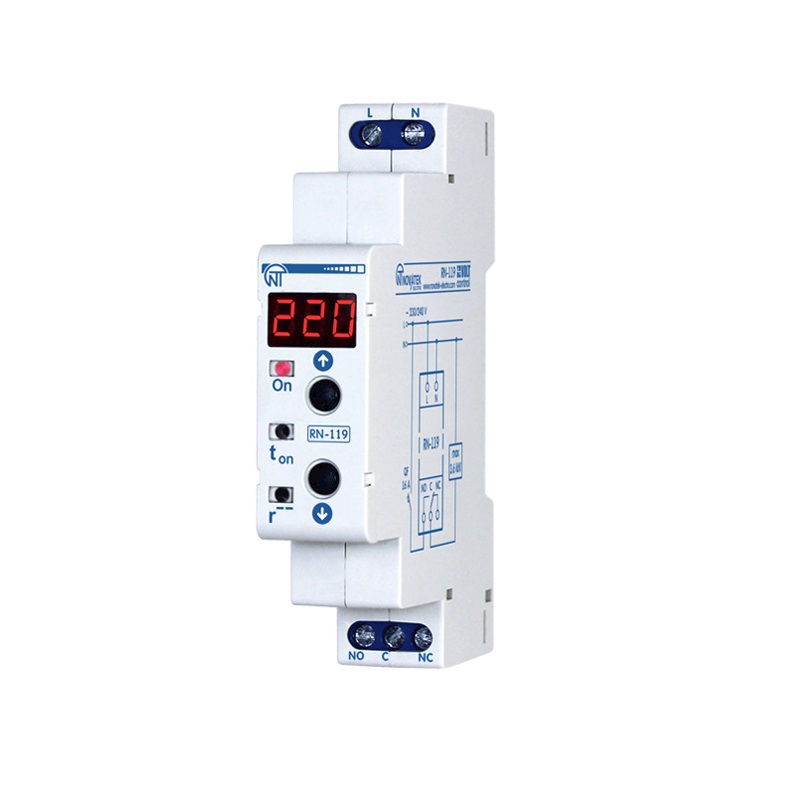

Novatek-Electro RN-119 Single Phase 15 A Voltage Monitoring Relay

RN-119 is designed to disconnect the household and industrial single-phase load in case of unacceptable voltage fluctuations in the mains, and then automatically turn on after restoration of the mains ...

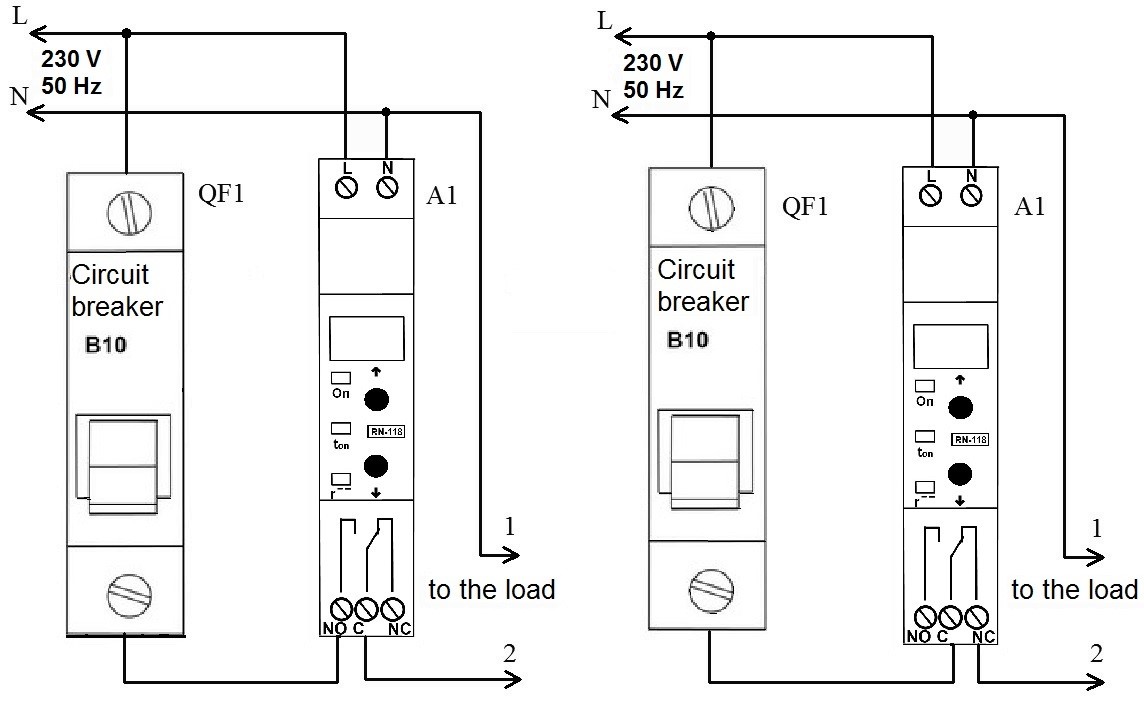

RN-119 is designed to disconnect the household and industrial single-phase load in case of unacceptable voltage fluctuations in the mains, and then automatically turn on after restoration of the mains parameters. In case of load power of up to 2.3 kW (current is up to 10A) for RN-118 or load power of up to 3.6 kW (current is up to 16A) for RN-119, the disconnection is done directly by the device the output contacts of which are included in power supply load outage. In case of higher power, the disconnection is done by the magnetic contactor of the appropriate power, the output contacts of the device are connected to the coil power supply for circuit disconnection (MC is not included in the delivery set). RN-118/RN-119 detects the maximum and minimum voltage values from the moment the power supply voltage is applied to the device or since the last time the stored values were viewed. RN-119 protects single phase loads from Neutral break condition, when reverse voltage flows.

Single Phase Voltage Monitoring, Digital 3 x 7 segment LED display, 1 x SPDT (1NO+1NC) 16A direct, any current through contactors, Under voltage, Over voltage, Neutral break protection
