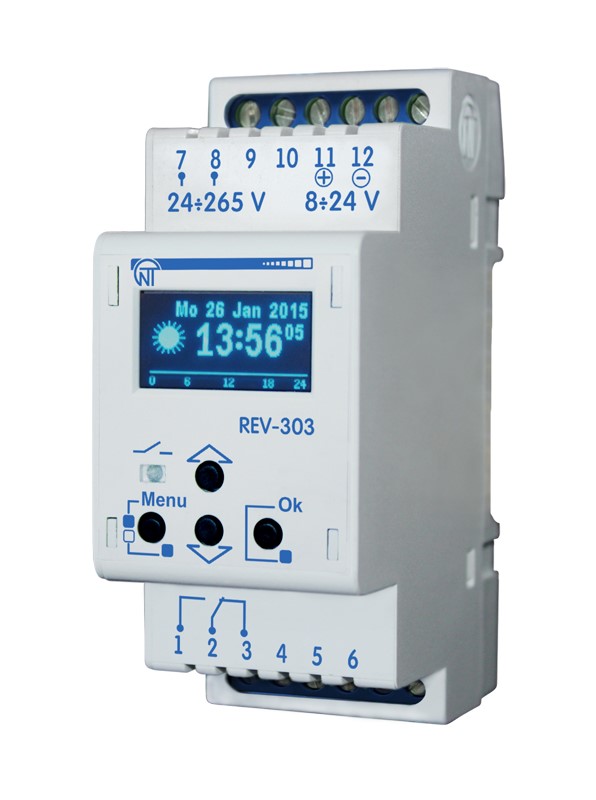

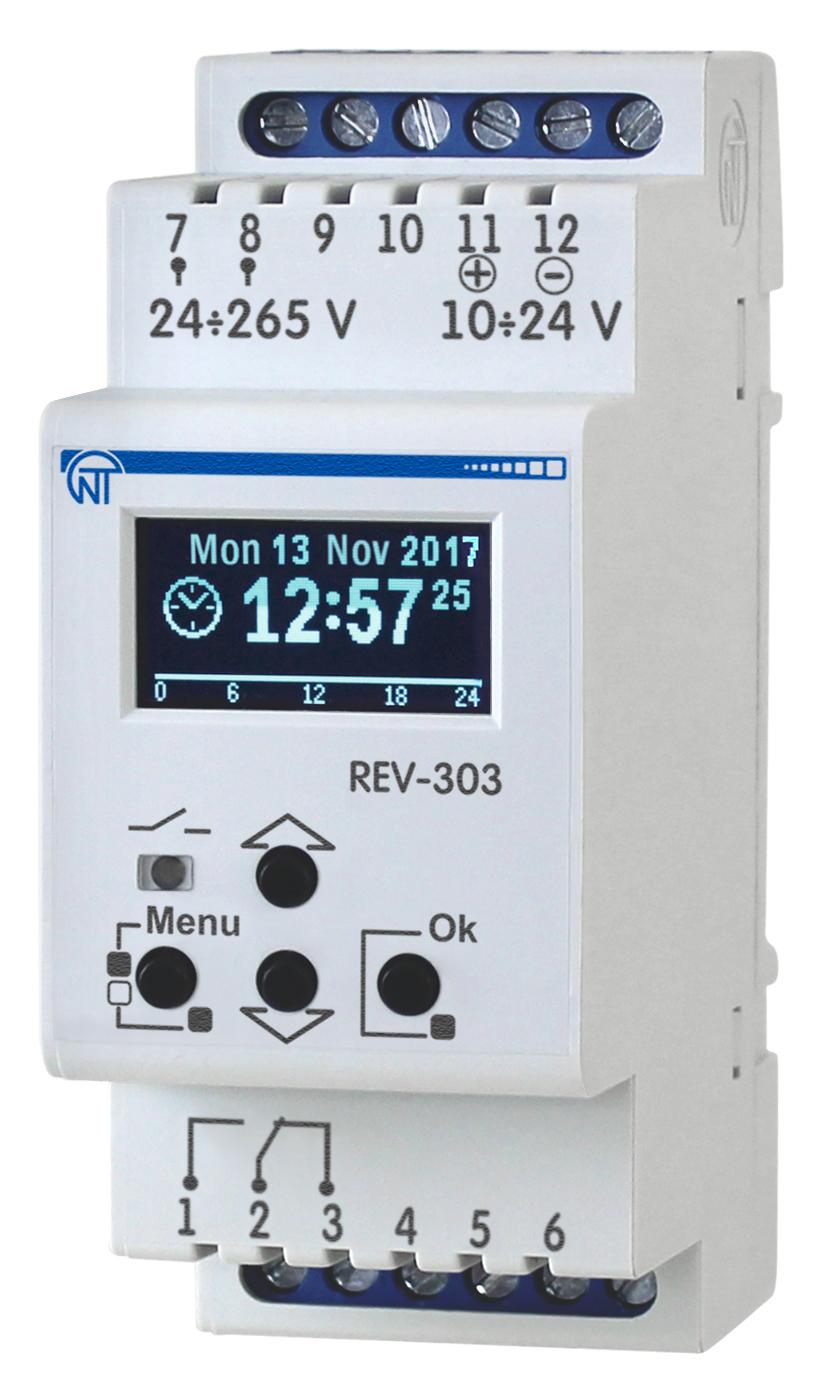

Novatek-Electro REV-303 1 Channel Astronomical Timer

Timer REV-303 features: -Two programs of control with quick switching over between them; -Four operational modes of timer (astronomic, weekly, daily and simple modes); -Calendar with operational life f...

Timer REV-303 features: -Two programs of control with quick switching over between them; -Four operational modes of timer (astronomic, weekly, daily and simple modes); -Calendar with operational life for 6 years period without external power supply; -Accuracy of planned events 1 second and 0.1 second in simple mode of timer; -Total internal memory for 500 independent events, divided between the programs; -Automatic shift for summer time and winter time; -Light-emitting graphic display (OLED); Indication of current state of relays contacts; -Control of timer with 4 buttons, located on the front panel; -Possibility to set an access password for setup menu; -Power supply from the electric line 24 – 265 V 50/60 Hz or from DC source of 8-24 V battery; -16A relay output 250V AC

Multifunctional Astronomical Timer REV-303 is microcontroller based programmable device designed to control the loads in real time without permanent maintenance with minimum expenses & maximum saving.
