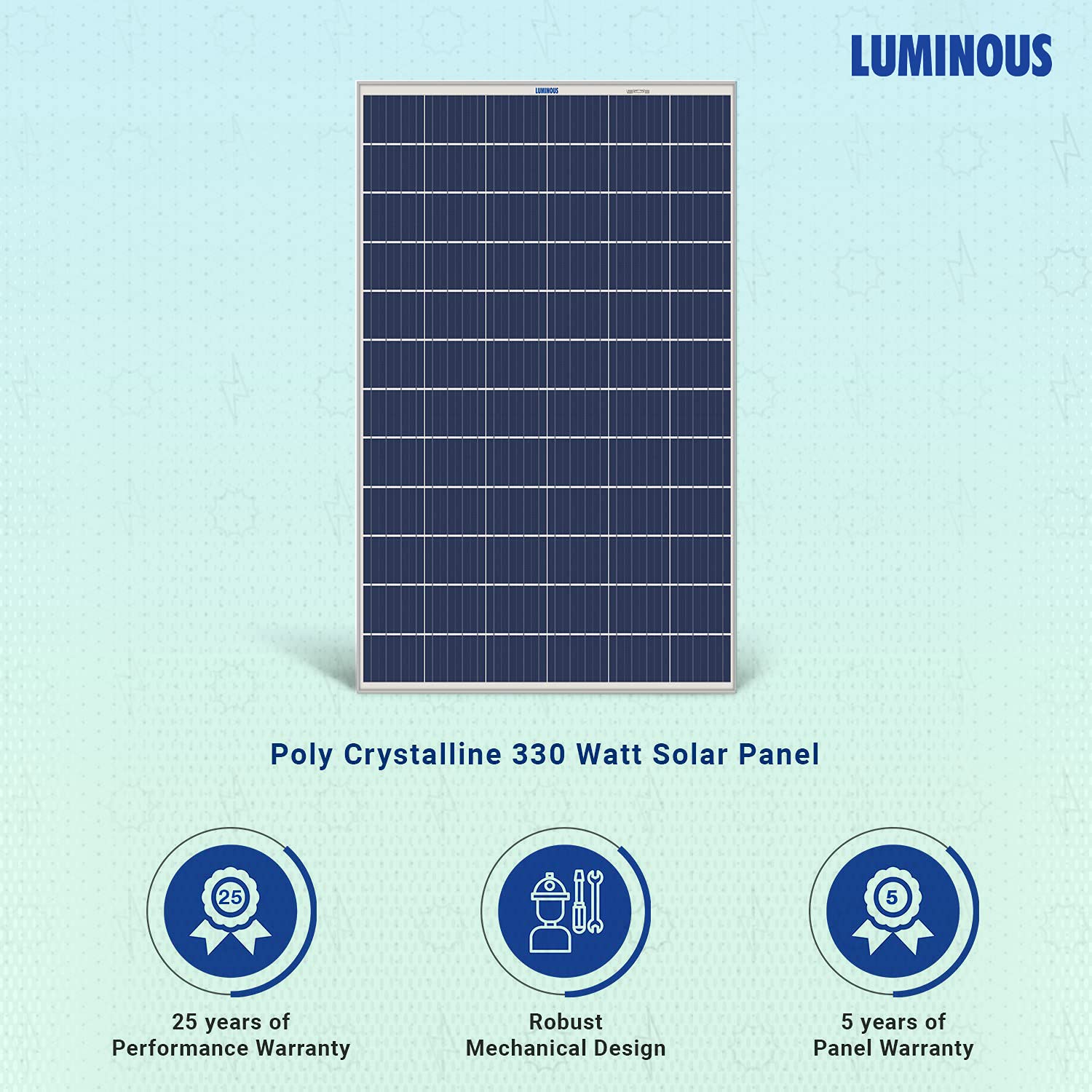

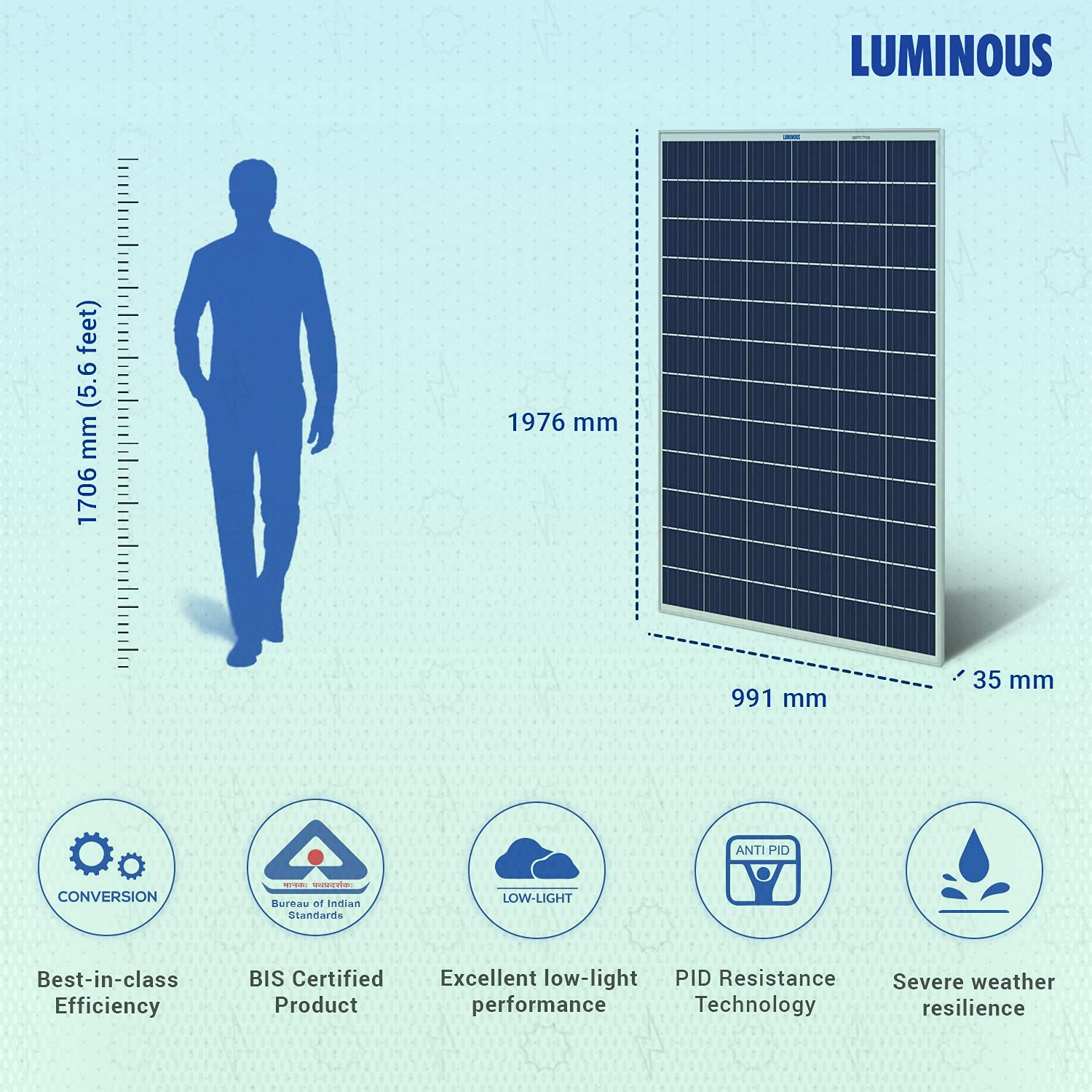

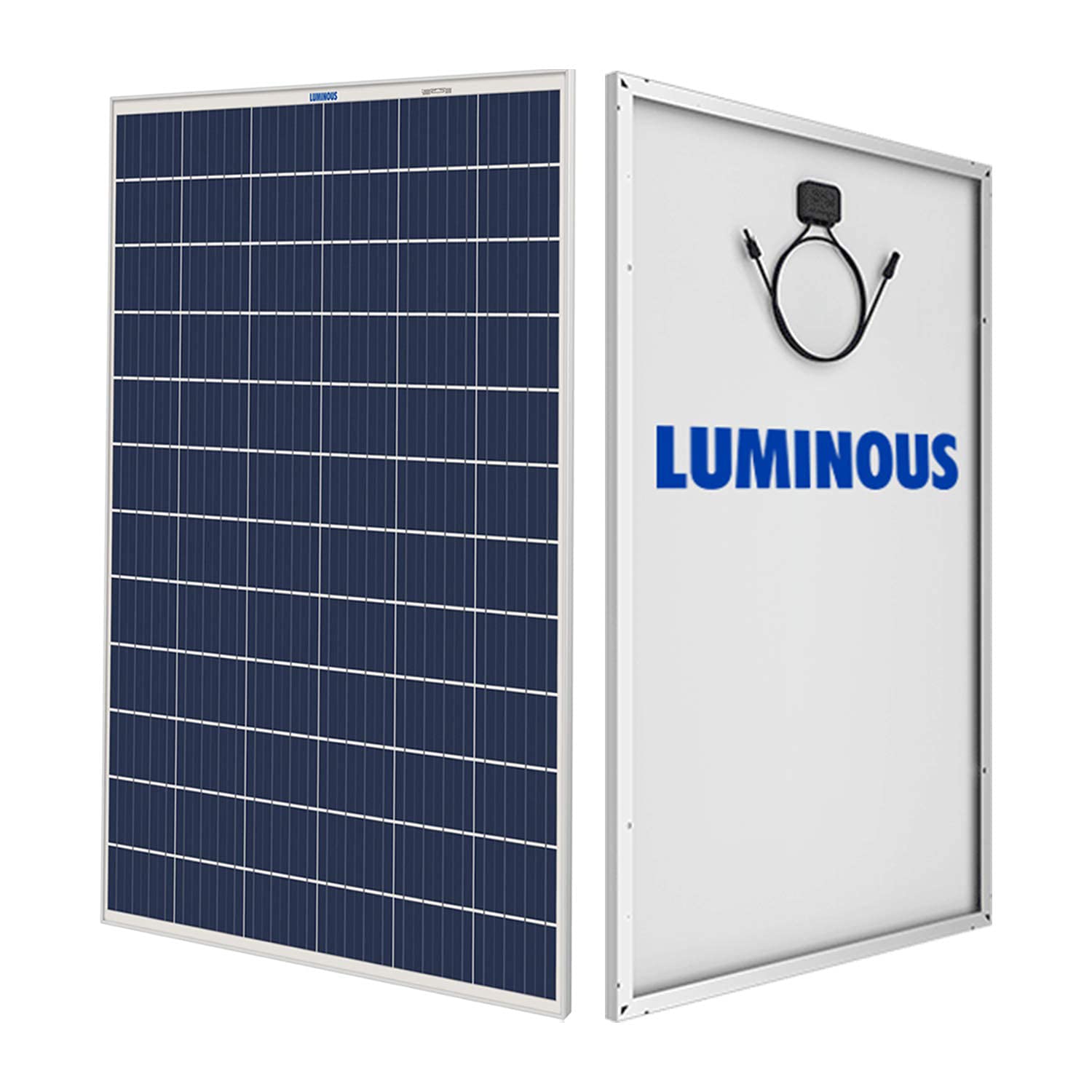

LUMINOUS 330 W Solar Panel

Copy link

Offers

Get GST invoice and save up to 18% on business purchases.
Get GST invoice and save up to 18% on business purchases.
assured-delivery

Assured Delivery

assured delivery Assured Delivery
7_Days_return

7 Days Return

7 days return 7 Days return
7 days return

Payment Protection

7 days return Payment managed by L&T-SuFin
assured delivery

Assured Delivery

7 Days Return

7 Days Return

7 days return

Payment Protection


Specifications

Cell Type

-

Rated Power Pmax

330 W

Number of Cells

72

Efficiency

16.85 %

Module Dimension

1986 x 1001 mm

Brand

LUMINOUS

Frame Material

Aluminium Alloy

Maximum Power Current Imp

9.22 A

Maximum Power Voltage Vmp

38.03 V

Model no

330 WP

UNSPSC No.

32111701

Warranty

60 months

Description

1.Poly crystalline Cells type Panel 2.Capacity - 330 W, 24V 3.Voltage: Voltage at Max Power (Vmax) - 38.03V, Open Circuit Voltage (Voc) - 45.53V 4.Current: Current at Max Power (imax) - 8.68A, Short Ci...

Read More

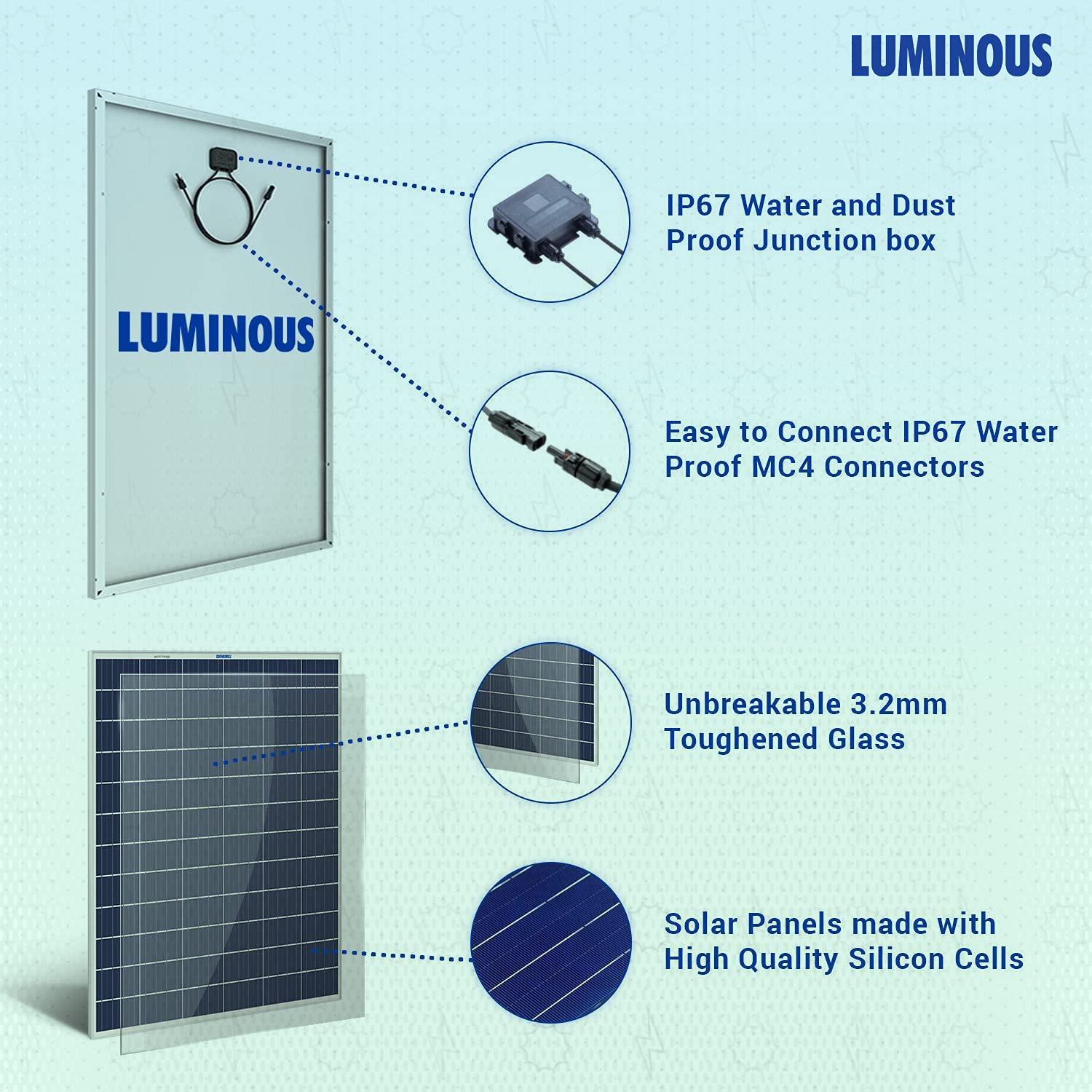

1.Poly crystalline Cells type Panel 2.Capacity - 330 W, 24V 3.Voltage: Voltage at Max Power (Vmax) - 38.03V, Open Circuit Voltage (Voc) - 45.53V 4.Current: Current at Max Power (imax) - 8.68A, Short Circuit Current (isc) - 9.22A 5.25 years performance warranty. 6.Compliance to IEC standards 7.Best in Class conversion efficiency Anti-reflective coating and back surface (BSF) for more light absorption 8.Advanced EVA (ethyl vinyl acetate) encapsulation to give better protection to modules 9.High strength light-weight aluminum frame design for high torsion resistance against winds and snow loads 10.PID resistance Technology (Potential-Induced Degradation) for safety against substantial power loss due to stray currents triggered by certain climate conditions 11.Excellent Low light performance in low visibility in clouds, evening, and morning

Read less

1.Poly crystalline Cells type Panel 2.Capacity - 330 W, 24V 3.Voltage: Voltage at Max Power (Vmax) - 38.03V, Open Circuit Voltage (Voc) - 45.53V 4.Current: Current at Max Power (imax) - 8.68A, Short Circuit Current (isc) - 9.22A 5.25 years performance warranty. 6.Compliance to IEC standards 7.Best in Class conversion efficiency Anti-reflective coating and back surface (BSF) for more light absorption 8.Advanced EVA (ethyl vinyl acetate) encapsulation to give better protection to modules 9.High strength light-weight aluminum frame design for high torsion resistance against winds and snow loads 10.PID resistance Technology (Potential-Induced Degradation) for safety against substantial power loss due to stray currents triggered by certain climate conditions 11.Excellent Low light performance in low visibility in clouds, evening, and morning

Read More Read less

Key Features

1.Poly crystalline Cells type Panel 2.Capacity - 330 W, 24V 3.Voltage: Voltage at Max Power (Vmax) - 38.03V, Open Circuit Voltage (Voc) - 45.53V 4. 5 years Manufacture Warranty 25 years performance

1.Poly crystalline Cells type Panel 2.Capacity - 330 W, 24V 3.Voltage: Voltage at Max Power (Vmax) - 38.03V, Open Circuit Voltage (Voc) - 45.53V 4. 5 years Manufacture Warranty 25 years performance

Read More Read less

Country of Origin

India
