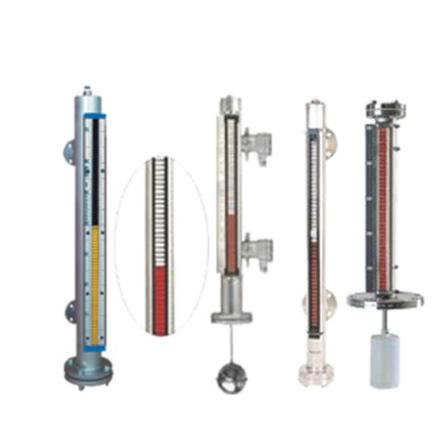

LFIA Digital Magnetic Bi Colour Level Transmitter Upto 5 mtr

Magnetic Level Indicator float moves with level in external chamber (cage) which is coupled with the tank. Indication display mechanism does not come in direct contact with the liquid media. Special de...

Magnetic Level Indicator float moves with level in external chamber (cage) which is coupled with the tank. Indication display mechanism does not come in direct contact with the liquid media. Special designed cylindrical magnetic float as per density of liquid. Magnetically coupled follower capsule or roller or ball indicates the liquid level externally. Indicator system is consists of bi-colour rollers equipped with magnets mounted on rail inside the housing. As the level starts rising or falling magnetic float also travels with liquid level in non-magnetic chamber. The magnetic interaction between magnets in float and bi-colour rollers causes each roller to rotate 180o. These red / white rollers are visible from long distance, giving a good visual indication visibility. Models are available with side & top mounting designs.

Visible level changes are shown by the flag display. Compact & easy to install. Rugged, Life long, good visibility. Optional - Level switches for alarm or controlling.
