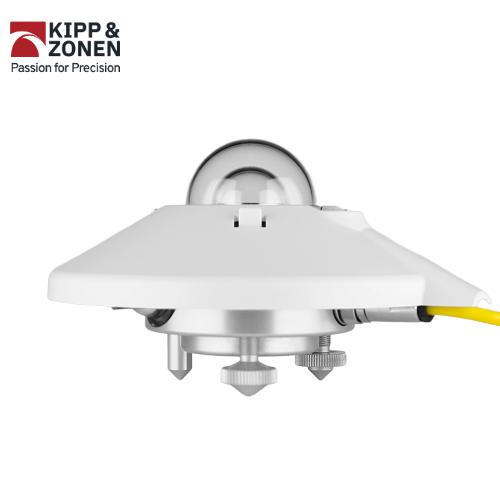

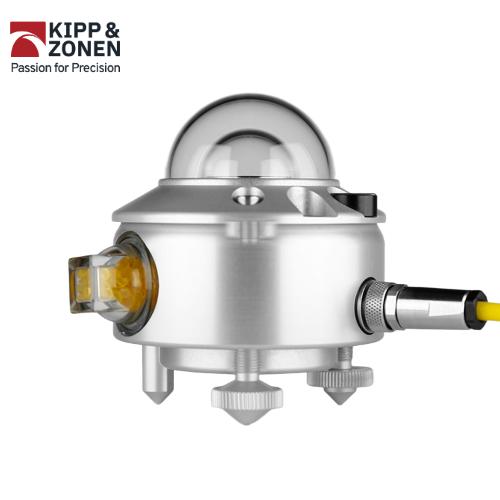

KIPP & ZONEN Pyranometer CMP6 Class B Analog

The CMP6 pyranometer is intended for routine global solar radiation measurement research on a plane/level surface. Fully compliant with ISO 9060:2018 spectrally flat Class B specifications, the CMP6 fe...

The CMP6 pyranometer is intended for routine global solar radiation measurement research on a plane/level surface. Fully compliant with ISO 9060:2018 spectrally flat Class B specifications, the CMP6 features a sixty-four thermocouple junction (series connected) sensing element. The sensing element is coated with a highly stable carbon based non organic coating, which delivers excellent spectral absorption and long term stability characteristics. CMP6 has a similar detector to the CMP3, but has improved performance due to the increased thermal mass and the double glass dome construction. It is ideal for cost-effective, good quality, measurements in hydrological networks and agriculture.The Pyranometer does not require a dedicated power supply. It generates a low voltage output in the estimated range of 0 to 30 mV relative to an irradiance measurement range of 0 to 1500 W/m². When a higher voltage level or a 4 to 20 mA signal is required, the AMPBOX is the perfect solution.

• ISO 9060 spectrally flat Class B • Reliable all-weather performance • Easy to use • No power required • 5-year warranty
