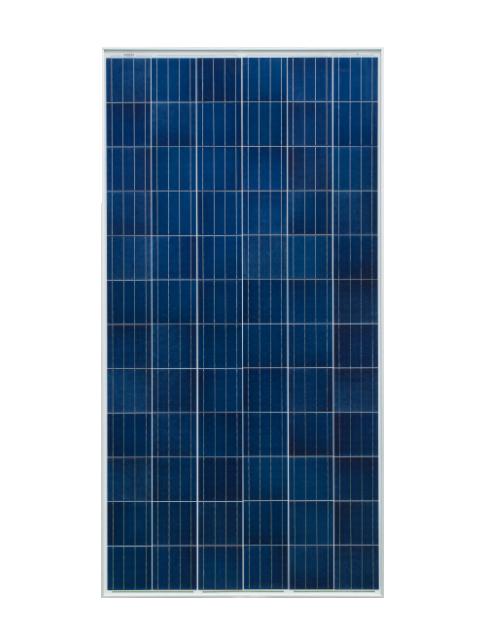

Joint Solar JSD -24545 545 W Mono Perc Solar Panel

Copy link

Offers

Get GST invoice and save up to 18% on business purchases.
Avail trade credit through our lending partners. Know More
assured-delivery

Assured Delivery

assured delivery Assured Delivery
7_Days_return

7 Days Return

7 days return 7 Days return
7 days return

Payment Protection

7 days return Payment managed by L&T-SuFin
assured delivery

Assured Delivery

7 Days Return

7 Days Return

7 days return

Payment Protection


Specifications

Cell Type

Mono Perc

Brand

Joint Solar

Rated Power Pmax

545 W

Number of Cells

144

Efficiency

21.09 %

BIS Approved

Yes

Module Dimension

2278 x 1134 x 35 mm

Conformity to Standard

IS 14286

Frame Material

Anodized Aluminium Alloy

Maximum Power Current Imp

12.99 A

Maximum Power Voltage Vmp

41.96 V

Model Number

JSD -24545

Open Circuit Voltage Voc

49.44 V

Short Circuit Current Isc

13.83 A

Weight

29 kg

UNSPSC No.

32111701

Description

We provide the Solar PV Module to the clients. 12V (Other Voltages Optional) Mono/Multicrystalline Easy Power modules use crystalline solar cells. The solar cells are individually characterised and ele...

Read More

We provide the Solar PV Module to the clients. 12V (Other Voltages Optional) Mono/Multicrystalline Easy Power modules use crystalline solar cells. The solar cells are individually characterised and electronically matched prior to their interconnection. Easy Power modules are a versatile solution for stand-alone power systems, home light systems, solar displays, telecommunication and water pumps. Due to higher system voltages, Easy Power modules are excellently suited for grid-connected solar photovoltaic implementations. FEATURES More Energy increased performance and endurance . 6 to 12% more energy yeild than conventional solar panels. IP 68 rated junction box industry leading quality Excellent Value for Money IEC 61215 certified ISO 9001 certified MNRE approved Encapsulation beneath imported high transmission tempered glass is accomplished using an advanced, UV resistant thermosetting plastic. The encapsulant, ethylene vinyl acetate, cushions the solar cells within the laminate

Read less

We provide the Solar PV Module to the clients. 12V (Other Voltages Optional) Mono/Multicrystalline Easy Power modules use crystalline solar cells. The solar cells are individually characterised and electronically matched prior to their interconnection. Easy Power modules are a versatile solution for stand-alone power systems, home light systems, solar displays, telecommunication and water pumps. Due to higher system voltages, Easy Power modules are excellently suited for grid-connected solar photovoltaic implementations. FEATURES More Energy increased performance and endurance . 6 to 12% more energy yeild than conventional solar panels. IP 68 rated junction box industry leading quality Excellent Value for Money IEC 61215 certified ISO 9001 certified MNRE approved Encapsulation beneath imported high transmission tempered glass is accomplished using an advanced, UV resistant thermosetting plastic. The encapsulant, ethylene vinyl acetate, cushions the solar cells within the laminate

Read More Read less
