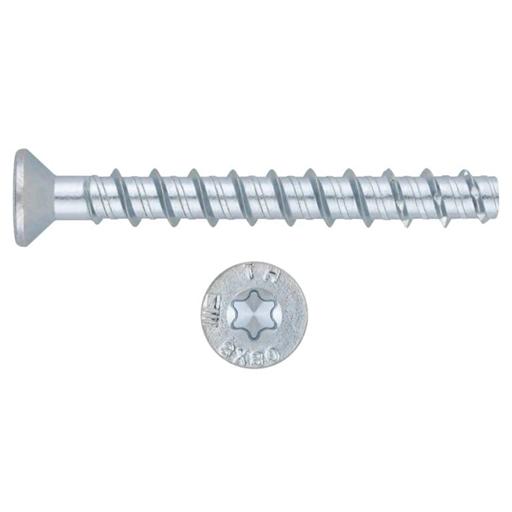

INDEX 5 mm Countersunk Concrete Screw 80 mm Zinc Plated

Screw for cracked and non-cracked concrete, with a countersunk head and TX drive. Direct-fix anchorage, which cuts its own thread during installation. Its patented double thread is capable of embedding...

Screw for cracked and non-cracked concrete, with a countersunk head and TX drive. Direct-fix anchorage, which cuts its own thread during installation. Its patented double thread is capable of embedding itself in the concrete and ensuring maximum load-bearing capacity. The shape of the head ensures the screw sits flush with the surface after installation. Designed for structural and non-structural fixings in concrete. It can be used to install items such as balustrades and handrails, shelving and racks, or glazing and windows. It is approved to the highest quality standards. It holds European type-approval ETA 20/0046 (Option 1) and ETA 20/0494; seismic approval C1 (models from Ø6 to Ø18) and C2 (models from Ø8 to Ø18); and fire resistance approval R30-120. It is also VdS CEA 4001 certified for the installation of sprinkler systems (models from Ø8 to Ø18). MADE FROM: The anchor is made from galvanised steel. This is a highly durable material, ensuring the longevity of the installation.

Direct fixing screw, for cracked and non-cracked concrete. Designed for fixing high-load elements. The countersunk head allows the screw to be flush with the surface after installation.
