Specifications

Display Type

LCD

Brand

HABOTEST

Model

HT118A

DC Voltage Range

600 mV - 750 VAC

AC Voltage Range

600 mV - 750 VAC

DC Current Range

600 μA - 10 A

AC Current Range

600 μA - 10 A

Resistance Range

600 Ohm - 60 MOhm

Capacitance Range

10 nF - 100 mF

Frequency

10 Hz - 10 MHz

Dimension (L x W x H)

188 x 88 x 58 mm

Temperature

-40 to 1000 deg C

UNSPSC No.

41113630

Description

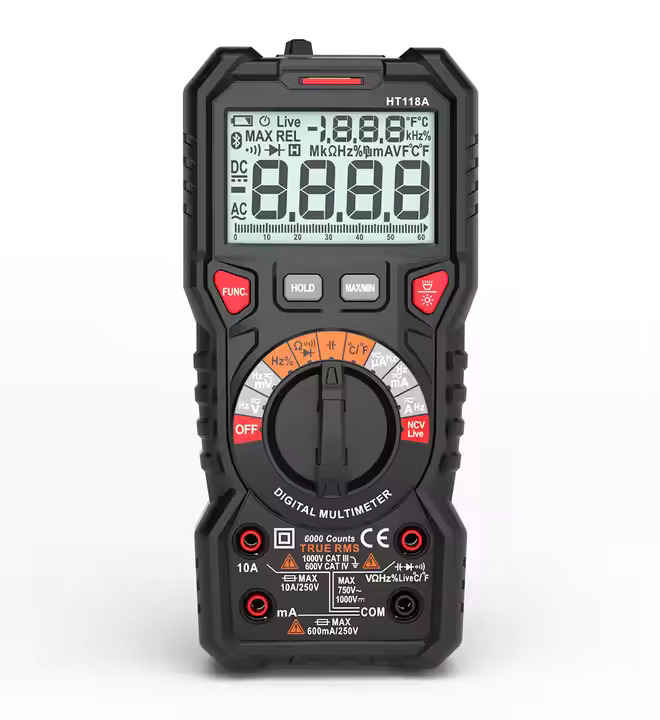

The HABOTEST HT118A TRMS 6000 Counts Digital Multimeter with LED light Indication and Double color LCD display provides accurate Automatic measurement. This Digital Multimeter is Auto range, and it has...

Read More

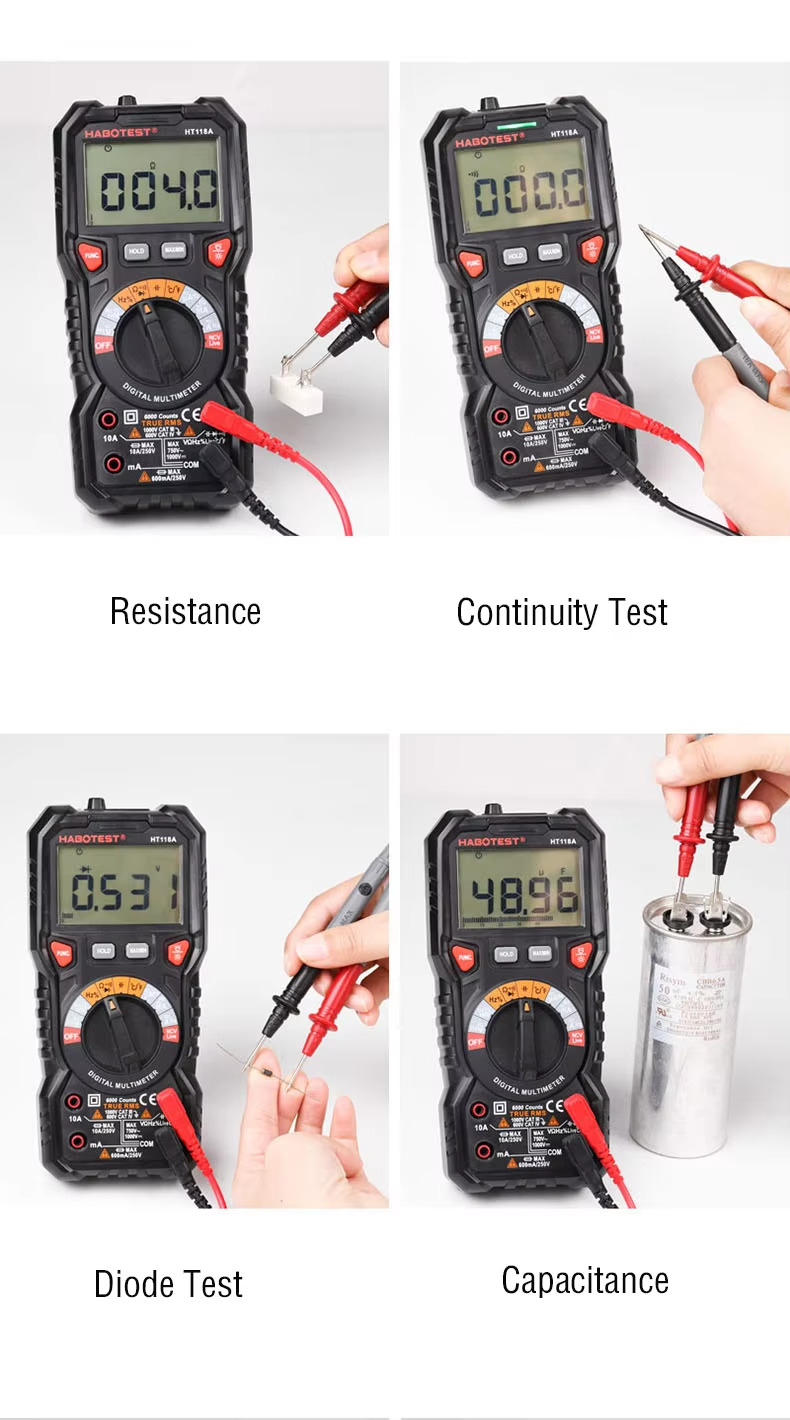

The HABOTEST HT118A TRMS 6000 Counts Digital Multimeter with LED light Indication and Double color LCD display provides accurate Automatic measurement. This Digital Multimeter is Auto range, and it has large double colored LCD display and Bar graph, also has very convenient input LED indication light and features with AC DC current & voltage Test, Continuity, Data hold, TRUE RMS function etc. with high accuracy and easy operation. AC Voltage: 600mV/6V/60V/600V/750V, accuracy: ±(0.5%+3) DC Voltage: 600mV/6V/60V/600V/1000V, accuracy: ±(0.5%+3) AC Current: 600uA/6000uA/60mA /600mA, accuracy: ±(0.8%+3) 10A, accuracy: ±(1.5%+3) DC Current: 600uA/6000uA/60mA /600mA, accuracy: ±(0.8%+3) 10A, accuracy: ±(1.5%+3) Resistance:600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ, accuracy: ±(0.8%+3) Capacitance:10nF/100nF/1uF/10uF/100uF/1mF/10mF/100mF, accuracy: ±(5%+3) Frequency: 10Hz/100Hz/1kHz/10k Hz/100k Hz/1M Hz/10MHz, accuracy: ±(1%+3) Temperature: -40℃~1000℃, accuracy: ±(1%+3) Duty: 1%~99%, accuracy: ±(1%+2)

Read less

The HABOTEST HT118A TRMS 6000 Counts Digital Multimeter with LED light Indication and Double color LCD display provides accurate Automatic measurement. This Digital Multimeter is Auto range, and it has large double colored LCD display and Bar graph, also has very convenient input LED indication light and features with AC DC current & voltage Test, Continuity, Data hold, TRUE RMS function etc. with high accuracy and easy operation. AC Voltage: 600mV/6V/60V/600V/750V, accuracy: ±(0.5%+3) DC Voltage: 600mV/6V/60V/600V/1000V, accuracy: ±(0.5%+3) AC Current: 600uA/6000uA/60mA /600mA, accuracy: ±(0.8%+3) 10A, accuracy: ±(1.5%+3) DC Current: 600uA/6000uA/60mA /600mA, accuracy: ±(0.8%+3) 10A, accuracy: ±(1.5%+3) Resistance:600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ, accuracy: ±(0.8%+3) Capacitance:10nF/100nF/1uF/10uF/100uF/1mF/10mF/100mF, accuracy: ±(5%+3) Frequency: 10Hz/100Hz/1kHz/10k Hz/100k Hz/1M Hz/10MHz, accuracy: ±(1%+3) Temperature: -40℃~1000℃, accuracy: ±(1%+3) Duty: 1%~99%, accuracy: ±(1%+2)

Read More Read less

Key Features

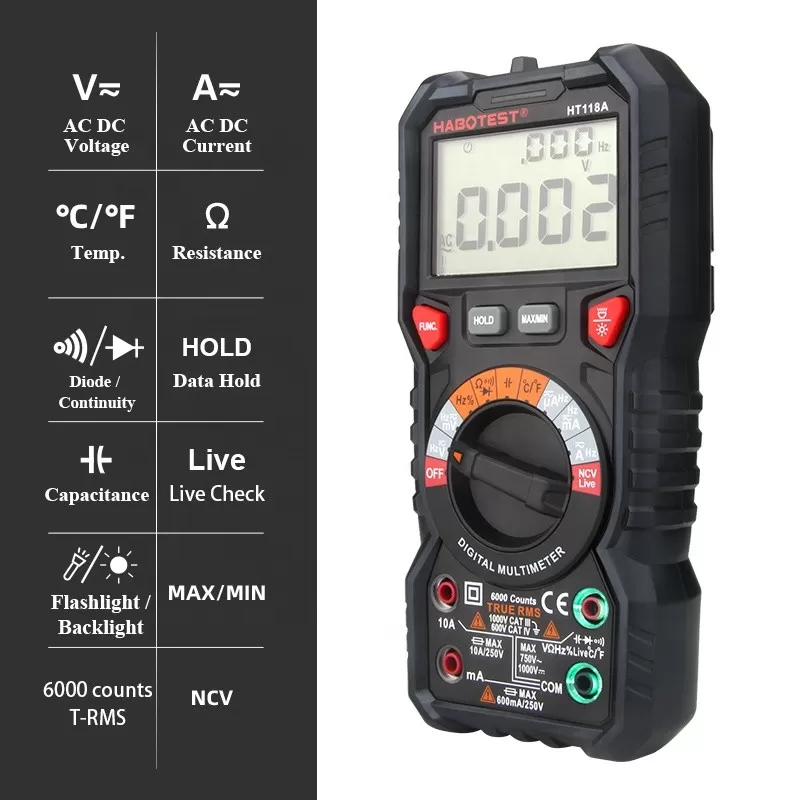

LCD Dual display 6000 Counts, Auto Range, 1KHz Bandwidth, Bargraphs, Live Wire test, NCV, Diode Test, Continuity, MAX /MIN Measurement, Data Hold, True RMS, Dual Backlight, Low power indication, Auto

LCD Dual display 6000 Counts, Auto Range, 1KHz Bandwidth, Bargraphs, Live Wire test, NCV, Diode Test, Continuity, MAX /MIN Measurement, Data Hold, True RMS, Dual Backlight, Low power indication, Auto

Read More Read less

Country of Origin

China
