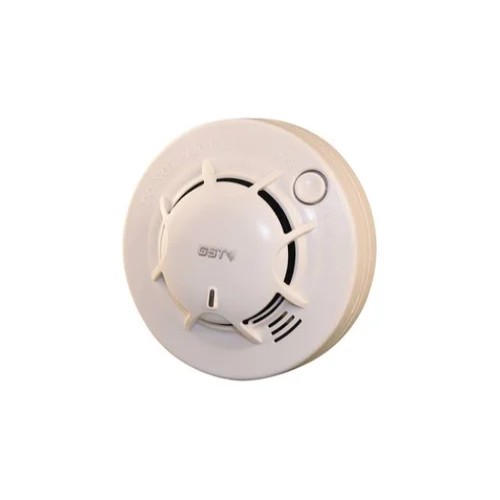

GST Smoke Fire Detectors S-9102R

Battery powered stand alone smoke detector, adapting optical chamber, to detect smoke produced by fire, gives high volume sound notification in case of alarm. It is suitable for small projects like hom...

Battery powered stand alone smoke detector, adapting optical chamber, to detect smoke produced by fire, gives high volume sound notification in case of alarm. It is suitable for small projects like home application, small shop, pub, and etc.Operating Voltage 3VDC (2-piece of AA LR6 alkaline batteries) Battery life 3 years Indicator Red, flashes in every 45 seconds in normal condition Sound Level 80dB@3m Detection Area 60m2 ~100m2 Output control type Volt-free normally open Output capacitance (S-9102R) Maximum voltage: 30V Maximum current: 60mA Network Capacity (S-9102N) Maximum 30 smoke detectors Environmental Temperature -10°C ~ +50°C Relative Humidity ≤95%, non condensing Material of Enclosure ABS, white Dimensions Diameter 120mm Height 58mm (with base) Mounting Hole Distance 50mm ~ 74mm Weight About 181g The detector is installed to ceiling or solid
