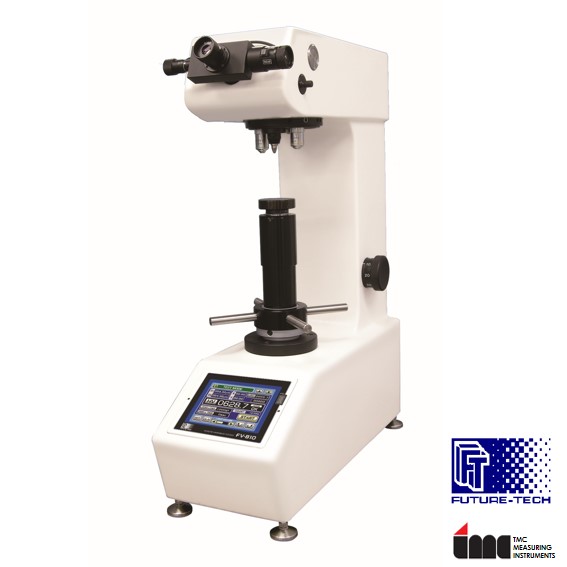

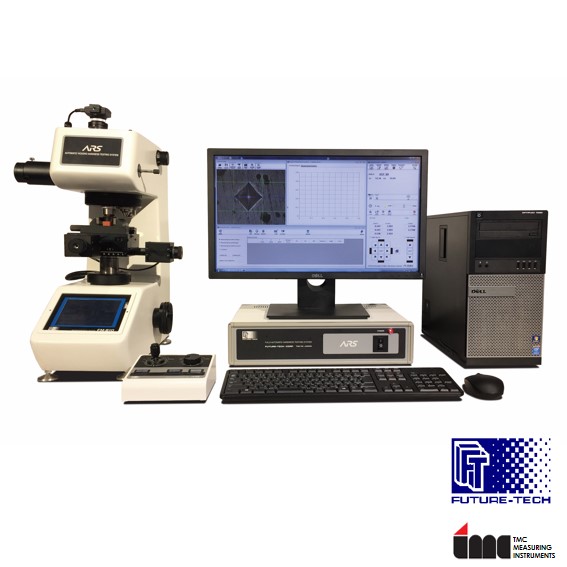

Future-Tech Fixtured or Permanent Hardness Tester HV8OO FV SERIES

• Loads range from 0.3 kgf to 50 kgf under two different test load types. • Loading Mechanism can be Automatic Load And Release Method • Initial applying load speed at 120 µm/sec which automatic change...

• Loads range from 0.3 kgf to 50 kgf under two different test load types. • Loading Mechanism can be Automatic Load And Release Method • Initial applying load speed at 120 µm/sec which automatic changes to actual applying load of 60 µm/sec. • Two standard object lends of 20x and 10x. (option to add more lens) • Standard diamond Vickers indenter with option to have dual indenters. • Standard stage size of 100 x 100 with option for bigger stage size. • Maximum specimen size possible 210 mm (height) and 165mm (Depth) • FV Series Vickers Hardness Tester :  FV 110  FV 310  FV 810 • Accuracy Conform to JIS B-7734 / B-7725, ASTM E-384, and ISO 6507-2.

• Precise measurement of (HV) Vickers scale, (HK) Knoop, (HBS, HBW) Brinell, (Kc) Fracture Toughness. • One touch selection on touchpad. • Lab friendly and ideal solution for materials labs.
