Endeavour Upto 125 ton EOT Crane Double Girder Electric

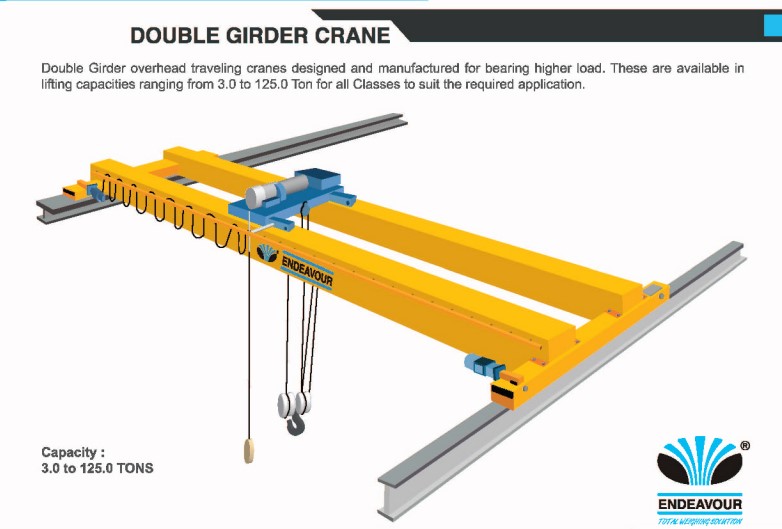

DOUBLE GIRDER CRANE Double Girder overhead traveling cranes designed and manufactured for bearing higher loads. These are available in lifting capacities ranging from 3.0 to 125.0 Ton for all Classes t...

DOUBLE GIRDER CRANE Double Girder overhead traveling cranes designed and manufactured for bearing higher loads. These are available in lifting capacities ranging from 3.0 to 125.0 Ton for all Classes to suit the required application. The End Carriages are fabricated from rolled steel section with suitable diaphragms & stiffeners to give strong construction. Rubber buffers are provided on both sides of end carriages to absorb jerks. The Gear Boxes are made of accurate hob cut helical/spur gears & pinions having hardness 250 to 350 BHN made from carbon alloy steel. All gears & pinions running on antifriction type ball/roller bearings in totally enclosed oil bath giving constant splash lubrication. Twin drive arrangement will be provided for Long Travel motion which contains motors, gear boxes, brakes etc. coupled together. The crane duty Electric Motors as per IS 325 are suitable for frequent starting, reversing & braking.

Design and Manufactured in compliance to IS 807 & IS 3177 for different applications to appropriate class & duty. Hoist/Crab machinery designed in compliance to IS 3938.
