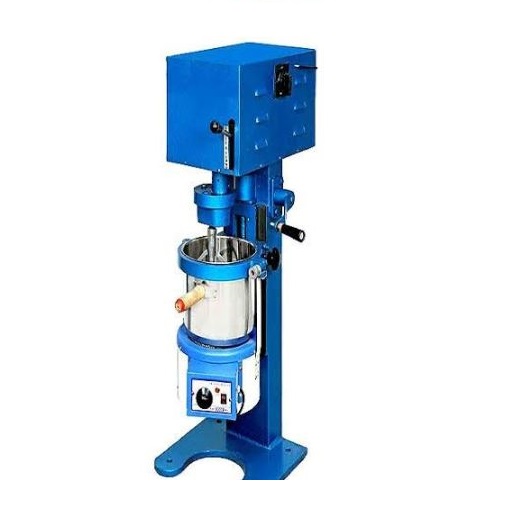

EIE Planetary Mixer Machine 150 kg/hr TM-052

Electrically operated, fitted with heating jacket for thorough mixing of Bitumen. The mixer is operated by 0.5 HP single phase electric motor connected to epicyclic type stainless steel paddle to impar...

Electrically operated, fitted with heating jacket for thorough mixing of Bitumen. The mixer is operated by 0.5 HP single phase electric motor connected to epicyclic type stainless steel paddle to impart both planetary and revolving motion for uniform mixing. Mixer blade has low speed of 140 ± 5 rpm and high speed of 285 ±10 rpm,while it also has a planetary movement of 62 ± 5 rpm in low range and planetary movementof 125 ± 10 rpm in high range. A stainless steel bowl of approx. 5 lItr. capacity with handle is also supplied. The 500 Watts heating jacket with energy regulator to control the temp. is fitted below the bowl. Complete unit is supported ona strong iron frame. Suitable to work on 230V, 50 Hz, AC single phase.

The planetary mixer plays a crucial role in asphalt laboratories to create consistent samples for mechanical and performance testing. It ensures homogeneous mixing, precise sample preparations.
