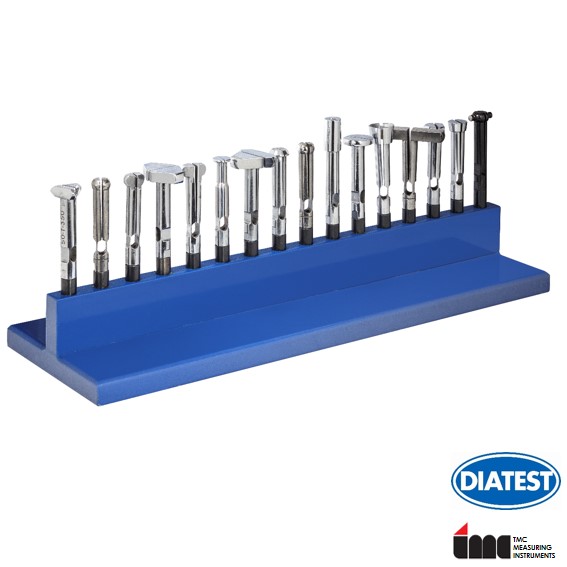

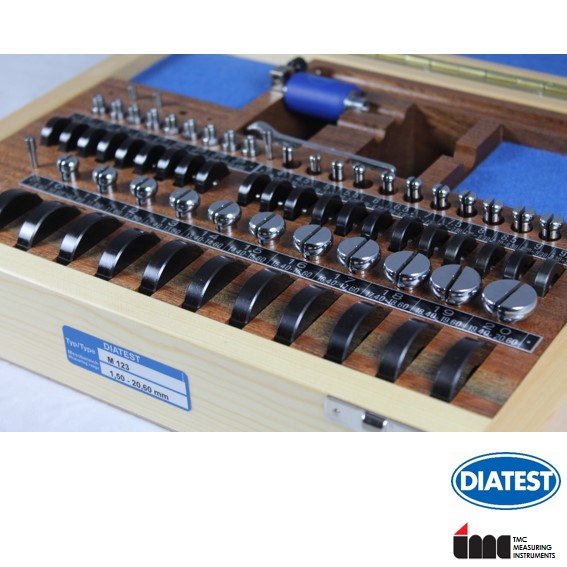

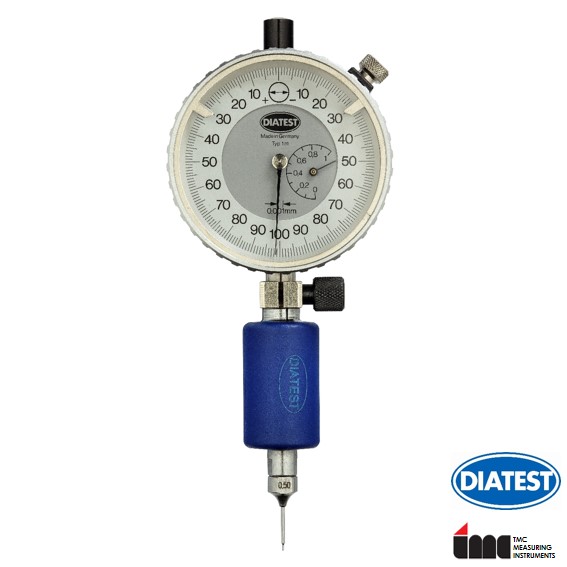

Diatest Bore Dial Gauge Standard Bore Gauge Set 0.47 ~ 41.1 mm

 Availability of large variety of accessories. Repeatability (standard probes) :  Manual gauging : 1μm  Stationary gauging in stand : < 0.5μm  Linearity (standard probes) :  Size 0.5 – 1.50 : max....

 Availability of large variety of accessories. Repeatability (standard probes) :  Manual gauging : 1μm  Stationary gauging in stand : < 0.5μm  Linearity (standard probes) :  Size 0.5 – 1.50 : max. 2% of travel, min. 0.001 mm.  Size 1.75 – 40 : max. 1% of travel, min. 0.001 mm.  Measuring range : 0.06 mm upto 2.2 mm (according to size of probe).  Probe : Hardened steel  Contact points : Hard chrome or ceramic (optional on request – additional)  Tapered Needle: Hardened steel or carbide with lapped taper.  Extensive accessories include Adaptor, Indicator Holders, Depth Extension, Floating Holders, Checking Stands, Depth Stops, Right Angle Attachments, etc. (optional on request – additional). Special accessories like special depth stops, depth extensions, or checking stands with a larger measuring stroke available on request. (optional on request – additional).

Universal Bore Gauge for standard and through bores.  Measurement of different bore profiles & detect geometrical shapes defects such as ovality, concentricity, barrel-shape, etc.
