Diatest Bore Dial Gauge Plunger Probe Set 19.5 to 332.0 mm

• 2 point comparative bore gauge for Shop floor gauge. • Single measurement of larger diameters. • Self-centering gauge using centering bridge to detect shape deviations. • Quick setting does not requi...

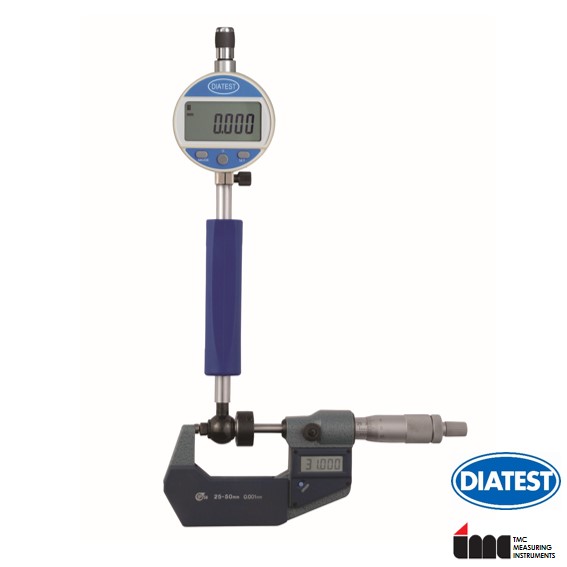

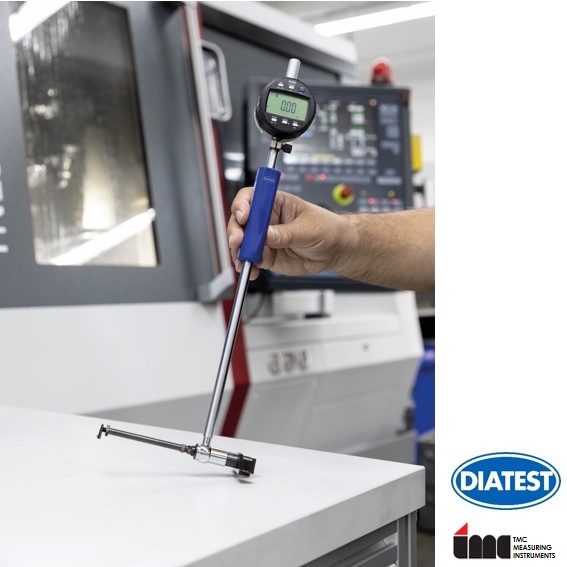

• 2 point comparative bore gauge for Shop floor gauge. • Single measurement of larger diameters. • Self-centering gauge using centering bridge to detect shape deviations. • Quick setting does not require setting master. • Quick to assemble to meet different bore size. • Repeatability: ≤ 0.001 mm. • Linearity: max. 0.006 mm within measuring range. • Measuring depth: upto 3 meters. • Plunger Probe with carbide contact. • Contact radii: R 8.0. • Carbide anvil HMT. • Contact point travel transmission to the indicating unit in the ratio 1:1. • The bore diameter is determined by a pendulum movement of the gauge in the bore. • Calibration (zero setting) can be easily made in a micrometer. • Gauge automatically self-centers via a centering bridge. • Range of application: Standard Plunger Probes: Ø 19.5 to 332.0 mm. • Detect shape deviations of the bore such as conical form, barrel shape, out-of-roundness etc. • Plunger Probes can also be used for gauging parallel distances.

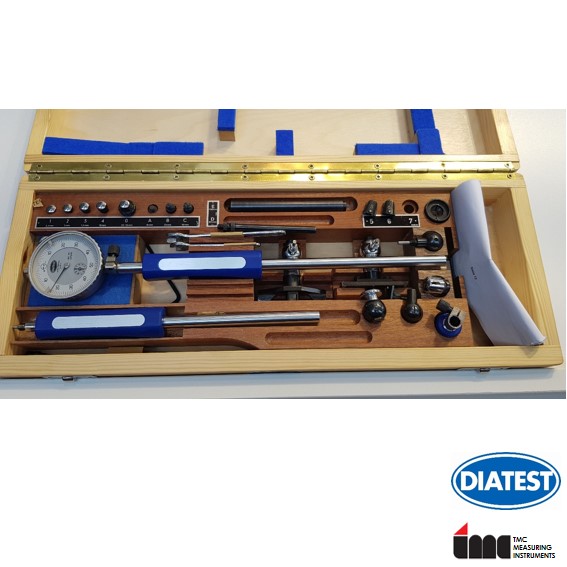

BORE GAUGE SET FOR LARGE RANGE - • Easy handling and adaptability to most bore gauging applications and large measuring ranges. • Offered in two styles i.e. Standard Plunger Probes (Through Bores).
