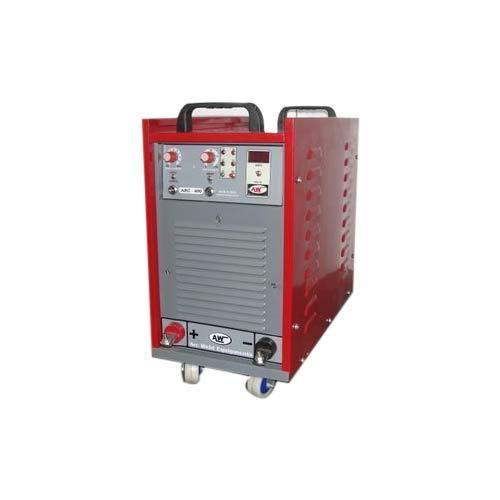

Arc Welding Machine

Arc 600 Inverter Welding Machine For Mmaw/tig Welding, Input-3phase, 440v, 50hz, Output Current Range- 10 To 600amps Dc, Ocv-70-80v, With Digital Ammeter And Voltmeter Seperatly Fitted In ...

Arc 600 Inverter Welding Machine For Mmaw/tig Welding, Input-3phase, 440v, 50hz, Output Current Range- 10 To 600amps Dc, Ocv-70-80v, With Digital Ammeter And Voltmeter Seperatly Fitted In Front Panel, Suitable To Weld 450 Amps In 100% Duty Cycle. Calibration Certificate (ertl Mumbai) And Test Certificate Will Be Provide.. Igbt Controle Technology Used With All The Protection I.e. Over Voltage, Under Voltage, Single Phasing, Over Tempreture, & Over Current With Sepereate Indicators. Igbt Based Inverter Controlled Mmaw/ Tig Welding Equipments With In Built H.f Unit For Tig Welding.model Arc 600 Input Supply 350 V - 465 V Phase / Frequency 3, 50hz-60hz Input Kva @ 60% 32 Kva Input Kva @ 100% 22 Kva Input Hp 42 Ocv - Dc 75 - 85 Current Range Amps 10 - 600 Current @ 60% 600 Current @ 100% 450 Dynamic Air Force 0 - 100% Class Of Protection Ip 23 Digital Panel Meter (current) Provided
