355 Gear Coupling XC2335 195000 Nm 1800 rpm

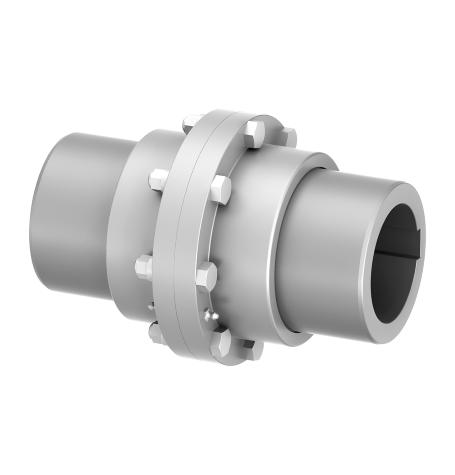

Gear Couplings TNZ ZCAUU / TNZ ZCBUU Extended universal hubs Unlike the model TNZ ZCA, the RINGFEDER® TNZ ZCAUU has two elongated hubs the length of which can be adapted to the plant requirements. Co...

Gear Couplings TNZ ZCAUU / TNZ ZCBUU Extended universal hubs Unlike the model TNZ ZCA, the RINGFEDER® TNZ ZCAUU has two elongated hubs the length of which can be adapted to the plant requirements. Compared to the TNZ ZCAUU, the coupling model RINGFEDER® TNZ ZCBUU is equipped with an O-ring carrier which facilitates installation by changing the mounting sequence. For mounting the coupling, unscrew the cover and place it on the shaft. Mount the hub onto the shaft, slide the sleeve onto the hub and fasten the O-ring carrier to the sleeve. This way of mounting is advantageous when large couplings are involved. Like the model ZCAUU, the ZCBUU has two elongated hubs the length of which can be adapted to the plant requirements

Torsionally rigid gear coupling made of high-quality steel Very compact design results in a high-power density Compensates for angular, radial and axial shaft offset
