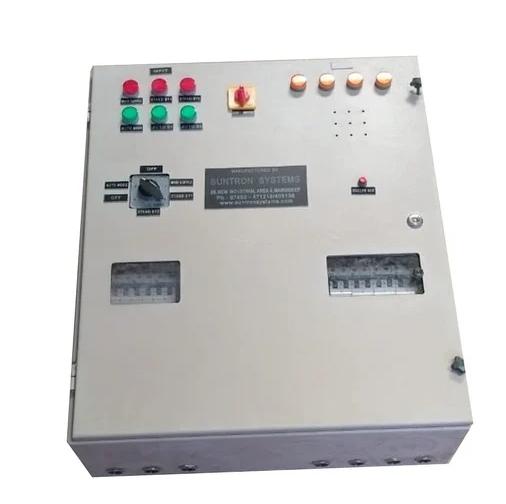

30 A 230 V Single Phase Changeover Switch Panels

Control and Distribution panel for CLS Supply in 25 KV ac traction systems for 30Amp. CLS Panel for 5 KVA AT. This panel confirm to the RDSO specification no. TI/SPC/PSI/CLS/0020 (CORE APPROVED ITEM) a...

Control and Distribution panel for CLS Supply in 25 KV ac traction systems for 30Amp. CLS Panel for 5 KVA AT. This panel confirm to the RDSO specification no. TI/SPC/PSI/CLS/0020 (CORE APPROVED ITEM) and is available in capacities of 30A for installation with 5KVA AT respectively. The Automatic Supply Changeover Panels for CLS provides continuous power supply to the signaling system from the three available power sources. Normally the load remains on the Main supply and only when it is not available it automatically changes to the Standby 1 or stand by 2 supplies, in that sequence. An alarm buzzer sounds whenever any of the supply fails, or Main supply is restored. Manual selection of the supplies is also possible with the help of a rotary switch so that supply can be made available to the signaling system during the maintenance of the automatic systems or its failure. The normal operating range of Panels is from 165V to 270V AC.
