VITAL MACHINERY CORPORATION 3 - 5 kg Industrial Dryers VTD-03 81 deg Electric

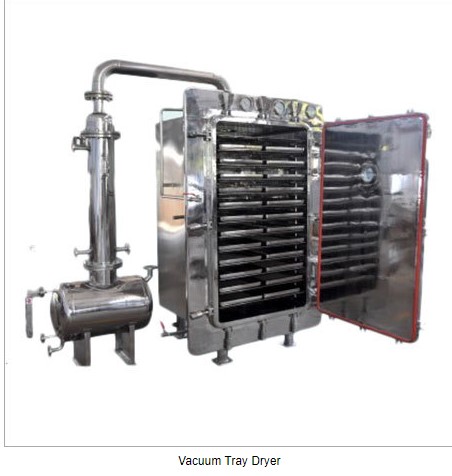

Vacuum Tray Dryer TECHNICAL SPECIFICATION OF VACUUM TRAY DRYER The main Body / Vacuum chamber are SS 316 plate with heavy-duty SS 316 flange and stiffeners. SS 316 Door with heavy duty SS 316 Flange. ...

Vacuum Tray Dryer TECHNICAL SPECIFICATION OF VACUUM TRAY DRYER The main Body / Vacuum chamber are SS 316 plate with heavy-duty SS 316 flange and stiffeners. SS 316 Door with heavy duty SS 316 Flange. Shelves Hollow type pads with SS 316 Sheet and Baffles. Condenser (Shell and tub) and Receiver SS 316 with Isolation valve and Flow glass in between to monitor condensation. Trays in SS 316 rounded corners and edges. Digital Temperature controller (FLP) with solenoid controlled Pneumatic operated valve at Hot water inlet. (Optional). Provision for Validation Port on Body. Digital Temp., Indicator (FLP) at H.W. inlet 81. outlet. (Optional). Digital type Vacuum gauge and Digital Temperature Indicator (FLP) in vapor line (Optional) Pressure release valve in steam line. View Glass / Light glass provided on vacuum chamber Door, Body and Receiver. Silicon food grade gasket for door. Nitrogen purging valve provided on Vacuum chamber. Vacuum break valve provided on vacuum, chamber.
