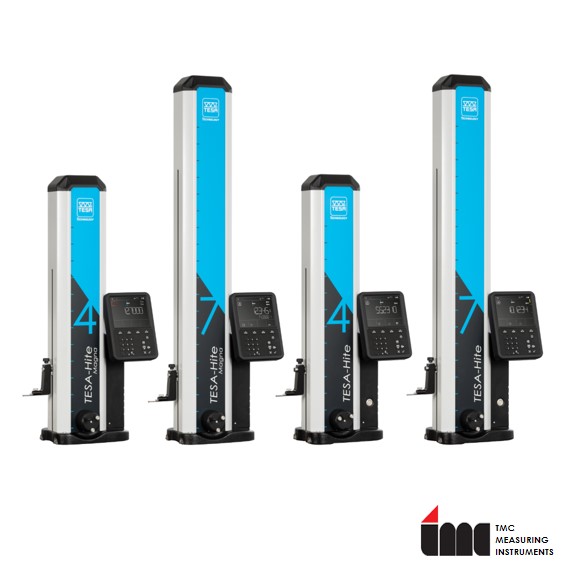

Tesa Swiss HITE 400 / 700 Height Gauge 400 - 700 mm

Tesa Hite 400/700 is a specially designed Height Gauge model with manual displacement for workshop measurements where maintaining quality metrology under harsh environmental factors is a main concern. ...

Tesa Hite 400/700 is a specially designed Height Gauge model with manual displacement for workshop measurements where maintaining quality metrology under harsh environmental factors is a main concern. There is an optical reading system that takes accurate One dimensional readings with a least count of 0.1 microns (0.0001 mm) The control panel has an ergonomic design with Four interface themes and contextual based help which makes it easier for any user to operate instrument. The provision of spheroidal cast iron base provides rigid support to the instrument structure and the air cushion produced by the pump at the base makes it possible to move and handle the equipment comfortably. The measuring results can be transferred to computer or other peripheral unit via a link connector cable or through wireless connection.

Hybrid control panel with both manual pressing and touch screen operation, Fine adjustment and carriage locking screw, CI base, Quick center technology to detect exact culmination point.
