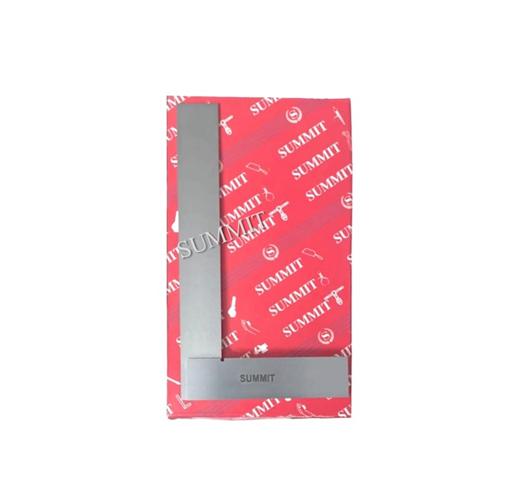

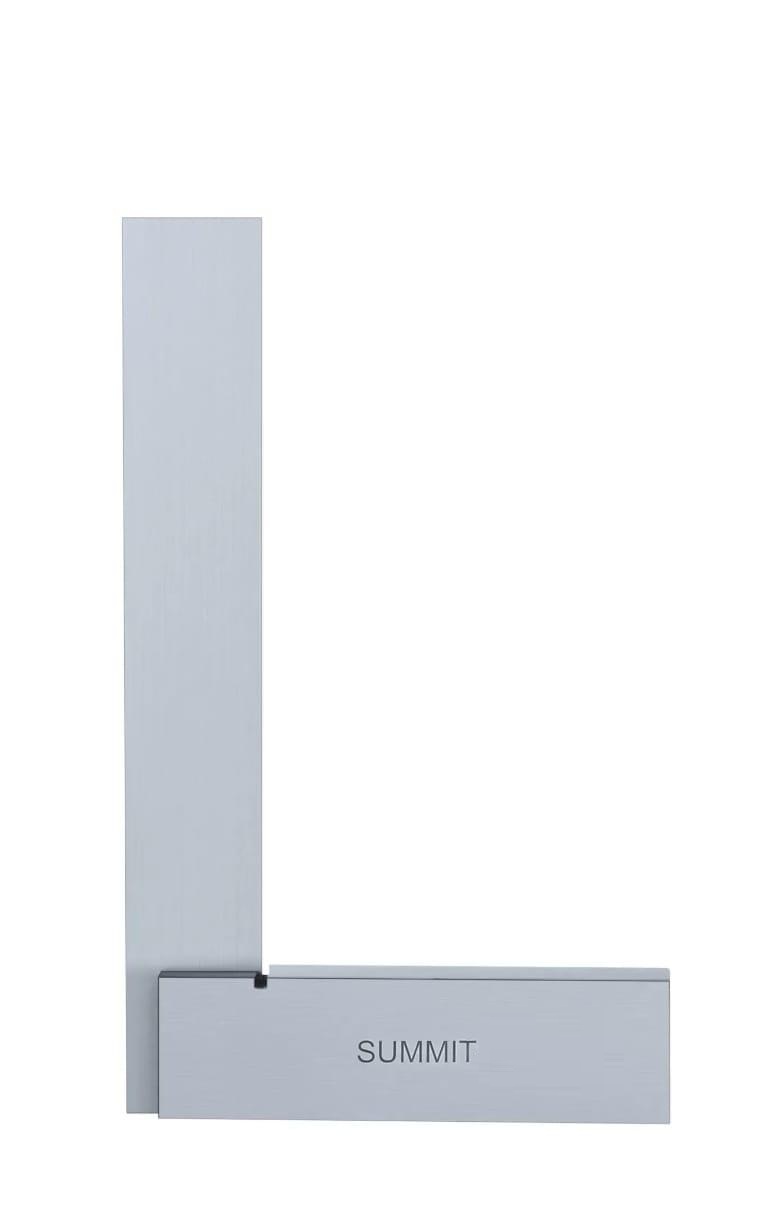

SUMMIT Stainless Steel Try Square 250 x 160 mm

SUMMIT Steel Square have accurate right angles both inside and outside. Hardened spring steel blades are permanently fixed to the stock by means of tapered self locking rivets which ensure complete rig...

SUMMIT Steel Square have accurate right angles both inside and outside. Hardened spring steel blades are permanently fixed to the stock by means of tapered self locking rivets which ensure complete rigidity. There is a groove on the inner corner of the stock to add in clearance of burr or dirt. Crafted from selected steel with hardened blade, these squares have accurate right angles both on the inside and out. Both blade and stock are accurately ground which ensures straightness and parallelism. Range of squares comes in handy for setting up and checking machinery, carpenter’s squares or using as a try square when marking joints or testing faces and edges. Material: Selected ground steel - finest quality heavy stock Blade: Hardened steel - accurately ground Fixing: Tapered self-locking rivets - permanently fixed Right Angle: Accurate inside & outside both faces Inner Corner: Groove for burr & dirt clearance Certificate: Inspection Card + Unique ID - every square

Ws Grade Accuracy:40 microns (up to 8") Aa Grade Accuracy:Squareness - Under 26 microns (up to 12") Stock Parallelism - Under 10 microns Range: 2-40 inches, all size upto 100 inch available on request
