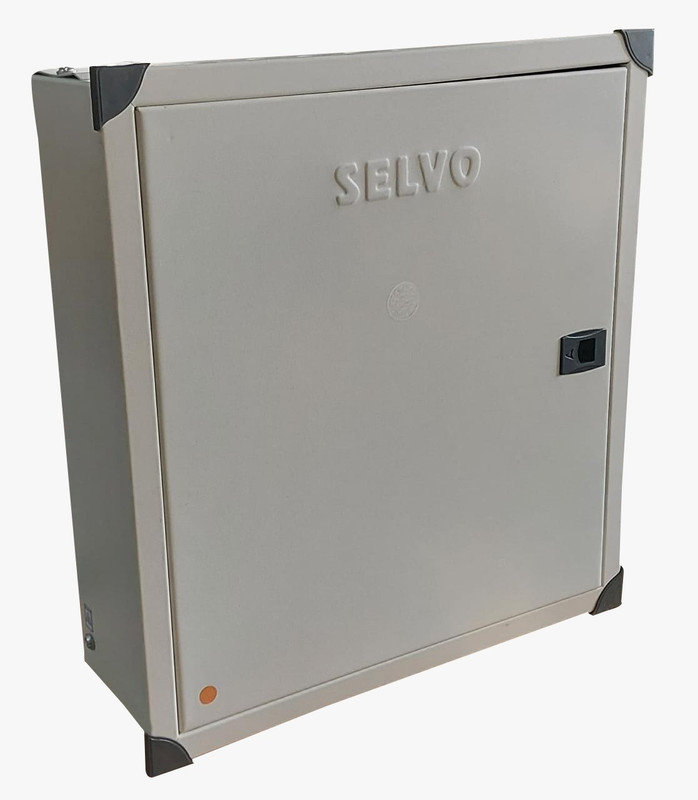

SELVO GSELTPS11064 8 Way IP43 Distribution Boards Three Phase

SELVO Presents 8 Way TPN Phase selector distribution board (with 1 pole 3 ways rotary fitted and are duly wired) Working: The distribution board is fitted with rotary switches and is duly wired, each r...

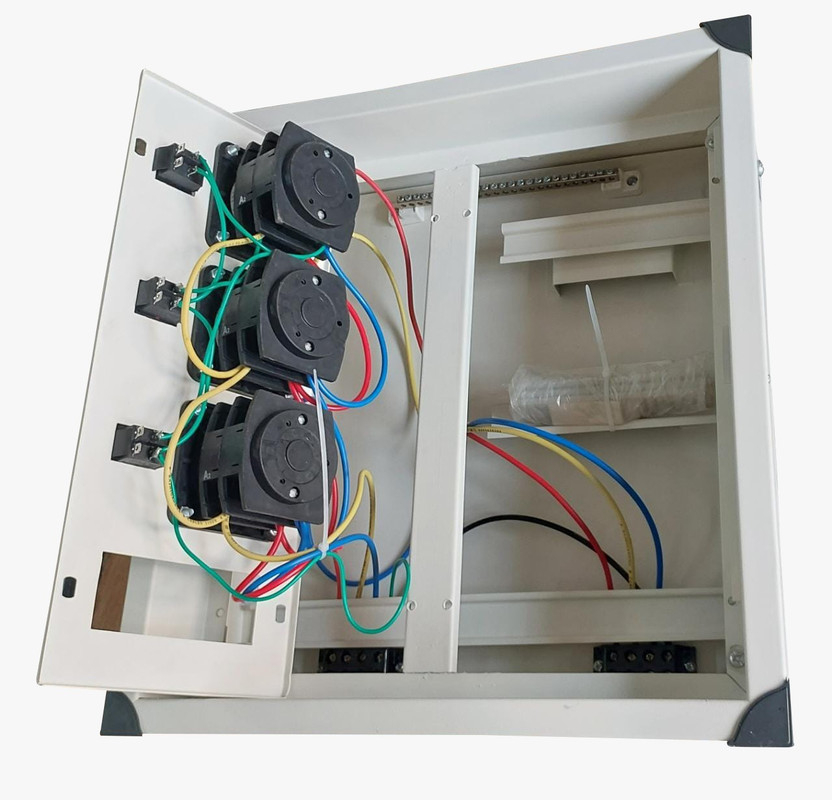

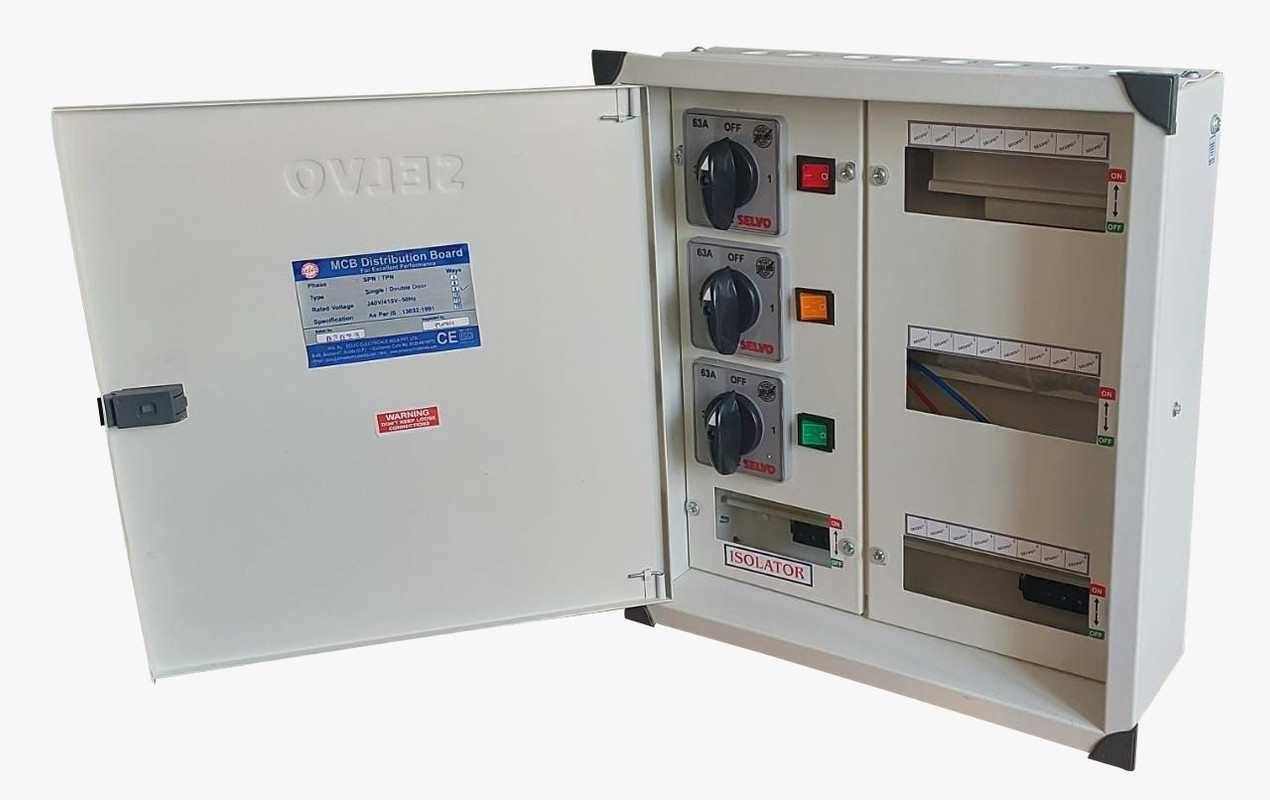

SELVO Presents 8 Way TPN Phase selector distribution board (with 1 pole 3 ways rotary fitted and are duly wired) Working: The distribution board is fitted with rotary switches and is duly wired, each rotary switch and indicator phase is linked with their corresponding output MCB which are connected to appliances.if there is a power cut in rotary switch 1 which is linked to the output 1 circuit containing MCBs, the user can rotate spindle/knob to another phase that has no power cut, so there will be continuity of power supply.This is similar for other remaining rotary switches.The incoming & outgoing rotary switches can be connected using connectors fitted inboard to make installation easier.The incoming wires can be connected to connector 1 fitted on left side and outgoing wires to load can be connected to connector 2 fitted on the right as shown.Made from 1.2 mm CRCA sheets seven tank phosphate process and powder coated.brass neutral & earth links.Flexibility of having 4+4 incomer

knockouts give for wire connections Earthing terminals on both sides of DB.Smooth and easy to operate door opening and closing with aesthetic knob and Inbuilt with 3x00A busbar & shockproof insulation
