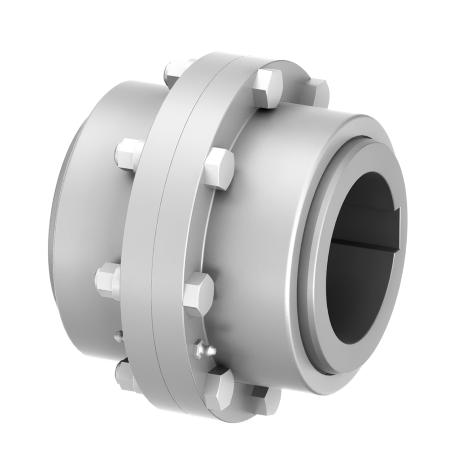

RINGFEDER 305 Gear Coupling XC2730 150000 Nm 2100 rpm

Gear Couplings TNZ ZCAK / ZCBK Type with limited end float The double cardanic versions RINGFEDER® TNZ ZCAK and RINGFEDER® TNZ ZCBK are equipped with a limitation of the end float. The limitation of th...

Gear Couplings TNZ ZCAK / ZCBK Type with limited end float The double cardanic versions RINGFEDER® TNZ ZCAK and RINGFEDER® TNZ ZCBK are equipped with a limitation of the end float. The limitation of the end float serves to axially locate a shaft that is mounted on sleeve bearings. he rotor of an electric motor with sleeve bearings can thus be aligned within a desired tolerance range via the coupling to the bearing of the driven machine, so that the rotor remains at its magnetic centre during acceleration of the driving machine. The limitation of the end float constrains the ability to compensate for angular and radial shaft misalignments. In contrast to the TNZ ZCAK with integrated O-ring, the TNZ ZCBK has screwed-on, separate O-ring supports.

Torsionally rigid gear coupling made of high-quality steel Very compact design results in a high-power density Compensates for angular, radial and axial shaft offset
