LPES International Coaxial Cable Transmission Surge Protection Device 5 to 10 kA 28-0616_0
Hover to zoom

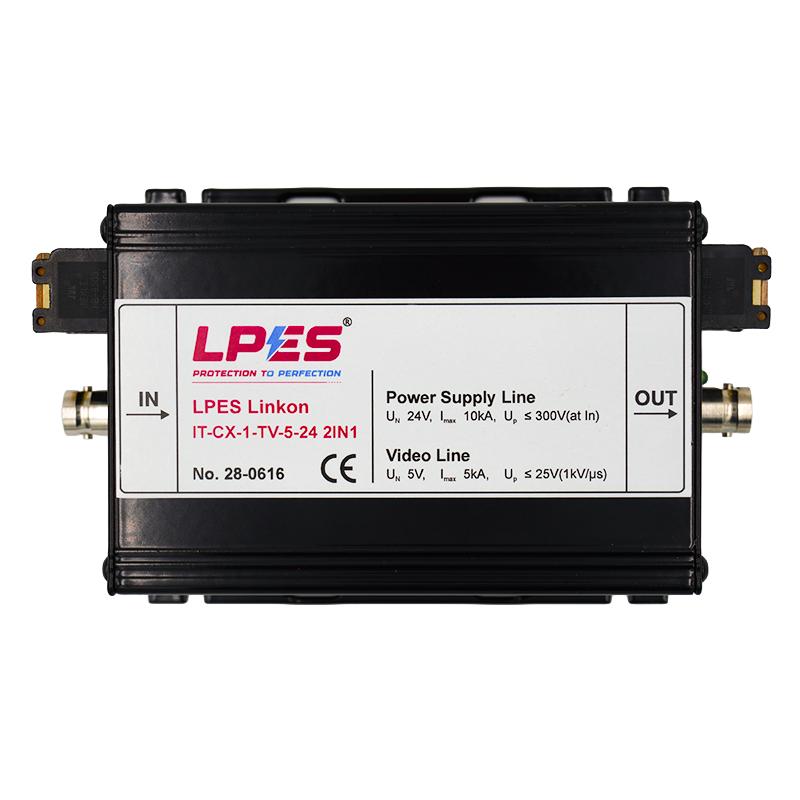

LPES International Coaxial Cable Transmission Surge Protection Device 5 to 10 kA 28-0616_0

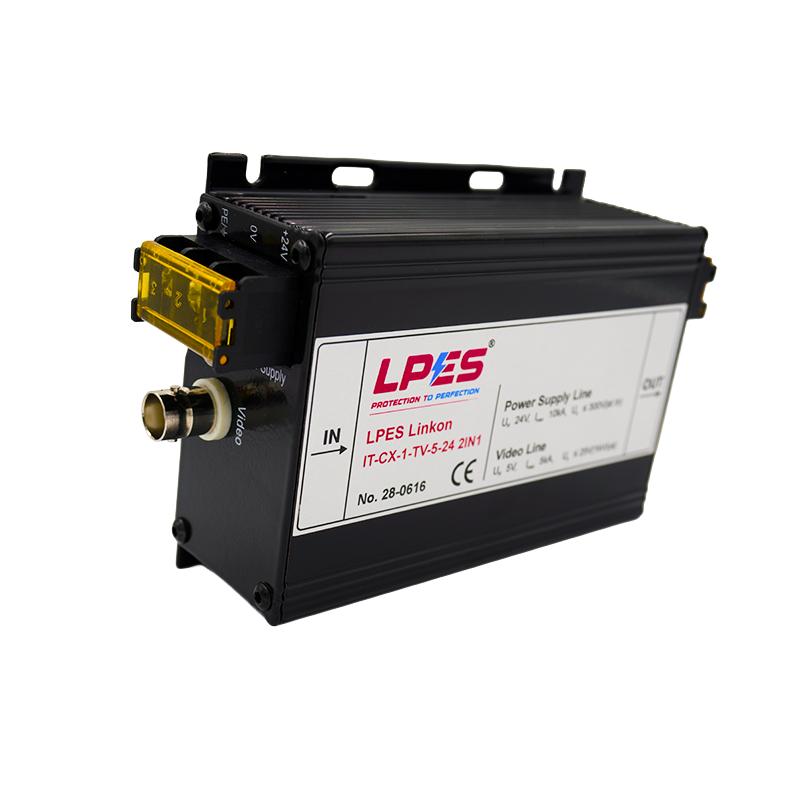

LPES International Coaxial Cable Transmission Surge Protection Device 5 to 10 kA 28-0616_1

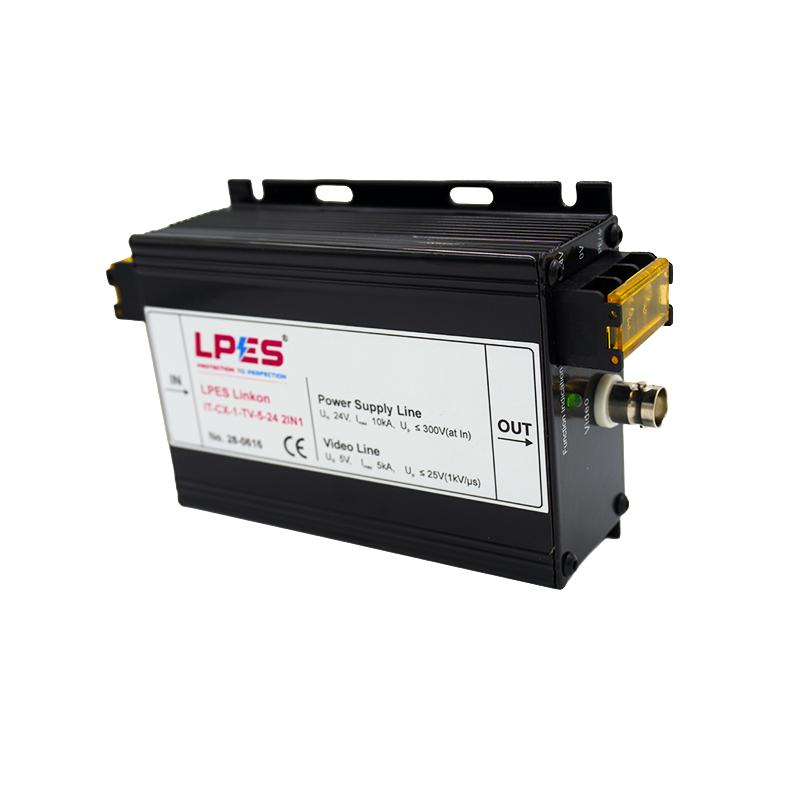

LPES International Coaxial Cable Transmission Surge Protection Device 5 to 10 kA 28-0616_2
LPES Linkon IT-CX-1-TV-5-24-48 2IN1 No.28-0616.pdf
Need help?

Share your requirement & we'll
call you back shortly.

LPES International Coaxial Cable Transmission Surge Protection Device 5 to 10 kA 28-0616

Copy link
-5%
₹3,472.86
/Piece
₹3,655.64
Inclusive of all taxes
Inclusive of all taxes
₹2,943.1 + ₹529.76 GST

Offers

Eligible for FREE SHIPPING. *T&C Apply
View
Eligible for FREE SHIPPING. *T&C Apply
View
Get GST invoice and save up to 18% on business purchases.
Avail trade credit through our lending partners. Know More
assured-delivery

Assured Delivery

assured delivery Assured Delivery
easy-order-cancellation

Easy Cancellation

easy-order-cancellation Easy cancellation
7_Days_return

7 Days Return

7 days return 7 Days return
7 days return

Payment Protection

7 days return Payment managed by L&T-SuFin
assured delivery

Assured Delivery

easy-order-cancellation

Easy Cancellation

7 Days Return

7 Days Return

7 days return

Payment Protection

Specifications

Maximum Discharge Current

5 to 10 kA

Brand

LPES International

Part No.

28-0616

Application

Coaxial Cable Transmission

Nominal Operating Voltage

5 V

Voltage Protection Level

≤ 25 V

Nominal Discharge Current

2.5 to 5 kA

Standard

IEC 61643-21

SPD Class

Class III

Response Time

≤1 to ≤100 ns

Connector Type

RJ45 Shield

Band Width

10 MHz

Connection (Input/Output)

BNC socket

Data Transmission Rate

16 Mbit/s

Earthing via

Earthing Screw

Enclosure Material

Aluminium

Insertion Lose

0.4 dB

Operating Temperature Range

-40 to 80 deg C

Power Input Mode

24 V

Test ID

BS V 2 IN 1/24 V

UNSPSC No.

39121634

Description

LPES Linkon IT-CX-1-TV-5-24 2IN1 is an integrated surge protection device for CCTV surveillance systems, designed to protect both 5 V video transmission lines and 24 V power supply lines. Installed in ...

Read More

LPES Linkon IT-CX-1-TV-5-24 2IN1 is an integrated surge protection device for CCTV surveillance systems, designed to protect both 5 V video transmission lines and 24 V power supply lines. Installed in series between the camera and monitoring equipment, it diverts lightning-induced surges and switching transients safely to earth before they reach sensitive cameras, DVRs, video receivers, or monitoring systems. The device features BNC socket video connection, terminal power connection, aluminum enclosure, fast response time, low insertion loss, and reliable 2-in-1 protection for outdoor and exposed CCTV installations. Suitable for security surveillance, commercial buildings, industrial monitoring, warehouses, campuses, transport infrastructure, and urban camera networks. Tested as per IEC 61643-21 / EN 61643-21 with CE and RoHS certification.

Read less

LPES Linkon IT-CX-1-TV-5-24 2IN1 is an integrated surge protection device for CCTV surveillance systems, designed to protect both 5 V video transmission lines and 24 V power supply lines. Installed in series between the camera and monitoring equipment, it diverts lightning-induced surges and switching transients safely to earth before they reach sensitive cameras, DVRs, video receivers, or monitoring systems. The device features BNC socket video connection, terminal power connection, aluminum enclosure, fast response time, low insertion loss, and reliable 2-in-1 protection for outdoor and exposed CCTV installations. Suitable for security surveillance, commercial buildings, industrial monitoring, warehouses, campuses, transport infrastructure, and urban camera networks. Tested as per IEC 61643-21 / EN 61643-21 with CE and RoHS certification.

Read More Read less

Key Features

2-in-1 CCTV surge protection for video and 24 V power lines; BNC video interface; 5 kA nominal discharge current; 10 kA max discharge current; fast response; aluminum body; IEC 61643-21, CE, RoHS.

2-in-1 CCTV surge protection for video and 24 V power lines; BNC video interface; 5 kA nominal discharge current; 10 kA max discharge current; fast response; aluminum body; IEC 61643-21, CE, RoHS.

Read More Read less

Country of Origin

India

LPES Linkon IT-CX-1-TV-5-24-48 2IN1 No.28-0616.pdf
