JS 100 mm Hand Lever Cast Iron Butterfly Valve BV01_0
Hover to zoom
JS 100 mm Hand Lever Cast Iron Butterfly Valve BV01_0
JS 100 mm Hand Lever Cast Iron Butterfly Valve BV01_1
Need help?
Call +91 8291 211 421
(9:15 AM - 6:15 PM from Monday - Friday)

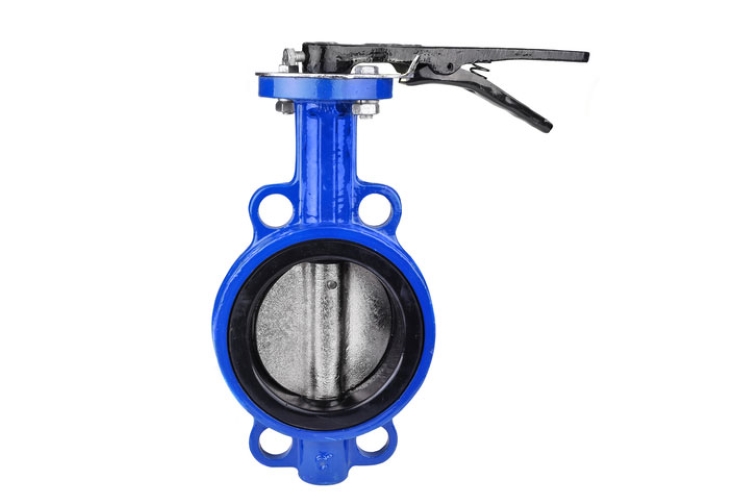

JS 100 mm Hand Lever Cast Iron Butterfly Valve BV01

Copy link

Offers

Get GST invoice and save up to 18% on business purchases.
Avail trade credit through our lending partners. Know More
assured-delivery

Assured Delivery

assured delivery Assured Delivery
7_Days_return

7 Days Return

7 days return 7 Days return
7 days return

Payment Protection

7 days return Payment managed by L&T-SuFin
assured delivery

Assured Delivery

7 Days Return

7 Days Return

7 days return

Payment Protection

Specifications

Brand

JS

Designation

BV01

Valve Size

100 mm

End Connection

Flanged

Material of Construction

Cast Iron

Actuation Type

Hand Lever

Pressure Rating

PN 10

UNSPSC No.

40141656

Description

Specification • Type of valve : Centric Disc Butterfly valve with Rubber Lined Body • Body type : Single Piece, Short wafer or wafer lugged• Seal type : Integrally bonded, replaceable • Size Range & Pr...

Read More

Specification • Type of valve : Centric Disc Butterfly valve with Rubber Lined Body • Body type : Single Piece, Short wafer or wafer lugged• Seal type : Integrally bonded, replaceable • Size Range & Pressure Rating : DN 40 to DN300 (PN10) & DN50 to DN600 (PN16)• Operating Temperature Range : -30°C to 130°C (Depending on MOC) • Seal leakage performance : Tight Shut off • Operation : Hand lever operation – DN40 – DN300 Worm Gear operation - DN150 - DN600 Electrical / Pneumatic actuator operation – optional Standards • General Design : BS EN 593 / API 609 / IS 13095 • Valve Face to Face : ISO 5752 • Top Flange Mounting : ISO 5211 • Valve Inspection & Testing :API 598 / IS 13095 • Flange Standard Conformity BS/EN/ANSI/DIN/IS

Read less

Specification • Type of valve : Centric Disc Butterfly valve with Rubber Lined Body • Body type : Single Piece, Short wafer or wafer lugged• Seal type : Integrally bonded, replaceable • Size Range & Pressure Rating : DN 40 to DN300 (PN10) & DN50 to DN600 (PN16)• Operating Temperature Range : -30°C to 130°C (Depending on MOC) • Seal leakage performance : Tight Shut off • Operation : Hand lever operation – DN40 – DN300 Worm Gear operation - DN150 - DN600 Electrical / Pneumatic actuator operation – optional Standards • General Design : BS EN 593 / API 609 / IS 13095 • Valve Face to Face : ISO 5752 • Top Flange Mounting : ISO 5211 • Valve Inspection & Testing :API 598 / IS 13095 • Flange Standard Conformity BS/EN/ANSI/DIN/IS

Read More Read less

Key Features

Material of Construction (MOC)• Body : C.I / SG Iron• Disc : SG Iron, CF8, CF8M• Seal : EPDM / NITRILE• Shaft : AISI 410

Material of Construction (MOC)• Body : C.I / SG Iron• Disc : SG Iron, CF8, CF8M• Seal : EPDM / NITRILE• Shaft : AISI 410

Read More Read less

Country of Origin

India

Shipped by
L&T-SuFin
Sold by
JS ENGINEERING

0.0/5

How is the score calculated?

L&T-SuFin determines this score through regular monitoring of the seller's performance based on key parameters like:

Rating given
by buyers

Quality of order
servicing

RFQ
performance*

Quality of
catalogue

*cumulative score of RFQ response time, no of RFQs responded to

View more sellers

Click on ‘Request Quote for Bulk’ button to enter your requirements like quantity, expected delivery date, pin code and submit
Receive and compare quotes from multiple sellers
Accept the best quote to confirm your order
Note: Sellers respond to a quote in 24-48 hours. You will be notified via e-mail/SMS/WhatsApp.
To know how to raise RFQ for more than one product, Please click here
Need help?
Call +91 8291 211 421
(9:15 AM - 6:15 PM from Monday - Friday)

Compare With Similar Items

  • products

    JS 100 mm Hand Lever Cast Iron Butterfly Valve BV01

    Price on request
    Current Product
    Sold by JS ENGINEERING
    Coimbatore, TN

    JS

    BV01

    100 mm

    Flanged

    Cast Iron

    Hand Lever

    PN 10

  • products

    JS 100 mm Hand Lever Cast Iron Butterfly Valve BV01

    Price on request
    Product Match: 85%
    Sold by JS ENGINEERING
    Coimbatore, TN

    JS

    BV01

    100 mm

    Flanged

    Cast Iron

    Hand Lever

    PN 16

  • products

    AIRA 100 mm Hand Lever Cast Iron Butterfly Valve BV01

    Price on request
    Product Match: 71%
    Sold by AIRMAX N AIRA EUROMATIC
    Thane, MH

    AIRA

    BV01

    100 mm

    Flanged

    Cast Iron

    Hand Lever

    PN 16

  • products

    Nupro 40 mm Hand Lever Cast Iron Butterfly Valve BV01

    Price on request
    Product Match: 42%
    Sold by NUPRO ENGINEERING SYNDICATE PRIVATE LIMITED
    Howrah, WB

    Nupro

    BV01

    40 mm

    Wafer

    Cast Iron

    Hand Lever

    PN 1

  • products

    MASQ 4 inch Lever Cast Iron Butterfly Valve BV01

    Price on request
    Product Match: 28%
    Sold by MASQ ENGINEERS
    Ahmedabad, GJ

    MASQ

    BV01

    4 inch

    Wafer

    Cast Iron

    Lever

    16 kg/cm2

View All Specifications
