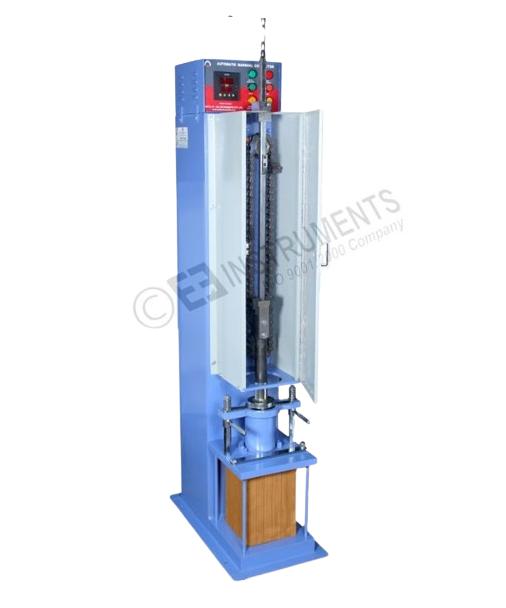

EIE Steel Automatic Marshall Compaction Pedestal

It is a motor driven mechanical compactor useful for compaction into 100 mm dia moulds. It is fitted with a compaction rammer of 98.5mm dia, weighing 4.535 kg. with a free fall of 457 mm. The rammer as...

It is a motor driven mechanical compactor useful for compaction into 100 mm dia moulds. It is fitted with a compaction rammer of 98.5mm dia, weighing 4.535 kg. with a free fall of 457 mm. The rammer assembly is provided with a ratchet and pawl arrangement to lift it from the top of the test sample. When the rammer reaches the required height, the pawl release the rammer which falls freely on test specimen. The release mechanism is connected by an arm moving up and down which is connected to a reduction gear coupled to the motor through another arm. Digital blow counter fitted to the compactor is used to set the number of blows. The Compactor is supplied completely with a wooden pedestal. Suitable to work on 230V, 50 Hz, AC single phase. Compactor for 6" diameter Marshal Mould is also available
